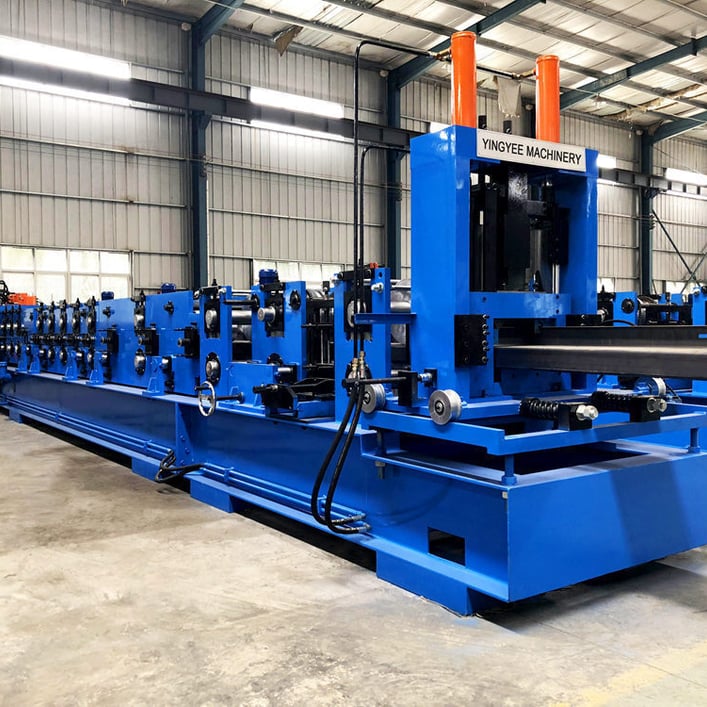

Quick Changeable C/Z Purlin Roll Forming Machine in China
- Condition
- New
- Supplier
- Roll Forming Machines China
- Country
- China
- Listing ID
- 10095
Request a Quote
To express an interest in this machine please submit the form below.
- Quick changeable C/Z purlin roll forming machine
- Model No.:YY–CZP–002
- Type:Roof Sheet Roll Forming Machine
- Warranty:12 Months
- Delivery Time:30 Days
- Material:Steel Coil, Galvanized, PPGI, Aluminum
- Speed:6-8m/min(including Punching And Cutting Time)
- Control System:Panasonic/Mitsubishi PLC
- Way Of Driven:Chain Transmission
- Cutting Mode:Hydraulic
- Material Of Cutting Blade:Cr12
- Voltage:At Customer’s Request
The C shaped purlin formed by Roll Forming Machine for C Purlin has excellent anti-bending property and are easy to install. Machine adopt cast iron structure, which will increase the strength of the machine.

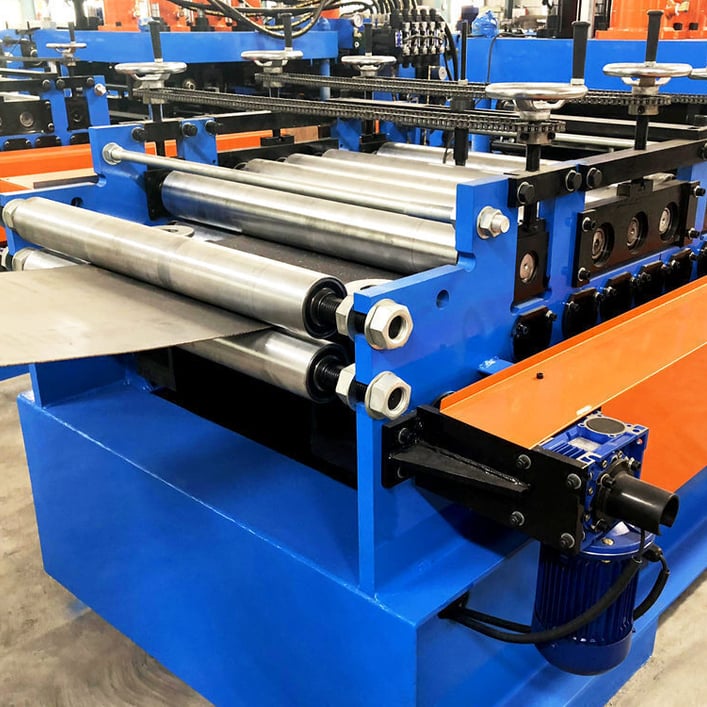

Working Flow: Decoiler – Feeding Guide – Main Roll Forming Machine – PLC Contol System – Hydraulic Punching- Hydraulic Cutting – Output Table
Matching material Steel coil, Galvanized, PPGI, Aluminum Material thickness range According to drawings Main motor power 18KW Forming speed 6-8m/min (include punching and cutting time) Hydraulic power 5.5KW Quantity of rollersAbout 18 Shaft diameter and material 70mm, material is 40CrMaterial of rollers 45# steel with chromed Way of driven chain transmission Controlling system PLCVoltage 380V/30Phase/50Hz Total weight About 10 tons Size of the machine L*W*H 10m*1.2m*1.6m
