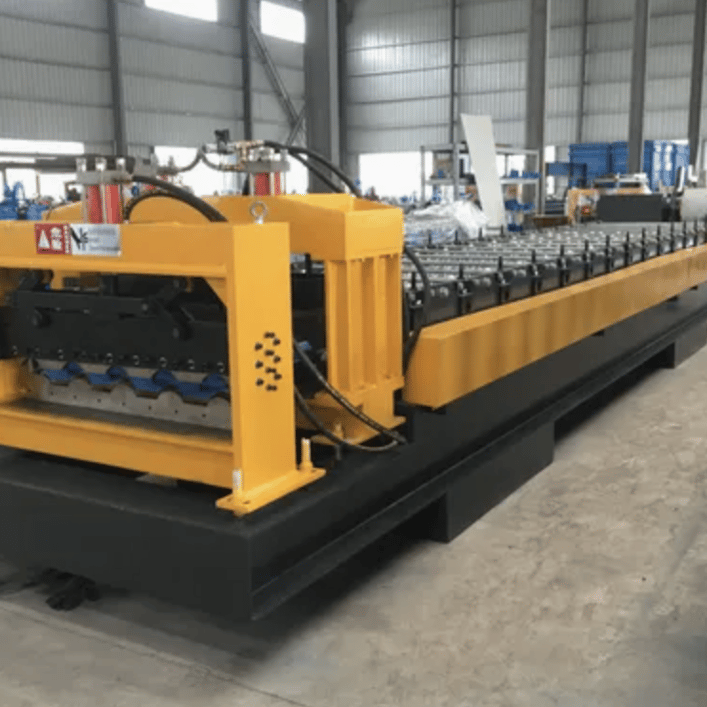

Rib Tile Roll Forming Machine Ethiopia
- Condition
- New
- Supplier
- Roll Forming Machines Ethiopia
- Country
- Ethiopia
- Category
- Listing ID
- 7566
Request a Quote
To express an interest in this machine please submit the form below.
| Size | 6000*1500*1600mm |
| Weight | 6500KGS |
| Motor Power | 7.5KW |
| Hydraulic Power | 5.5KW |
| Voltage | 380V/50HZ/3PH |
| Forming Steps | 13steps |
| Processing Speed | 4-6m/min |
| Thickness | 0.3mm~0.6mm |
| Feeding Material Width | 1000mm; |
| Effective Width | 840mm |
| Height of Roofing | 38mm |
A rib tile roll forming machine is designed to produce metal roofing sheets with a ribbed profile, commonly used for roofing applications due to its durability, water-resistance, and ease of installation. Here’s a quick breakdown of its main features:

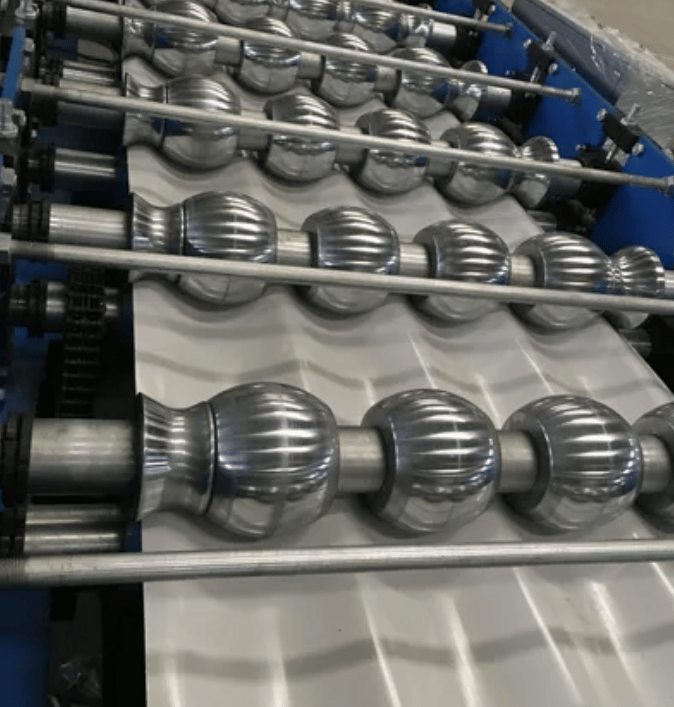

- Profile: The machine creates ribbed profiles that enhance the strength and appearance of the roofing sheets, offering a modern and sleek finish. The profile is often customizable to meet specific structural or aesthetic requirements.
- Material Compatibility: This machine can typically process materials such as galvanized steel, aluminum, and other coated steel variants, allowing for flexibility depending on the specific project or climate requirements.
- Automation: Many rib tile roll forming machines come with automated controls for easy operation, usually through a PLC system. This makes it possible to adjust settings for different lengths and specifications efficiently.

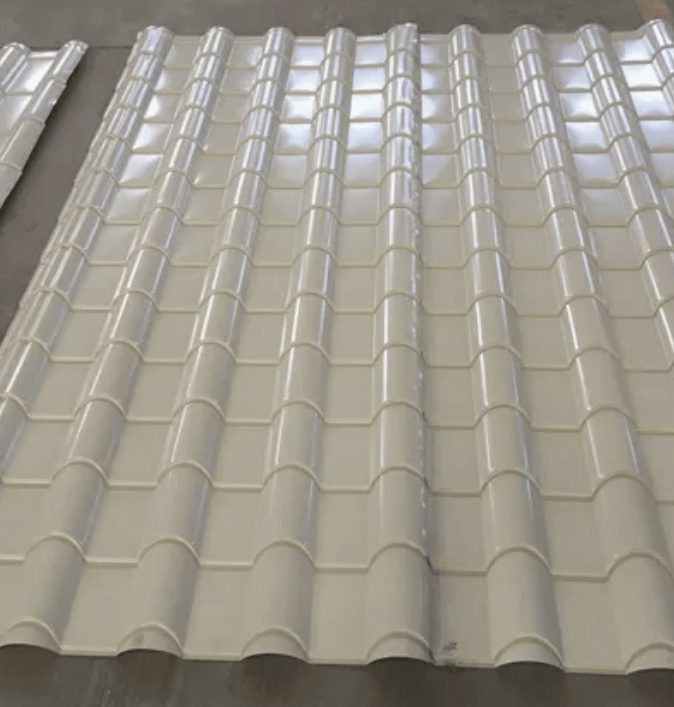

- Applications: Ribbed roofing sheets produced by these machines are widely used in residential, commercial, and industrial buildings, particularly in regions requiring durable roofing solutions.
- Customizability: The machine settings can be tailored to produce sheets with varying rib heights, thicknesses, and lengths, suiting diverse needs and compliance standards across different markets
