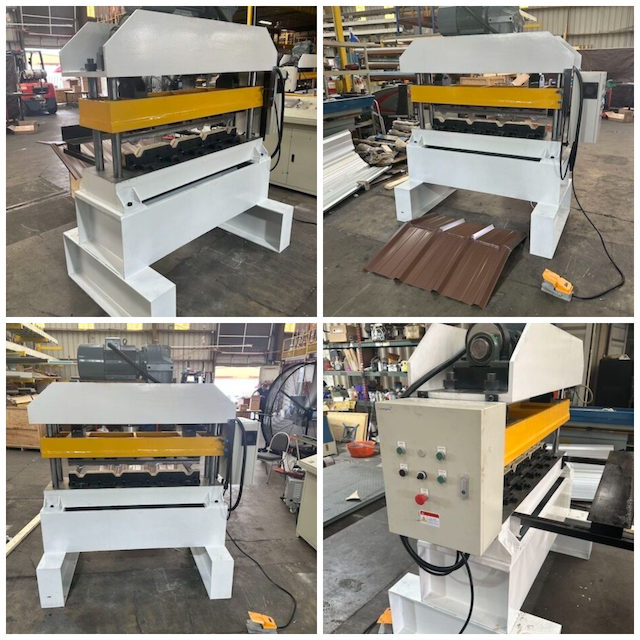

Ridge Cap Forming and Bending Machine USA

The Ridge Cap Forming and Bending Machine is a specialized metal fabrication system designed to produce ridge caps efficiently and accurately. Ridge caps are essential components in metal roofing, providing the finishing touch at the roof peak to prevent water infiltration and enhance the structure’s durability. This machine is specifically tailored for operations in the USA, ensuring compliance with local industrial power standards and sheet metal specifications.

With its high-speed Electric Cam Press, foot switch operation, and manually adjustable depth control, this machine is built to handle various pitches and profiles, including PBR and AG panel profiles. It accommodates materials ranging from 22-gauge to 29-gauge and maintains a consistent ridge cap production speed of four ridge caps per minute.

This machine is ideal for metal roofing manufacturers, contractors, and fabrication shops looking for an efficient and reliable ridge cap production solution.

Machine Specifications

Machine Description

1. Electric Cam Press for High Precision

The Electric Cam Press provides reliable, consistent force for bending and forming ridge caps, ensuring accurate shaping every time. This mechanism allows for smoother operation with minimal wear, extending the machine’s lifespan and reducing maintenance downtime.

2. Manually Adjustable Depth Control for Different Pitches

This machine is designed to adjust for various roof pitches manually, accommodating different roofing angles with ease. The flexibility to shift between 1:12 to 4:12 pitch ensures that fabricators can cater to various roofing projects with PBR and AG profiles.

3. Foot Switch Operation for Hands-Free Efficiency

The machine is equipped with a foot switch, allowing operators to focus on material handling and positioning while triggering the machine with ease. This feature enhances production efficiency and safety.

4. Handles a Range of Metal Thicknesses (22g - 29g)

The Ridge Cap Forming and Bending Machine supports 22-gauge to 29-gauge metal sheets, making it versatile for different roofing applications. This range allows manufacturers to produce ridge caps that meet the structural and aesthetic needs of different roofing systems.

5. Compact and Heavy-Duty Build

Despite its high production capacity, this machine maintains a compact footprint of 70” height × 70” width × 60” depth, making it suitable for various workshop spaces. Its robust 1,400-lb build ensures stability and longevity, even under continuous operation.

6. Optimized for U.S. Industrial Standards

With a 240V, 3-phase, 60Hz power requirement, this machine aligns with U.S. industrial electrical standards, ensuring smooth and reliable operation without the need for additional power conversions.

7. High-Speed Ridge Cap Production

Capable of producing four ridge caps per minute, this machine significantly enhances production efficiency, reducing labor time while maintaining consistency in quality. This speed is ideal for high-volume manufacturers who need fast turnaround times for their roofing components.

Benefits of Using the Ridge Cap Forming and Bending Machine in the USA

✔ Increased Production Efficiency: Produces up to 4 ridge caps per minute, ensuring rapid turnaround times for large-scale roofing projects.

✔ Consistent Quality: The Electric Cam Press provides accurate, uniform ridge caps with each cycle.

✔ Versatile Application: Compatible with PBR and AG panels, making it suitable for a wide range of metal roofing projects.

✔ User-Friendly Operation: Foot switch activation and manually adjustable pitch control enhance ease of use.

✔ Compact & Heavy-Duty Design: Stable and durable with a small footprint, making it ideal for fabrication shops of various sizes.

✔ Optimized for the U.S. Market: Designed for 240V, 3-phase, 60Hz power, ensuring seamless integration into U.S. industrial settings.

Frequently Asked Questions (FAQs)

1. What type of materials can this machine process?

This machine is designed to work with 22-gauge to 29-gauge metal sheets, including galvanized steel, aluminum, and coated metal sheets used in roofing applications.

2. What profiles does this machine support?

It supports PBR and AG panel profiles, which are commonly used for metal roofing applications in the USA.

3. What is the maximum roof pitch this machine can handle?

The machine accommodates pitches ranging from 1:12 to 4:12, making it suitable for a variety of roof designs.

4. How fast can this machine produce ridge caps?

The machine has a production speed of 4 ridge caps per minute, allowing manufacturers to achieve high output levels efficiently.

5. How is the machine operated?

It is operated via a foot switch, allowing hands-free activation while positioning the material.

6. What are the machine’s dimensions?

The machine has a height of 70 inches, a width of 70 inches, and a depth of 60 inches, making it compact yet robust.

7. How much does this machine weigh?

The machine weighs 1,400 lbs, ensuring stability during operation.

8. What power supply does this machine require?

It operates on 240V, 3-phase, 60Hz, which is standard for industrial applications in the USA.

9. Can I adjust the ridge cap depth?

Yes, the machine comes with a manually adjustable depth control to accommodate different ridge cap pitches.

10. Is the machine suitable for small-scale operations?

Yes, its compact size and versatile operation make it ideal for both small-scale workshops and high-production manufacturing facilities.

Conclusion

The Ridge Cap Forming and Bending Machine is an essential asset for any metal roofing manufacturer, contractor, or fabrication shop in the USA. With high-speed production, versatile material compatibility, and efficient operation, this machine streamlines ridge cap manufacturing while maintaining quality and precision.

Whether you’re a small business or a large-scale roofing manufacturer, this machine provides the reliability and efficiency needed to meet growing market demands.

For more details or to request a quote, feel free to contact us today!
