Ridge Cap Roll Forming Machine Philippines

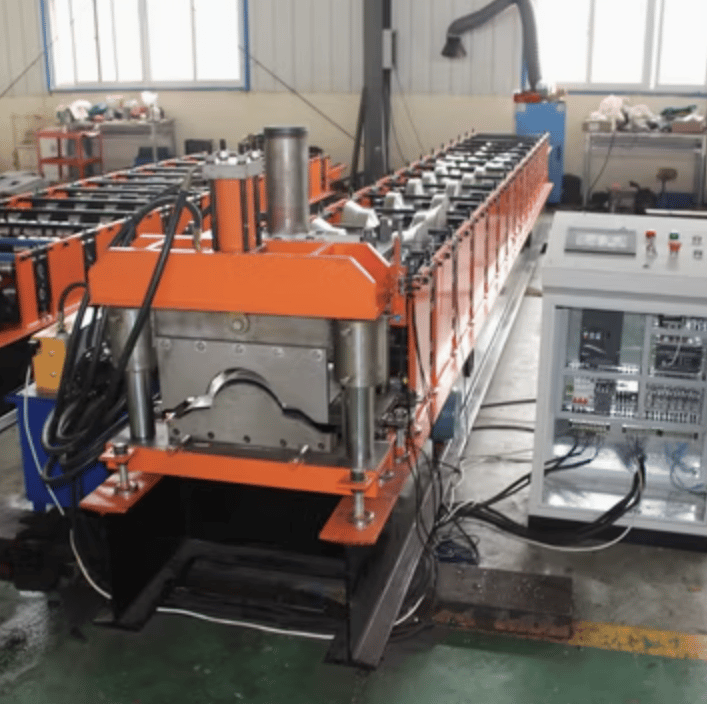

The ridge cap roll forming machine is an advanced piece of equipment engineered to produce high-quality ridge caps in various profiles, sizes, and materials. The machine is typically designed with features that ensure precision, durability, and consistent performance. It is equipped with automated systems for smooth operations and minimal human intervention.

Key Features

• Automation: Controlled by a Programmable Logic Controller (PLC) for accurate production and ease of use.
• High-Speed Production: Ensures efficient manufacturing with minimal waste.
• Customization: Capable of producing different ridge cap profiles to suit various roofing designs.
• Durability: Constructed from robust materials to withstand continuous operations in industrial settings.
• Ease of Maintenance: Designed with accessible components for quick and straightforward maintenance.

Specifications

General Specifications

• Machine Type: Ridge Cap Roll Forming Machine
• Control System: PLC with touch screen interface
• Material Thickness: 0.3mm to 0.8mm (customizable as per requirements)
• Material Types: Galvanized steel, color-coated steel, aluminum, or stainless steel
• Power Supply: 220V/380V/415V, 50Hz/60Hz (customizable based on country requirements)

Mechanical Specifications

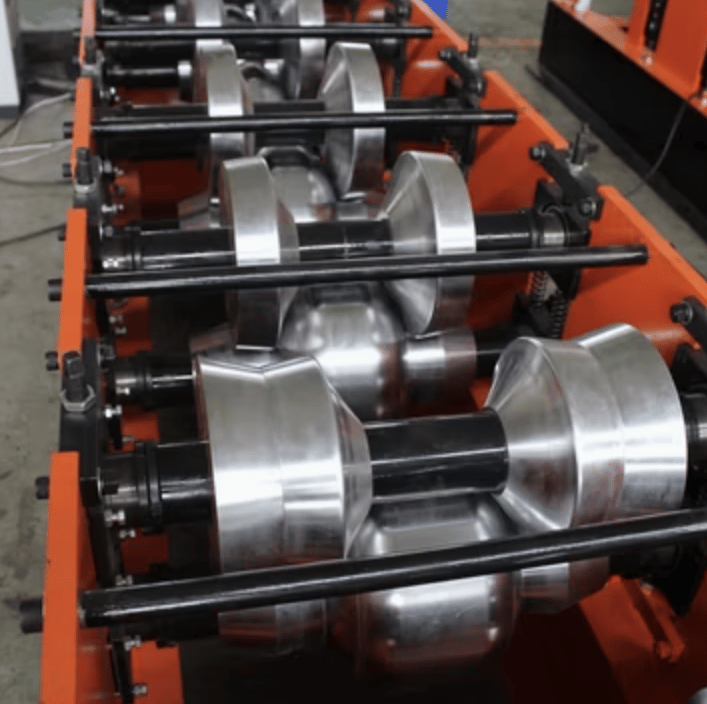

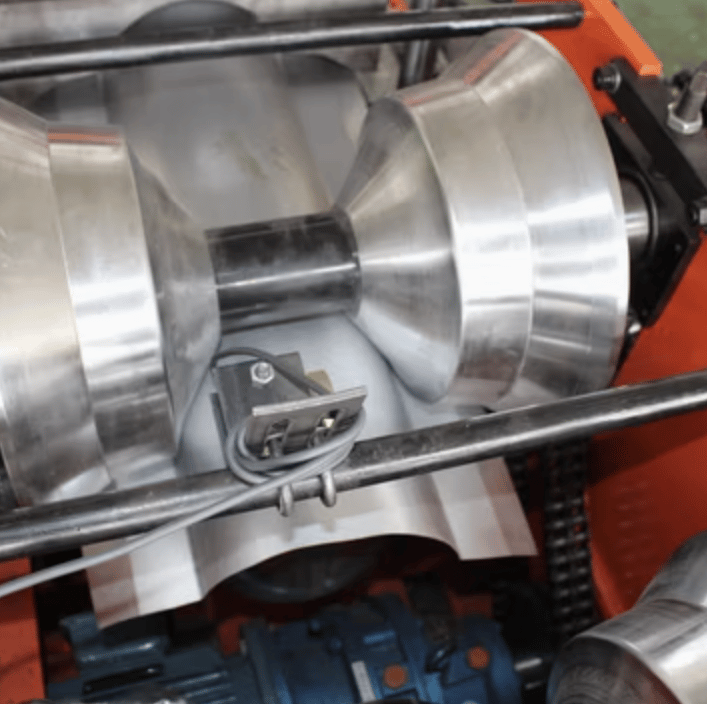

• Roller Materials: High-grade steel (45# steel or GCr15), heat-treated and chrome-plated
• Roller Stations: 10–18 stations (depending on profile design)
• Frame Structure: Heavy-duty steel welded structure
• Cutting System: Hydraulic cutting system with precision tolerance
• Motor Power: 5kW to 15kW (depending on production speed and capacity)
• Production Speed: 10–20m/min (adjustable)
• Machine Dimensions: Approximately 8m x 1.5m x 1.2m
• Machine Weight: 4–7 tons (depending on configuration)

Additional Features

• Hydraulic Decoiler: Holds and unwinds the coil automatically
• Automatic Stacker: For easy collection of finished products
• Safety Guards and Enclosures: Ensure operator safety during production
• Profile Customization: Adjustable rollers to create various ridge cap designs
• Coil Feeding System: Smooth feeding mechanism to avoid material deformation

Question and Answer Section

1. What are the typical applications of a ridge cap roll forming machine?

The ridge cap roll forming machine is used in the roofing and construction industries to manufacture ridge caps for residential, commercial, and industrial buildings. Ridge caps provide a secure and aesthetic finish to roof joints, protecting them from water leakage, debris, and weather damage.

2. What materials can be processed using this machine?

The machine is versatile and can process galvanized steel, color-coated steel, aluminum, stainless steel, and other metal sheets within the specified thickness range (0.3mm to 0.8mm).

3. How can the profiles be customized?

The rollers in the machine are adjustable, and the PLC system allows for programming different designs. Custom molds or roller sets can be manufactured to meet specific customer requirements.

4. Is it easy to operate the machine?

Yes, the machine is designed with a user-friendly PLC control system that allows operators to set parameters such as length, profile type, and production speed. Training is minimal, and the system can be operated with basic technical knowledge.

5. What is the typical production capacity?

The production capacity varies based on the profile and material but generally ranges between 10–20 meters per minute.

6. What maintenance does the machine require?

Regular maintenance includes:

• Lubricating moving parts.
• Checking and tightening bolts.
• Ensuring proper alignment of rollers.
• Cleaning the machine to prevent buildup of dust or material residues.
• Periodically inspecting the hydraulic and electrical systems.

7. Can this machine produce multiple profiles?

Yes, with the addition of interchangeable roller sets or modifications to the existing rollers, the machine can produce various ridge cap profiles.

8. What optional extras are available with the machine?

Optional extras include:

• Hydraulic or motorized decoilers
• Automatic stackers
• Coil handling systems
• Safety guards for enhanced protection
• Remote PLC systems for easier monitoring and control

9. What factors should be considered before purchasing?

Buyers should consider:

• Required ridge cap profiles and sizes
• Material type and thickness
• Power supply compatibility
• Production capacity
• Available space for machine installation
• Maintenance and operational costs

10. What are the benefits of investing in a ridge cap roll forming machine?

• Increased production efficiency
• High-quality, consistent ridge cap output
• Reduced material wastage
• Cost savings in the long term due to automated operations
• Customization options to meet diverse market demands
