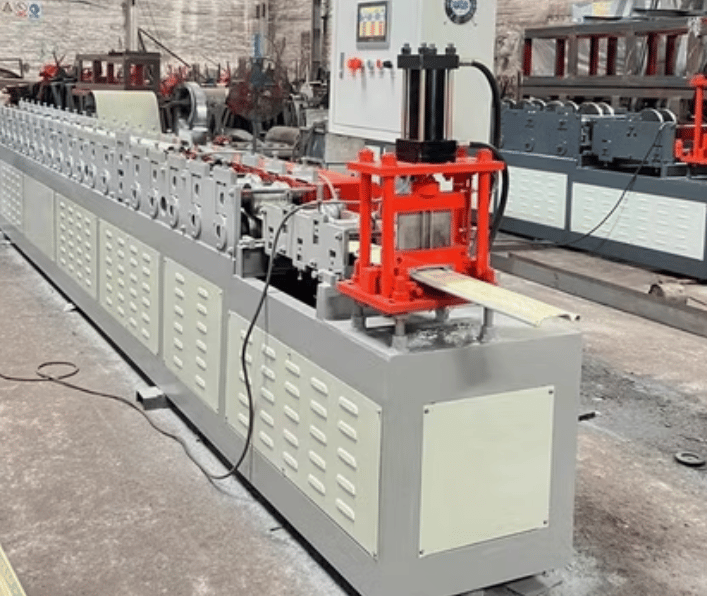

Roller Shutter Door Roll Forming Machine – Algeria
The Roller Shutter Door Roll Forming Machine – Algeria is a high-performance production line designed to manufacture metal roller shutter door slats for commercial, residential, and industrial applications. These slats are widely used in garage doors, shopfront shutters, security grilles, and warehouse entrances due to their strength, aesthetics, and easy operation.
At Machine Matcher, we supply new, fully automatic roller shutter door roll forming machines built to your exact profile drawing, slat type, and coil specifications. Our systems integrate precision-ground rollers, PLC control, servo feeders, hydraulic cutting, and optional punching and embossing systems for enhanced door design flexibility.
As Algeria’s urban and industrial sectors continue to grow — particularly in Algiers, Oran, and Constantine — local demand for roller shutters is increasing rapidly. Machine Matcher provides turnkey manufacturing lines that allow Algerian companies to produce roller shutter profiles locally, reduce import costs, and achieve international quality standards.
Machine Technical Specifications
| Specification | Details |
|---|---|
| Machine Type: | Roller Shutter Door Roll Forming Machine |
| Production Speed: | 10–25 m/min (adjustable) |
| Material Thickness Range: | 0.4–1.2 mm |
| Material Width Range: | 100–400 mm (depending on slat design) |
| Material Types: | Galvanized Steel (GI), Aluminum, Pre-painted Steel (PPGI), Stainless Steel |
| Material Yield Strength: | Up to 550 MPa |
| Roller Material: | GCr15 bearing steel, heat-treated and hard-chromed |
| Roller Surface Treatment: | Polished and chrome plated for smooth surface forming |
| Number of Forming Stations: | 12–24 stations (depending on slat geometry) |
| Roller Shaft Diameter: | 50–70 mm |
| Shaft Material: | 45# high-strength steel |
| Main Drive Type: | Gearbox or chain drive |
| Power (Algeria): | 380 V / 50 Hz / 3 Phase |
| Motor Power: | 7.5–15 kW |
| Cutting Method: | Hydraulic post-cut or flying shear system |
| Blade Material: | Cr12MoV high-strength tool steel |
| Control Type: | PLC + HMI touchscreen (Siemens / Delta / Mitsubishi) |
| Operating Mode: | Fully automatic with manual control option |
| De-coiling System: | 3–10 ton manual or hydraulic uncoiler |
| Punching/Notching System: | Optional servo or hydraulic punching unit |
| Embossing System: | Optional embossing roller for decorative surface patterns |
| Machine Frame: | 350–400 H-beam welded steel |
| Thickness of Frame Steel: | 16–20 mm |
| Profile Shape: | Flat, curved, perforated, or insulated roller shutter slats |
| Profile Width and Depth: | Width 77–100 mm; Depth 12–18 mm (customizable) |
| Length Tolerance: | ±1 mm/m |
| Safety Features: | Emergency stop, overload protection, full guard covers |
| Protective Covers/Guards: | Transparent acrylic safety covers |
| Overload Protection System: | Integrated into main drive and hydraulic systems |
Optional Add-ons and Upgrades
- Automatic stacking and collection system
- Hydraulic punching unit for ventilation slots
- Embossing or surface pattern roller
- Servo feeding and synchronization control
- Remote PLC diagnostics (Ewon or PLCRemote)
- Coil car and hydraulic coil tipper
- Dual-decoiler setup for continuous production
- Automatic lubrication and maintenance alert system
- Safety sound enclosure and dust extraction system
- Quick-change roller tooling for multiple slat designs
All systems are custom-built, CE-certified, and tested before shipping to Algeria with operation manuals, electrical diagrams, and test videos.
Roller Shutter Door Profile Description
Roller shutter door panels are formed from interlocking slats that roll up and down smoothly using a drum system. These panels are designed for strength, compactness, and visual appeal, and can be adapted for manual or motorized doors.
Common Slat Types
- Flat Slat: Standard shutter for shops and garages
- Curved Slat: Smooth rolling and quiet operation
- Perforated Slat: Allows ventilation and light transmission
- Insulated Slat: Filled with PU foam for thermal efficiency
Typical Dimensions
- Width per slat: 77–100 mm
- Profile height: 12–18 mm
- Material thickness: 0.4–1.2 mm
- Coil width: up to 400 mm
Material Options
- Galvanized Steel (GI): Cost-effective and strong
- Pre-painted Steel (PPGI): Aesthetic finish with corrosion resistance
- Aluminum: Lightweight and rustproof for coastal use
- Stainless Steel: Premium option for high-security installations
Industries and Applications in Algeria
Roller shutter doors are essential in many Algerian sectors, particularly in urban retail, logistics, manufacturing, and construction.
Key Industries
- Commercial shops and storefronts
- Residential garages and villas
- Industrial warehouses and factories
- Government buildings and infrastructure facilities
- Logistics centers and storage units
As Algeria continues its large-scale urban development and housing projects, roller shutter manufacturing has become one of the fastest-growing metal forming sectors. Local production ensures faster project delivery and higher profit margins.
Setup and Installation
Each machine is delivered pre-assembled, tested, and calibrated before shipping. Installation and commissioning can be completed quickly with Machine Matcher’s detailed manuals and video training.
Installation Steps
- Position the machine on a level concrete base.
- Connect the hydraulic and electrical systems.
- Load the first coil and test the feeding alignment.
- Calibrate roller positions and adjust cutting sensors.
- Run a test batch and verify profile accuracy.
Machine Matcher offers:
- Remote commissioning support (PLC link or video)
- On-site technician setup in Algeria or neighboring regions
- Operator and maintenance training
Maintenance and Support
Consistent maintenance ensures maximum uptime and precision output.
Daily
- Clean rollers and feeding guides.
- Check sensors and lubrication system.
Weekly
- Inspect hydraulic oil and filter cleanliness.
- Tighten bolts and chain connections.
Monthly
- Calibrate encoder for length accuracy.
- Check alignment and roller wear.
Annually
- Replace seals and cutting blades.
- Conduct complete electrical and hydraulic inspection.
Machine Matcher provides:
- Spare parts kits (rollers, blades, bearings, seals)
- Preventive maintenance plans
- Remote diagnostics and PLC support
- 24-hour global technical assistance
Machine Pricing
Pricing varies according to profile type, automation level, and configuration.
| Model Type | Configuration | Approx. Price (USD) |
|---|---|---|
| Basic Model | Manual uncoiler, post-cut, standard PLC | $50,000 – $75,000 |
| Mid-Range Model | Hydraulic uncoiler, punching unit, servo feeder | $75,000 – $110,000 |
| High-End Model | Full servo system, embossing, auto stacker | $110,000 – $160,000+ |
All quotations include:
- Profile design confirmation
- Pre-shipment test videos
- Export packaging and documentation
- Optional installation and training in Algeria
Countries & Markets Served
Machine Matcher supplies roller shutter door roll forming machines across:
- Algeria
- Tunisia
- Morocco
- Egypt
- Libya
- France
- United Arab Emirates
- United Kingdom and Europe
Each system meets CE and ISO standards and can be configured for 380 V / 50 Hz / 3 Phase power used in Algeria and North Africa.
Why Choose Machine Matcher
- Machines built 100% new to your shutter profile design
- CE-certified and ISO-compliant engineering
- Remote PLC monitoring and diagnostic support
- Local service partnerships across North Africa
- OEM-quality spare parts and fast logistics
- Full operator and maintenance training
- Pre-delivery inspection and test videos
- Offices in UK, USA, and Middle East for 24/7 support
Machine Matcher is your trusted partner for roller shutter door production, delivering superior forming quality, durability, and long-term value.
Frequently Asked Questions
Q1: What is a roller shutter door roll forming machine?
A: It’s an automated production line that shapes metal coils into interlocking shutter door slats, ready for assembly into rolling doors.
Q2: Can one machine produce different slat designs?
A: Yes. By using quick-change roller tooling or multiple forming cassettes, you can manufacture flat, curved, or perforated slats.
Q3: What materials are best for Algeria?
A: Galvanized and pre-painted steel are the most popular due to their balance of strength, durability, and cost. Aluminum is ideal for coastal areas.
Q4: How long does installation take?
A: Typical installation and testing require 3–5 working days, including training and commissioning.
Q5: Can the machine emboss or punch designs?
A: Yes. Machines can include punching and embossing units for decorative or ventilated shutter panels.
Q6: What after-sales support does Machine Matcher offer?
A: We provide remote troubleshooting, spare parts, preventive maintenance plans, and local service in North Africa.
