Roof Drip Edge Cold Roll Forming Machine in Florida

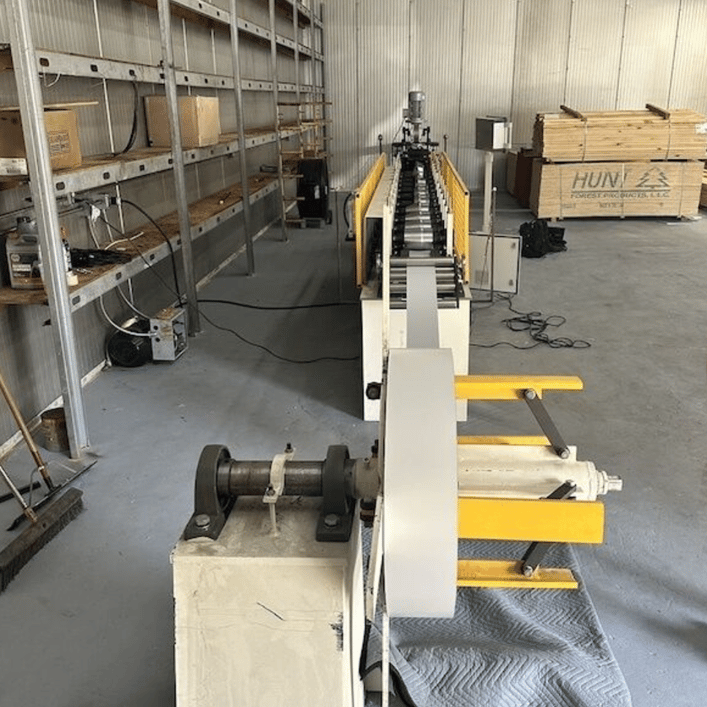

A Roof Drip Edge Cold Roll Forming Machine is a specialized piece of equipment designed to produce high-quality roof drip edges with precision and efficiency. These machines cater to the growing demand for roofing accessories in Florida, a region known for its dynamic construction industry and frequent hurricane-related roof repairs.

The machine is engineered to handle various materials, including aluminum, galvanized steel, and coated steel, making it versatile for different weather conditions and roofing styles prevalent in Florida. It offers custom profiles and dimensions to meet the diverse requirements of the roofing industry.

Specifications

• Roller Material: High-grade GCr15 steel with chrome coating for durability and smooth operation.
• Frame Structure: Heavy-duty steel frame, typically 18-24 mm thick, ensuring stability during operation.
• Punching and Notching: Hydraulic punching and notching for precise edge finishing.
• Cutting System: Hydraulic cutting system for clean and accurate cuts, supporting multiple material thicknesses.
• Motors:
  • Main Motor: Ranges between 5.5 kW and 7.5 kW, depending on production capacity.
  • Hydraulic Motor: 3 kW to 4 kW for auxiliary operations.
• PLC Control System: Fully automated control with a user-friendly touch-screen interface, supporting multiple language options.
• Machine Speed: Typically 12-20 meters per minute, with adjustable settings.
• Material Thickness: Capable of handling materials between 0.3 mm to 0.8 mm.
• Safety Features:
  • Emergency stop button.
  • Safety guards and enclosures.
  • Overload protection system.
• Dimensions: Approximately 6,000 mm x 1,500 mm x 1,200 mm (customizable).
• Weight: Around 5,000 kg depending on the configuration.

Additional Features

• Optional Extras:
  • Coil car tipper for easier material loading.
  • Stacker for automatic product stacking and efficient handling.
  • Remote PLC system for off-site monitoring and adjustments.
• Installation and Setup:
  • The machine comes pre-tested and requires minimal setup time.
  • On-site training provided for operators in Florida.
• Maintenance:
  • Regular lubrication of rollers and hydraulic systems.
  • Routine checks for wear and tear on cutting blades and motors.

Applications

• Roof drip edges for residential, commercial, and industrial buildings.
• Custom profiles for hurricane-resistant roofing in Florida’s coastal areas.
• Wide use in roofing projects for water diversion and protection from moisture damage.

Question and Answer Section

Q: What materials can the Roof Drip Edge Cold Roll Forming Machine handle?

A: The machine is capable of processing aluminum, galvanized steel, coated steel, and stainless steel, ranging from 0.3 mm to 0.8 mm in thickness.

Q: Is the machine suitable for Florida's roofing industry?

A: Absolutely. With customizable profiles and durable materials, it caters specifically to Florida’s needs, including weather resistance and high production capacity for large-scale projects.

Q: How does the machine ensure precision in profiles?

A: The PLC control system and hydraulic notching and cutting ensure every profile matches exact specifications, reducing waste and errors.

Q: Can the machine handle multiple profiles?

A: Yes, it can be configured to produce a variety of drip edge profiles, depending on the die set and roller design.

Q: What is the delivery timeline for Florida?

A: Delivery typically takes 6-8 weeks from order confirmation, including shipping and customs clearance.

Q: What maintenance is required for optimal performance?

A: Regular lubrication, cleaning of rollers, and inspections for wear and tear on hydraulic systems and cutting blades are essential for smooth operation.

Q: Is training provided for new operators?

A: Yes, on-site training is available to ensure operators in Florida can use the machine safely and efficiently.

Q: Can the machine be upgraded in the future?

A: Absolutely. You can add features like automated stackers, advanced PLC systems, or additional profile capabilities as your needs grow.
