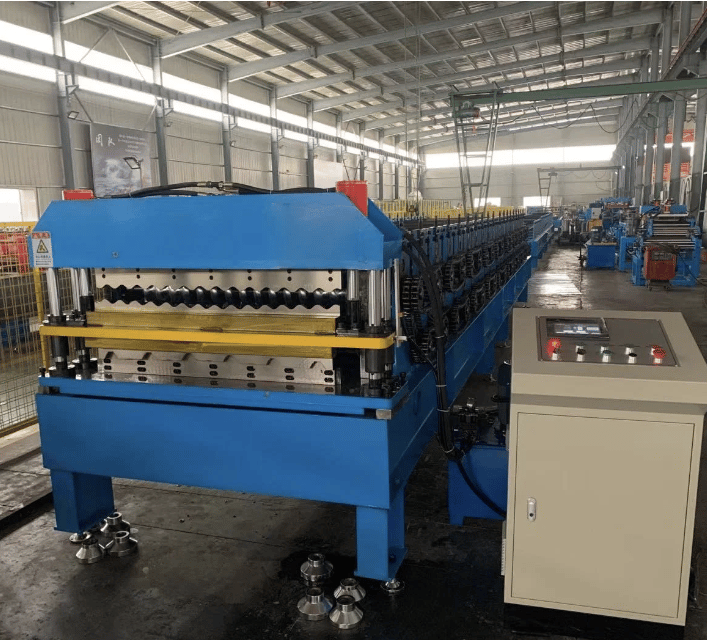

Roof Panel Roll Forming Machine in Lebanon
| passively de-coiling | |
| Load-bearing of de-coiler: | 5T |
| Frame of machine: | Welded with 350H beam steel |
| Thickness of wallboard: | 16mm |
| Guide feeding way of forming: | Side direction roller type |
| Forming machine type: | Wallboard and chain drive |
| Diameter of shaft: | ¢75mm |
| Chain: | 16A single row |
| Motor power of forming machine: | 5.5KW |
| Line speed of forming machine: | 18m/min |
| Steps of forming machine: | 16/14 |
| Roller material: | superior 45# steel forging |
| Thickness of Chrome plated on roller: | 0.05mm |
| Hydraulic station motor: | 4 KW, pressure: 8-12Mpa |
| Hydraulic station oil pump: | gear pump |
| Cutting blade material: | Cr12 |
| Cutting blade heat treatment: | HRC58ºC-60ºC |
| Rolling thickness: | 0.3-0.8 mm |
| Feeding width: | 1250mm |
| Precision of cut-to-length: | ±2mm |
| Electrical control system: | Computer adopts PLC, touch screen |
| Voltage: | 380V, 50Hz, 3 Phases. |
| Dimension of machine: | 6.8m x 1.7m x 1.5m |
