Roof Ridge Cap Roll Forming Machine India

Machine Description

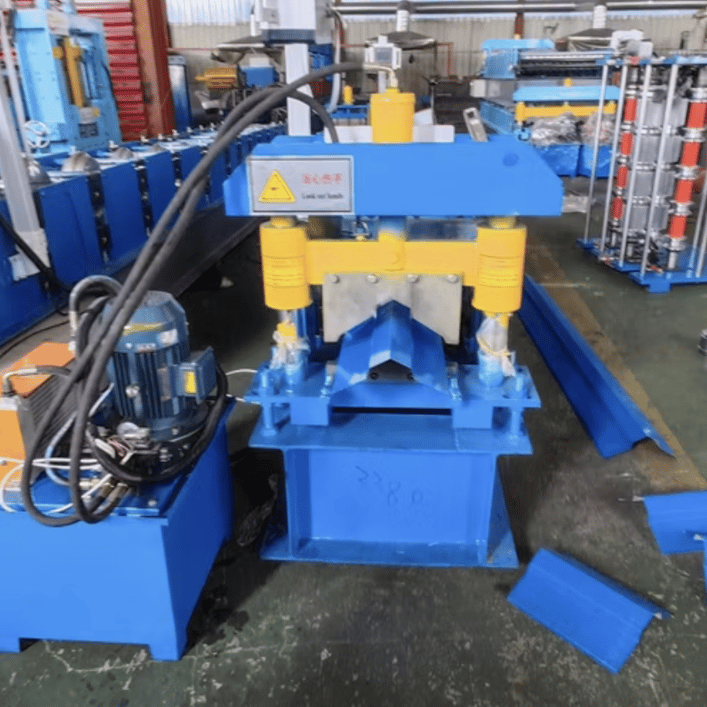

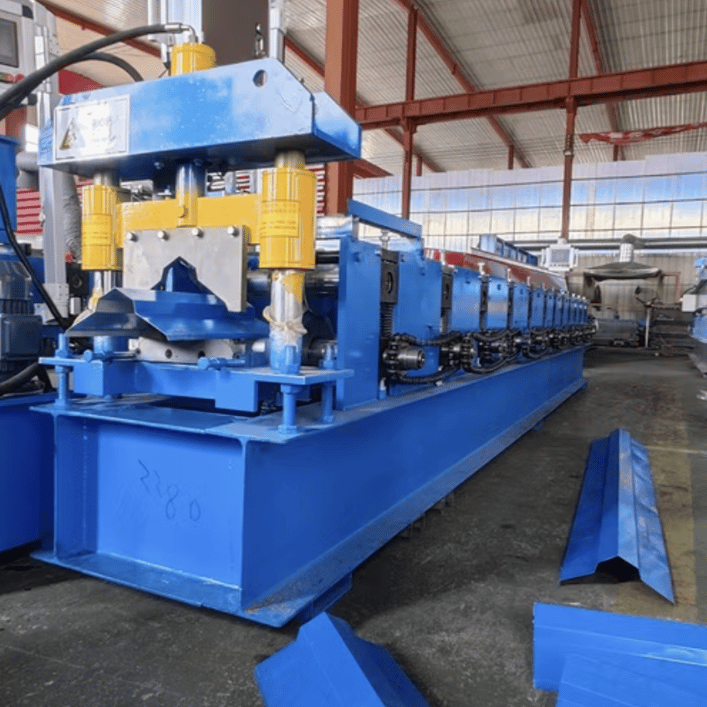

A roof ridge cap roll forming machine is specially designed to produce ridge caps, which are essential components in roofing systems. These caps cover the peak of the roof, joining two roof surfaces and preventing water from entering. Ridge caps also add to the aesthetic appeal of the roof, offering a neat, finished look.

The roof ridge cap roll forming machine takes metal coils, often made from materials like galvanized steel or aluminum, and forms them into ridge cap profiles through a series of rollers. Each roller station gradually bends and shapes the metal into the final profile. Modern machines are often equipped with programmable logic controllers (PLCs) to provide precise, automated control, enhancing efficiency and accuracy.

These machines are highly adaptable, allowing manufacturers to produce a range of ridge cap profiles based on customer requirements. They’re widely used by roofing product manufacturers, construction companies, and fabricators who need high-quality, consistent ridge caps.

Specifications

• Roller Materials: Typically made from high-quality steel, often chrome-plated for durability and to prevent wear.
• Roller Stations: Varies by model, generally between 10 to 20 stations, depending on the complexity of the profile.
• Frame Size: Reinforced steel frames designed for stability during high-speed production.
• Motor: Power output varies based on the machine’s size and production needs, generally between 5-10 HP.
• PLC System: Automated controls with a user-friendly interface for precision and customization.
• Cutting System: Hydraulic cutting mechanism to ensure accurate cuts with smooth edges.
• Profile Range: Can be customized for different ridge cap profiles, with variable widths and angles.
• Speed: Production speed typically ranges from 10-20 meters per minute, adjustable based on material and profile complexity.
• Material Gauge: Compatible with gauges between 0.3 mm to 0.8 mm, depending on customer needs.
• Safety Features: Equipped with guards and enclosures to protect operators.
• Extras: Options such as remote PLC control, stackers, and coil tippers for enhanced convenience and efficiency.

Question and Answer Section

Q1: What materials can a roof ridge cap roll forming machine work with?

• A: These machines commonly work with galvanized steel, aluminum, and occasionally pre-painted steel, depending on the customer’s preferences and requirements.

Q2: Can I customize the ridge cap profiles with this machine?

• A: Yes, most roof ridge cap roll forming machines allow for profile customization. The number of roller stations and adjustable settings make it easy to create profiles of different widths, angles, and shapes.

Q3: How do I control the machine’s operations?

• A: The machine is operated via a PLC system that allows users to program various settings, including speed, length, and cutting mechanisms. The user interface is typically easy to navigate, making it suitable for both experienced operators and newcomers.

Q4: What is the maintenance requirement for a roof ridge cap roll forming machine?

• A: Regular maintenance includes cleaning the rollers, lubricating moving parts, checking the PLC settings, and inspecting the hydraulic cutting system. Scheduled maintenance ensures prolonged machine life and consistent product quality.

Q5: Are safety features included?

• A: Yes, modern machines are equipped with safety guards and enclosures around critical areas. Emergency stop buttons are also typically included for added operator safety.

Q6: What production speed can I expect?

• A: Production speed varies, but most machines can produce 10 to 20 meters of ridge caps per minute. However, actual speed can be adjusted based on material, thickness, and profile complexity.

Q7: How is the machine installed and set up?

• A: Installation typically requires a flat, stable surface and connection to a compatible power supply. It’s advisable to have professional technicians handle the setup to ensure optimal operation.

This machine is ideal for businesses focused on producing high-quality, durable roofing components with consistent results. Whether for large-scale manufacturing or custom production, a roof ridge cap roll forming machine provides the precision and efficiency that companies in the roofing industry demand.
