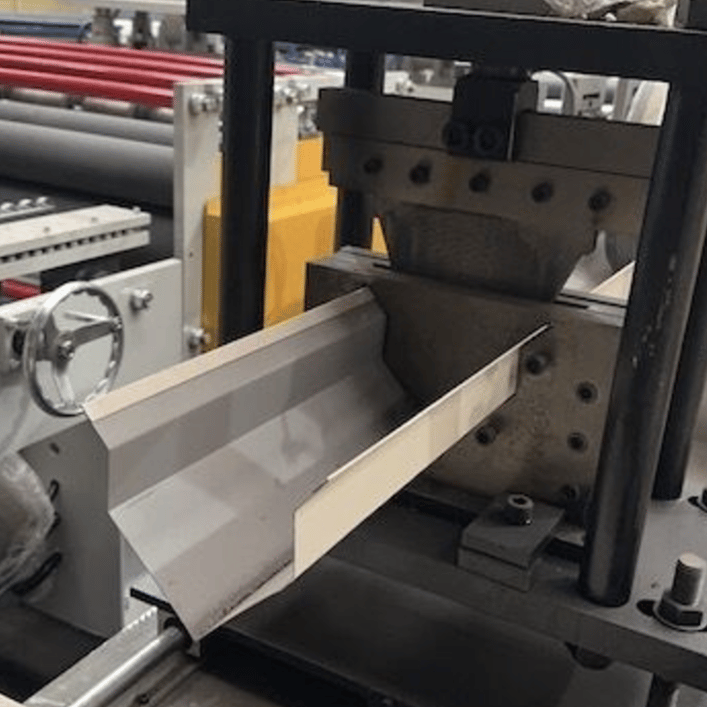

Roof Trim Roll Forming Machine in Canada

Roof trim roll forming machines are essential in manufacturing precise and high-quality roof trim profiles used in construction projects. These machines streamline the production process, ensuring consistency, efficiency, and durability of the profiles. The roof trims created by these machines serve critical roles, including weatherproofing, edge finishing, and aesthetic enhancement of roofs. In Canada, the demand for roof trim roll forming machines has risen due to increased construction activities and the focus on energy-efficient and durable building materials.

Machine Description

A roof trim roll forming machine is designed to produce various profiles of roof trims, such as drip edges, rake trim, or base flashing, from metal coils. It operates with advanced systems, offering precise cuts, smooth finishes, and high-speed production. The machine integrates automation to reduce labor costs and improve overall productivity.

Specifications

Below are typical specifications of a high-quality roof trim roll forming machine tailored for the Canadian market:

1. Material Compatibility:
   • Material: Galvanized steel, aluminum, pre-painted steel, and stainless steel.
   • Material Thickness: 0.3 mm – 0.8 mm (customizable as per requirements).
   • Coil Width: Up to 600 mm.
2. Roller System:
   • Material: High-grade chrome-coated steel (45# or GCr15).
   • Number of Rollers: 10–20 stations (depending on the profile).
   • Roller Diameter: 60 mm.
3. Cutting System:
   • Type: Hydraulic or servo-driven.
   • Material: High-strength steel with heat treatment for durability.
   • Cutting Accuracy: ±0.5 mm.
4. Motor and Drive System:
   • Main Motor Power: 5–15 kW (varies with machine size).
   • Hydraulic Power: 5.5 kW.
   • Drive Type: Chain or gearbox-driven (customizable).
5. Control System:
   • PLC (Programmable Logic Controller): Brand options include Siemens, Mitsubishi, or Delta.
   • Touchscreen HMI: Allows easy operation and customization.
   • Language Support: Multi-language options, including English and French.
6. Machine Speed:
   • Standard Speed: 10–15 m/min.
   • High-Speed Option: Up to 25 m/min.
7. Frame Structure:
   • Type: Welded steel frame for robust performance.
   • Frame Thickness: 16 mm–20 mm.
8. Safety Features:
   • Safety Guards: Enclosures to protect operators.
   • Emergency Stop: Quick shutdown in case of operational issues.
9. Optional Extras:
   • Automatic stacker for organized profile handling.
   • Coil car and hydraulic uncoiler for seamless coil feeding.
   • Remote PLC monitoring system for troubleshooting.

Features and Benefits

1. Precision and Consistency: Produces uniform profiles with tight tolerances, ensuring compatibility with Canadian building standards.
2. Customizability: Can produce a wide range of roof trims, including drip edges, J-trim, and base flashing.
3. High Durability: Built with premium-grade materials, ensuring long-term reliability.
4. Energy-Efficient: Designed for minimal power consumption, suitable for eco-conscious Canadian businesses.
5. Ease of Use: Simple PLC interface with intuitive controls makes operation hassle-free.

Application in Canada

• Residential Roofing: Roof trims for houses, ensuring protection against leaks and enhancing aesthetics.
• Commercial Roofing: Used in malls, offices, and other commercial spaces for functional and aesthetic purposes.
• Industrial Projects: Factories and warehouses benefit from robust trims for weatherproofing and structural integrity.

Frequently Asked Questions (FAQs)

1. What types of profiles can this machine produce?

This machine can produce various profiles such as drip edge, rake trim, J-channel, and base flashing. Custom profiles are also possible based on requirements.

2. What materials are compatible with this machine?

The machine works with galvanized steel, pre-painted steel, aluminum, and stainless steel, commonly used in Canadian roofing projects.

3. Can I customize the profile size?

Yes, the machine can be customized to produce profiles with specific dimensions according to your project requirements.

4. How much space does the machine require?

A typical roof trim roll forming machine requires a space of approximately 15 m x 3 m, depending on the machine model and additional components.

5. What is the lead time for delivery in Canada?

Delivery times vary but generally range between 8 to 12 weeks, including manufacturing and shipping.

6. What support is available after purchase?

Manufacturers typically provide installation assistance, operator training, and 12-month warranties. Remote troubleshooting and local technician services may also be available.

7. Is it possible to finance the purchase of the machine?

Many suppliers offer financing options or lease plans tailored to Canadian businesses. It’s best to check with the vendor directly.

Conclusion

Roof trim roll forming machines are indispensable for the Canadian construction industry. With their precision, efficiency, and adaptability, they cater to the growing demand for high-quality roofing solutions. If you’re considering investing in a roof trim roll forming machine in Canada, this guide should help you make an informed decision. For further assistance, contact a trusted supplier for detailed specifications and recommendations based on your needs.
