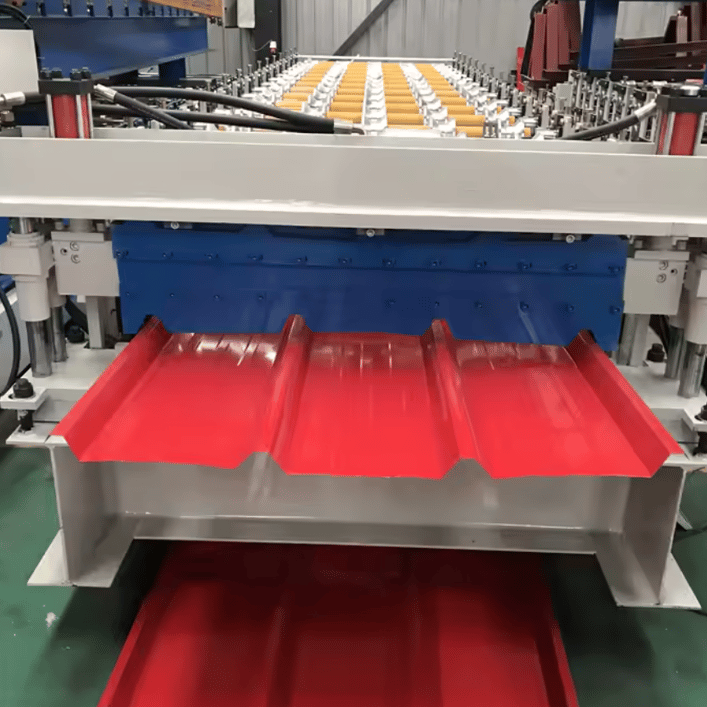

Roofing Panel Roll Forming Machine – United Arab Emirates
Roofing Panel Roll Forming Machine – United Arab Emirates
Product Overview
The Roofing Panel Roll Forming Machine is engineered for the high-speed, precision forming of metal roofing panels used across residential, commercial, and industrial building projects in the UAE. Built for durability in hot and sandy environments like Dubai, Abu Dhabi, and Sharjah, this machine is ideal for continuous production lines with minimal waste and consistent quality.
Designed to accommodate various profile shapes and sizes, this machine supports the production of IBR, corrugated, trapezoidal, and custom roofing profiles. It features a fully automated system with PLC control for ease of operation, accuracy, and safety.
Delivered new and custom-built to match your exact roofing profile and production needs, this machine is supplied directly from our global manufacturing partner and available for delivery throughout the UAE.
Industries Served
- Construction & Contracting – Roofing for warehouses, malls, housing, schools, and hospitals
- Pre-Engineered Metal Buildings (PEMB) – Manufacturing of panels for industrial and modular structures
- Residential Development – Villas, apartments, and multi-family buildings
- Commercial Roofing Contractors – Suppliers for corporate and retail roofing
- Agricultural Infrastructure – Farm sheds, barns, and storage facilities
- Roofing Panel Manufacturers & Distributors – High-volume production for supply chains
Machine Type & Capabilities
- Supports IBR, trapezoidal, corrugated, and custom panel designs
- Fully automated with touch-screen PLC system
- Ideal for high-volume panel production and multiple profile types
- Capable of quick changeover if dual-profile tooling is installed
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type: | Roofing Panel Roll Forming Machine |
| Production Speed: | 10 – 25 meters/min (adjustable) |
| Material Thickness Range: | 0.3 – 0.8 mm |
| Material Width Range: | 914 – 1250 mm (depending on profile) |
| Material Types: | Galvanized Steel, Galvalume, PPGI, Aluminum |
| Material Yield Strength: | Up to 550 MPa (80 ksi) |
| Roller Material: | GCr15 hardened steel |
| Roller Surface Treatment: | Hard chrome plated |
| Number of Forming Stations: | 14 – 20 (based on profile) |
| Roller Shaft Diameter: | 70 mm |
| Shaft Material: | 45# steel, precision-machined |
| Main Drive Type: | Chain drive / Gearbox (based on design) |
| Power (UAE): | 380V / 3 Phase / 50Hz |
| Motor Power: | 5.5 – 11 kW |
| Cutting Method: | Hydraulic cutting |
| Blade Material: | Cr12MoV heat-treated steel |
| Control Type: | PLC with touchscreen (Siemens/Delta) |
| Operating Mode: | Fully Automatic |
| De-coiling System: | Manual or hydraulic uncoiler (3–5 tons) |
| Punching/Notching: | Optional hydraulic system |
| Machine Frame: | Welded steel frame with leveling feet |
| Frame Steel Thickness: | 16 – 22 mm |
| Profile Shape: | IBR / Corrugated / Trapezoidal / Custom |
| Profile Width & Depth: | Variable, depending on design |
| Length Tolerance: | ±2.0 mm per 6 meters |
| Safety Features: | Protective guards, E-stop buttons, overload protection |
Material Gauge & KSI
- Gauge: Typically 26 to 22 gauge (0.4 – 0.8 mm)
- Material Yield Strength: Commonly 250–550 MPa (36–80 ksi), depending on project requirements and structural codes
Prices Start From
- Starting Price: USD $36,000
- Final pricing depends on:
- Profile complexity and tooling
- Number of forming stations
- Additional systems (e.g., punching, stackers, coil cars)
- Delivery and installation support
For an exact quote, email your profile drawings and production needs to [email protected]
Customization Options
- Profile-specific tooling for any standard or custom panel shape
- Optional dual-profile system for flexibility
- Upgraded servo motors and inverter for speed control
- Remote PLC monitoring and integration
- Coil handling equipment (uncoilers, coil cars, stackers)
Highlight – Why Choose This Roofing Panel Machine in UAE?
Built for UAE Climate – High performance even in extreme heat and humidity
Tailor-Made for Your Profile – Get the exact design you need for your roofing business
Energy-Efficient Operation – Advanced controls reduce power consumption and material waste
Fast ROI – Consistent quality and high-speed output mean faster project completion
Full UAE Delivery & Support – Delivery available across all Emirates with technical assistance
Questions & Answers
Q: Can the machine handle both IBR and corrugated profiles?
A: Yes, with custom tooling or a dual-profile design, it can form both types.
Q: How much space is needed for setup?
A: A minimum of 20 meters in length and 3–5 meters in width is recommended.
Q: Is the machine CE certified?
A: Yes, CE and ISO certifications are available upon request.
Q: Does the machine come with a warranty?
A: All machines include a 1-year warranty from dispatch, including support for maintenance and repairs.
Q: Can the machine be used outdoors?
A: While designed for industrial facilities, it should be installed in a covered environment to protect the electronics.
Location & Delivery
- All machines are new and custom-built
- Available for delivery anywhere in the UAE – including Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras Al Khaimah, and Umm Al Quwain
Contact & Quotation
To get a custom quote tailored to your project:
Email: [email protected]
Attach your profile drawing, material gauge, and any specific requirements for best pricing and lead time.
