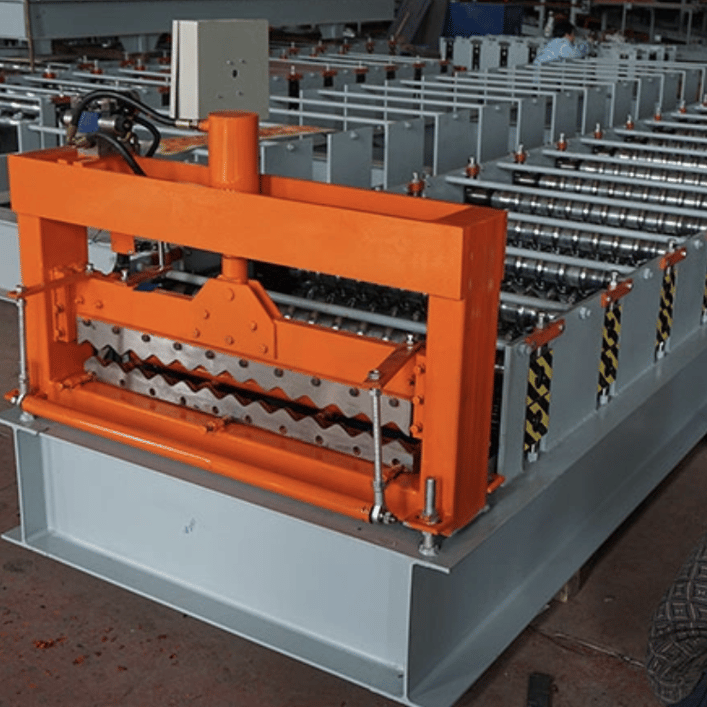

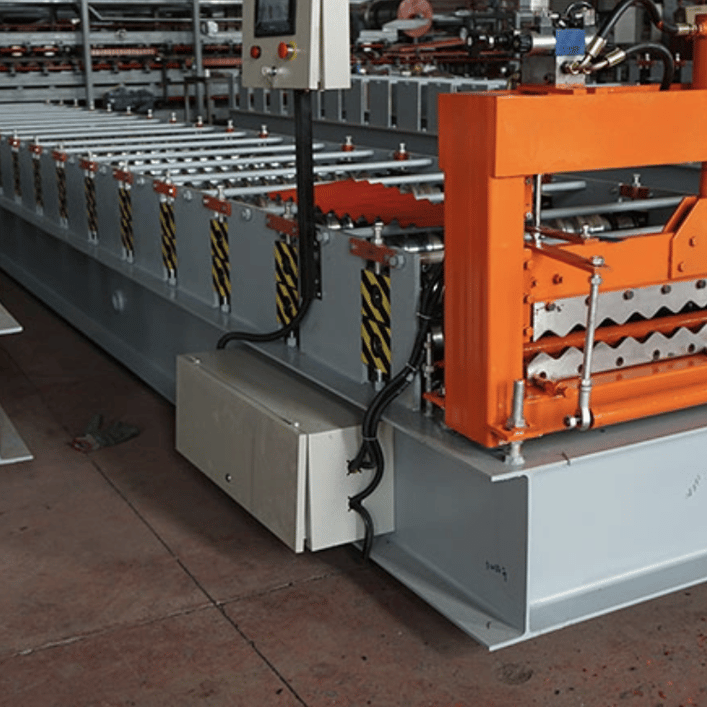

Roofing Sheet Roll Forming Machine in Mexico
| Thickness of the plate | 0.3-0.8mm | |
| 4 | De-coiler | Manual one, can load 5 tons raw material |
| 5 | Rollers for forming | 9 rows |
| 6 | Diameter of the roller | 70mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4kw |
| 9 | Productivity | 8-12m/min |
| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3kw |
| 13 | Processing precision | Within 2.00mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 14mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 3.2 T |
| 18 | Dimensions | 6.5*1.45*1.1m |
| 19 | Voltage | 380V 50Hz 3phases |
Request a quote
We’ll respond within one business day
Enquiring about Roofing Sheet Roll Forming Machine in Mexico
Prefer to talk?
Call us on +44 20 3355 6554 (UK) or +1 407 887 3237 (US) to speak directly with our sales engineers.
- Condition
- New
- Supplier
- Roll Forming Machines Mexico
- Country
- Mexico
- Category
- Roofing & Cladding
- Listing ID
- 13872
