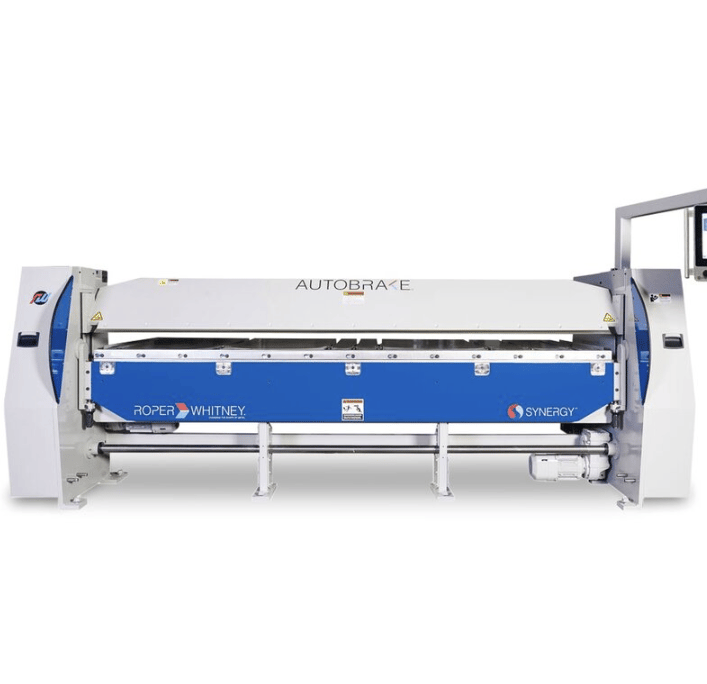

Roper Whitney AB1016 AutoBrake in Texas, USA
- Condition
- New
- Supplier
- Roll Forming Machines United States
- Country
- United States
- Listing ID
- 9631
Request a Quote
To express an interest in this machine please submit the form below.
- Bending Capacity (Mild Steel): 16ga / 1,5mm
- Bending Capacity (Stainless): 20ga / 1,0mm
- Bending Length: 122 in / 3100mm
- Bending Bars: .787" (20mm) bending bar x 122" (3100mm)
- .390" (10mm) bending bar x 122" (3100mm): .250 (7mm) bending bar x 122" (3100mm)
- Back gauge Depth (Standard): 40 in / 1000 mm
- Clamping Beam Opening Height: 4.5 in / 114mm
- Clamping Beam Tooling: 30 Degrees
- Folding Beam Adjustment: 2 in / 50mm
- Crowning of the Folding Beam
- 5-Point 0”-0.030” Adjustment
- Working Height: 35 in / 889mm
- Machine Weight: 6,202 lbs.
- Shipping Weight: 6,622 lbs.
- Back Gauge Motor: 3/4 hp Servo
- Clamping Beam Motor: 1.5 hp
- Bending Beam Motor: 1.5 hp
- Speeds: AB1016
- Clamping Beam Speed: 3” per second
- Folding Beam Speed: 70 degrees per second
- Back gauge Speed (0.375” to 40”): 2 seconds
