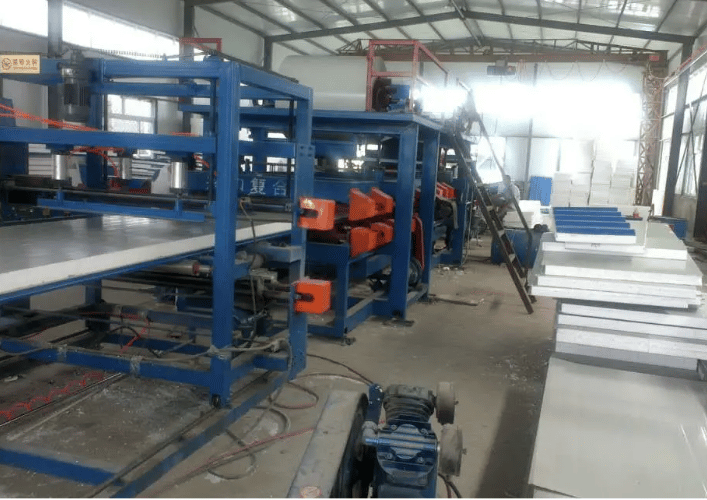

Sandwich Panel Roll Forming Machine in USA
- Condition
- New
- Supplier
- Roll Forming Machines United States
- Country
- United States
- Listing ID
- 9238
Request a Quote
To express an interest in this machine please submit the form below.
sandwich panel press machine
Including:Uncoiler,Roll forming machine,Feeding device,Forming of sandwichpanel,Cutting of sandwich panel,Collection table.
Processes: Composite Decoiler-Roll Forming --laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)-cutting system-Runout Table
Usually need 4-6 workers for the the whole automatic production line(2-4.5m per minute)
(1) Coil material: EPS/Rock wool
(2) Thickness of the plate : 0.27-0.8mm
(3) Core thickness: 40-300mm
(4) Production capacity(according to your glue ):
4-4.5m/min (the fastest) ,2-2.5m/min(the slowest)
(5) Total power: 28KW
(6) Weight: 25ton
(7) PLC control system, easy to operate, high precision and work stably.
(8) Dimensions of whole production line:
about Length35000mm × Width2500mm × Height2500mm
(9)Processing technique and deployment
Processes: Composite Decoiler_Roll Forming --laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)_cutting system_Runout Table
