Jinbolida Semi-Automatic PV Mounting Production Line – Flexible, Affordable Solar Bracket Production

The Jinbolida Semi-Automatic PV Mounting Production Line automates the core of solar bracket production (coil feeding, roll forming and cut-to-length) while leaving setup, secondary operations and handling to operators. It gives a large step up in output and consistency over manual fabrication, at a much lower investment than a fully automatic line. Because operators stay involved at key points, the line switches easily between bracket designs and handles custom parts and small batches, making it a strong fit for small and medium-sized manufacturers, job shops and companies with varied or changing product ranges.

What's Automated and What's Manual

• Automated: Powered decoiling, continuous roll forming of the profile, and cut-off to programmed length
• Operator-controlled: Loading coils, changing punching dies for different hole patterns, feeding parts into secondary punching stations, and unloading and stacking finished parts
• Secondary operations: Operators can bend, weld or add custom features at separate stations such as a press brake or welding bench

Key Features

• Powered decoiler for steady coil feeding

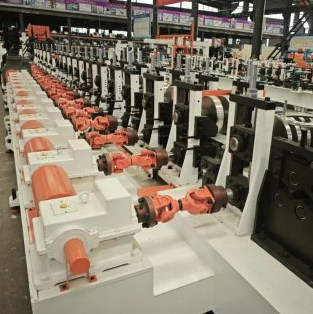

• Roll forming machine for continuous solar mounting profiles such as C-channels
• Automatic cut-off to programmed length
• Punching of profiles, with die changes by the operator for different hole patterns
• Flexible layout that allows secondary operations like bending and welding
• Lower upfront investment than full automation
• Can be upgraded towards higher automation as the business grows

Why Choose Semi-Automatic?

• Productivity: Much faster and more consistent than manual fabrication
• Cost: A fraction of the investment of a fully automatic line
• Flexibility: Handles mixed production, custom orders, one-off parts and frequent design changes
• Skills: Operators build experience with automated equipment, easing a later move to full automation

Applications

• Solar mounting C-channels, rails and brackets
• Custom and lower-volume PV racking designs
• Job shops and regional solar structure fabricators
• Manufacturers entering solar mounting production

Semi-Automatic or Fully Automatic?

• Semi-Automatic PV Mounting Production Line (this line): Lower cost, more flexible, suited to varied and lower-volume production
• Fully Automatic Solar Racking Line: Higher investment, built for large-scale, high-volume production with minimal manual handling

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China
• Configuration: Built to customer requirements

Frequently Asked Questions

• Who is this line for? Small and medium-sized manufacturers, job shops and companies producing a variety of custom or lower-volume bracket designs.
• What does the line automate? Coil feeding, roll forming and cutting to length. Operators handle coil loading, die changes, secondary operations and stacking.
• Can I upgrade later? Yes. The line can serve as a first step towards higher automation.
• Can it make different bracket designs? Yes. Operators can switch configurations and handle special parts without reprogramming a fully automated system.
• What should I send for a quotation? Bracket or profile drawings, material grade and thickness, strip width, required output, the secondary operations you need, and your local voltage and frequency.
