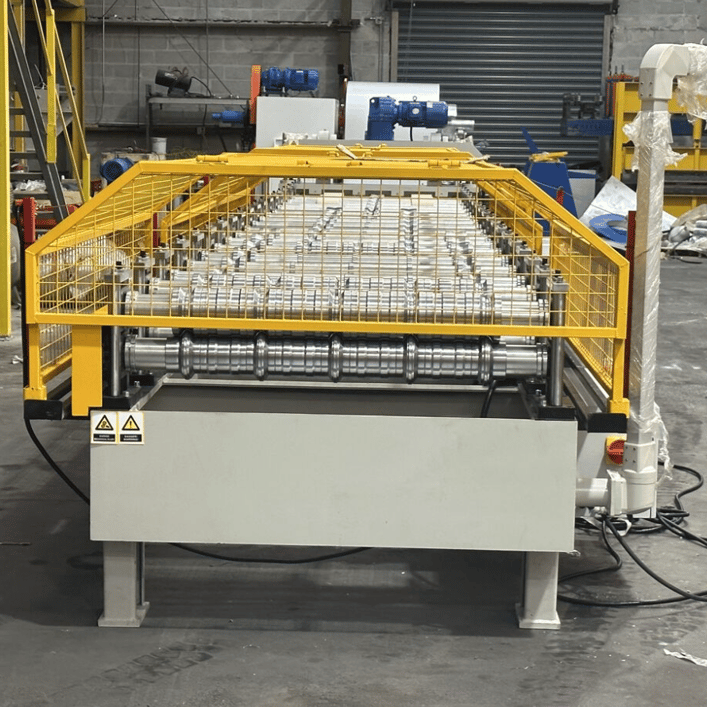

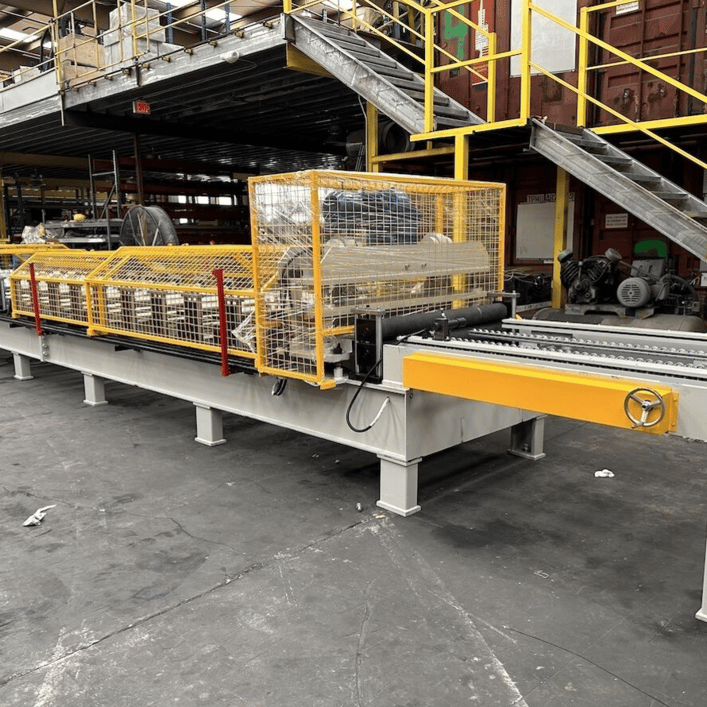

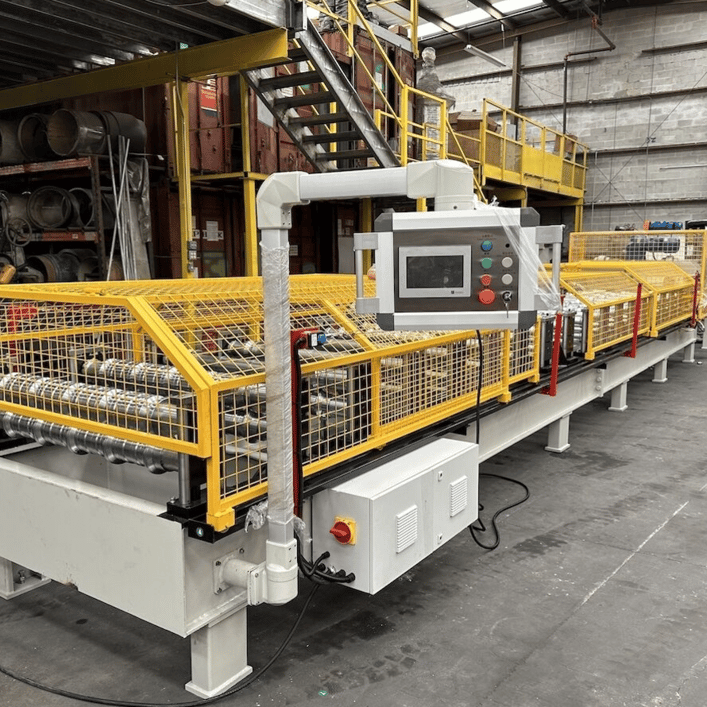

Sheet Metal Siding Roll Forming Machine in Florida

A Sheet Metal Siding Roll Forming Machine is a specialized piece of equipment designed to produce high-quality metal siding profiles for residential, commercial, and industrial applications. These machines are widely used in the construction industry, offering precise and consistent profiles that provide durability, weather resistance, and aesthetic appeal.

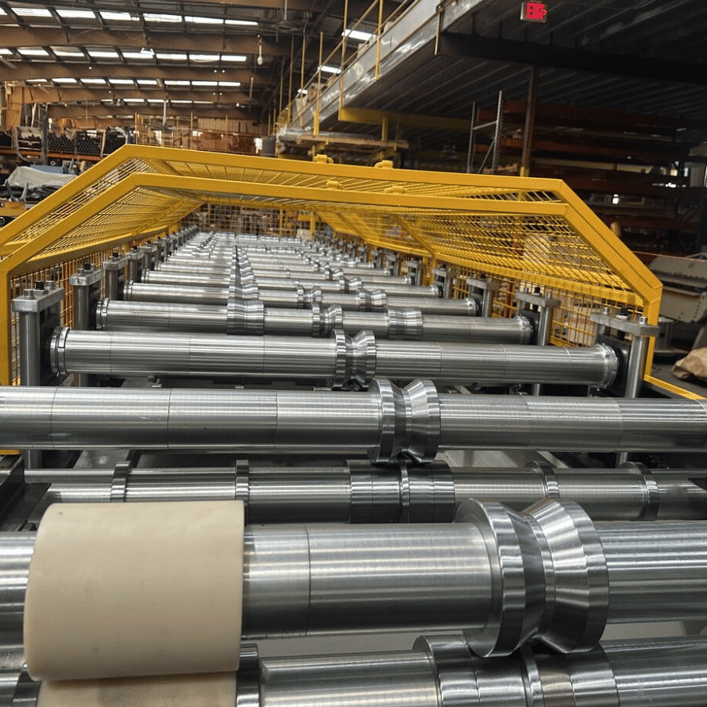

This machine transforms flat sheet metal into finished siding profiles through a series of rollers that progressively shape the material. Sheet metal siding produced by these machines is commonly used for walls, roofs, and cladding due to its strength and versatility.

Machine Specifications

1. Roller Materials:
   • Hardened steel with chrome plating for extended durability.
   • CNC precision-machined rollers for consistent profile quality.
2. Frame Size and Structure:
   • Heavy-duty steel frame construction for stability and longevity.
   • Frame thickness: 16-20 mm (varies based on the machine model).
3. Motors:
   • Main motor power: 7.5 kW to 15 kW (customizable).
   • Hydraulic motor for cutting and punching: 4 kW.
4. PLC Control System:
   • User-friendly interface with a touchscreen.
   • Supports automatic operation and manual adjustments.
   • Real-time fault detection and diagnostics.
5. Hydraulic Cutting System:
   • High-precision cutting to length.
   • Material of blades: Cr12Mov, heat-treated for durability.
6. Profile Sizes:
   • Width: 300 mm to 1200 mm.
   • Thickness: 0.4 mm to 1.2 mm (material dependent).
   • Customizable profiles as per client requirements.
7. Machine Speed:
   • Production speed: 10-30 m/min (varies with profile complexity).
   • Optional high-speed models available.
8. Safety Features:
   • Safety guards and enclosures around moving parts.
   • Emergency stop buttons at accessible locations.
   • Overload protection for motors and hydraulic systems.
9. Material Compatibility:
   • Galvanized steel, aluminum, pre-painted steel, and stainless steel.
   • Coil width: 600 mm to 1250 mm.
   • Coil weight: up to 10 tons (requires appropriate decoiler).
10. Optional Extras:
    • Uncoilers and recoilers.
    • Automatic stackers for finished profiles.
    • Remote PLC control for enhanced monitoring.
    • Pre-punching and embossing systems.

Advantages of the Machine

• High precision and repeatability.
• Low maintenance and operational costs.
• Compatibility with a wide range of materials.
• Fully automated operation reduces labor requirements.
• Customizable profiles for diverse siding applications.

Applications in Florida

• Residential Projects: Durable and aesthetic siding for homes.
• Commercial Buildings: Weather-resistant cladding for office complexes.
• Industrial Facilities: Strong and long-lasting wall panels for factories and warehouses.
• Hurricane-Prone Areas: Florida's exposure to hurricanes makes metal siding an ideal choice due to its wind and impact resistance.

Question and Answer Section

Q1: What is the production capacity of a sheet metal siding roll forming machine?

A: Production capacity varies based on the machine model, with speeds typically ranging from 10-30 meters per minute. High-speed models can achieve up to 50 meters per minute.

Q2: Can the machine handle custom siding profiles?

A: Yes, the machine can be customized to produce specific siding profiles. Providing a profile drawing during purchase ensures accurate customization.

Q3: Is the machine suitable for Florida's climate?

A: Absolutely. The machine produces siding that is durable, corrosion-resistant, and capable of withstanding Florida's humid and hurricane-prone climate.

Q4: What materials can this machine process?

A: It can process galvanized steel, pre-painted steel, aluminum, and stainless steel, making it versatile for various siding requirements.

Q5: What maintenance does the machine require?

A: Regular maintenance includes cleaning rollers, checking hydraulic and lubrication systems, and ensuring electrical connections are secure. It is recommended to schedule professional servicing annually.

Q6: How can I source materials for the machine in Florida?

A: Local suppliers in Florida provide high-quality steel coils and aluminum sheets. Import options are also available for specific material requirements.

Q7: Can I integrate this machine into an existing production line?

A: Yes, the machine can be integrated with other equipment, such as decoilers, stackers, and packaging units, to form a complete production line.

Q8: What is the delivery time for this machine to Florida?

A: Delivery typically takes 6-8 weeks, depending on customization and shipping arrangements.
