Shot Blasting Machine in Shaoxing City, China
Shot Blasting Machine HP

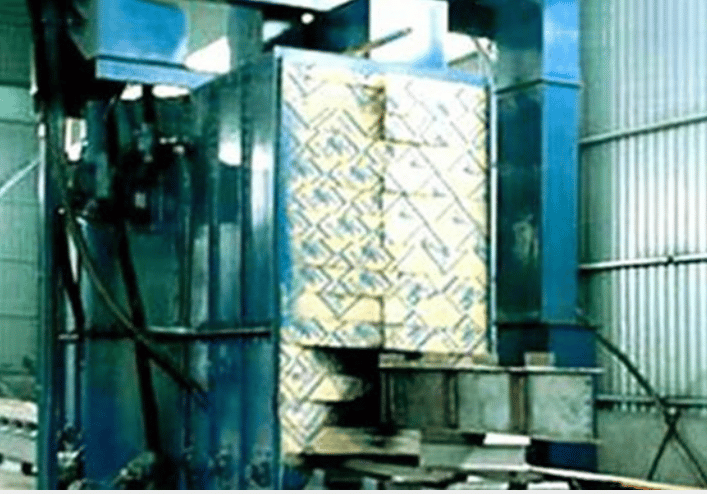

Our shot blasting machine is the pretreatment equipment for cleaning welded structures, H steel and shaped steel. It is mainly used to perform the function of shot blasting towards the surface of raw steel material, which can remove rusty scale, welding slag and roll scale on the surface, thus obtaining uniform metal luster. The shot blasting machine can not only improve the finishing quality and corrosion resistance of the steel plate, but also reduce labor intensity and environment pollution.
Technical Specifications for Shot Blasting Machine
| Item | Parameter |
|---|---|
| Suitable material – Applicable material | Steel structural parts, profiled bar |
| Suitable material – Material size (LXWXH) | 15000*1000*1600 mm |
| 8 HPT300 impeller heads – Power | 18.5 *8 kw |
| 8 HPT300 impeller heads – Shotblasting capacity | 220 kg/ min |
| Workpiece delivery – Working speed | 0.8-4 m /min |
| Workpiece delivery – Power | 4*2(kw |
| Conveying capacity of shot circulatory system | 100 t/h |
| Dedusting system – Filtering area | 250 m2 |
| Dedusting system – Dedusting air flow | 20000 m3/h |
| Shot material – Cast steel shot | φ1.6-φ2 mm |
| Shot material – Steel wire head | φ1.2-φ1.5 mm |
