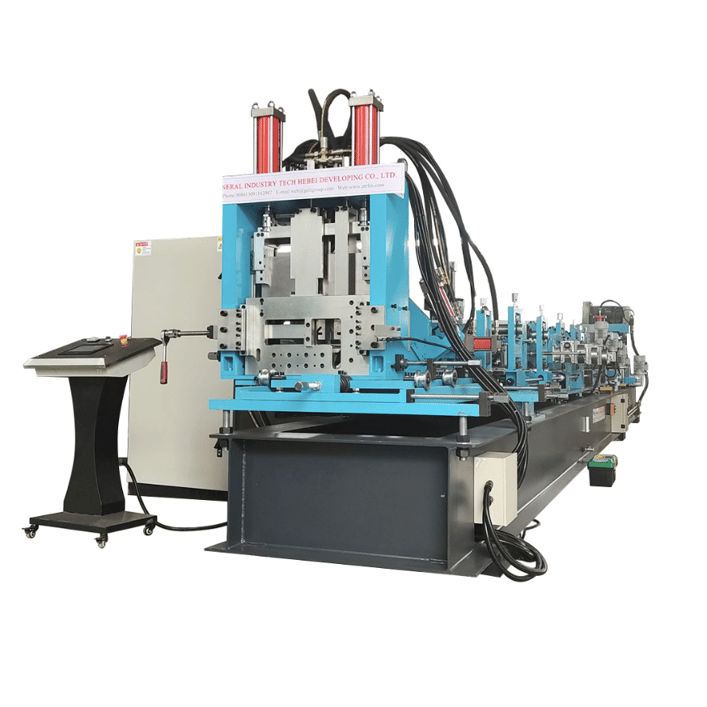

Sigma Purlin Roll Forming Machine in Guinea-Bissau

Steel Profile C Z purlin is widely used in purlin and metal steel structure building and wall beam.

Also can be assembled into the lightweight roof truss,bracket and other architectural components.

Feeding and Leveling Device

1. Feeding Type:Adjustable

2. Feeding Width Range: 170-550mm

3. Entrance and Guide Roller: Diameter φ65mm,

4. Leveling Roller: Upper 3 Rollers, Down 4 Rollers(Total 7 Rollers);

5. Leveling Roller Diameter: φ76mm

6. Driving Motor: 4kW AC Motor;

7. Feature: Adjustable Center of The Forming Rollers and of Sufficient Length to Prevent Laternal Movement of The Strip on its Entry to Leveling Device. And The Material of Rollers Could Stop Scratching The Zinc of The Steel.

Main Roll Forming Machine

1. Machine frame:350mm H beam structure , 300H supporter

2. Roller quantity:18 sets, size adjustment is controlled by electric buttons.

3. Roller Material:Main rollers:GCr15

Supporting side rollers:Cr12 Roller

4. Shafts Material:Motor drive shaft: 40Cr steel

Other roll shaft: 45# steel

6. Forming speed: 0-30 m/min

7. Transmission way: By chain

Hydraulic Cutter

1. Main Power: 5 kW

2. Cutting Blade: Cr12MoV

3. Cutting Tolerance: ±1.5mm/12m4. Cutting Type: The Unbridled Shearing System, You can Cut All Size Products by Adjusting the Blade, It is much Easier than Traditional Shearing System.

5. Feature: PLC Automatic Size Adjustment, You Can Adjust the Rollers by Using Buttons on the PLC Cabinet Screen, It can Save A Lot Labor and Time.
