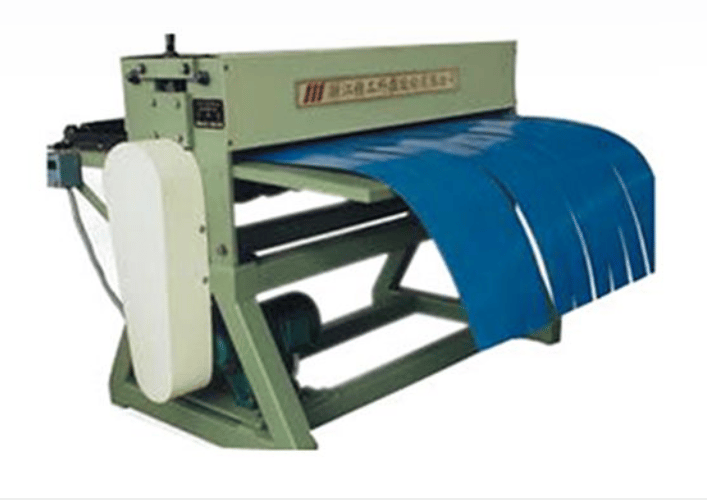

Slitter in Shaoxing City, China
Slitter HF
Our slitter is the auxiliary equipment used for slitting materials. It is simple in structure and easy to adjust. Jinggong Intelligent Building Equipment was founded in 1968 and is an experienced slitter manufacturer and supplier. In addition to slitter, we also offer other auxiliary equipment for the forming machine, like uncoiler, stacker, etc. Due to their good quality and reliability, our products have received ISO9000 and CE certification, and are well received in over 60 countries, such as the USA, Germany, Canada, Russia, Mexico, Australia, and more.
Technical Specification for Slitter
| Item | Parameter |
|---|---|
| Suitable material – Type | Color plate, aluminum plate , galvanized plate |
| Suitable material – Plate width | ≤1250 mm |
| Suitable material – Yield strength | ≤400 Mpa |
| Suitable material – Plate thickness | 0.3-1.0 mm |
| Cutter material | Cr12, with heat treatment |
| Min. slitting width | 75 mm |
| Driving mode | Chain drive |
| Total power | About 1.5 Kw |
| Outline dimensions (LXWXH) | 0.8X1.8X1.7 m |
