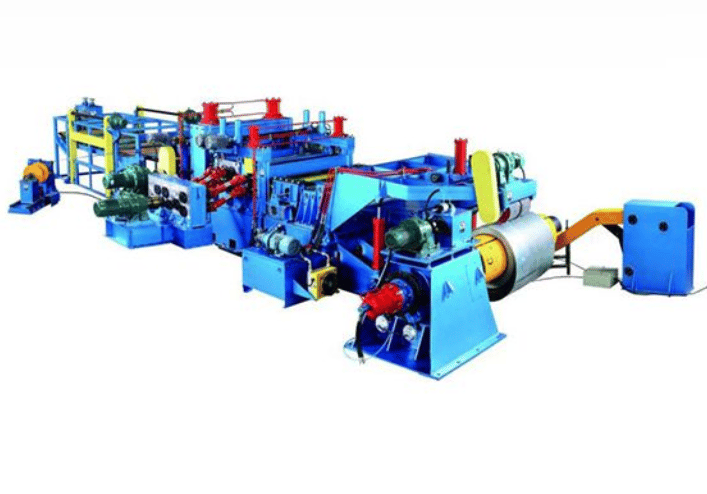

Slitting Line in Shaoxing City, China

This machine is special equipment for uncoiling, slitting and recoiling the steel sheet according to the requirement of the client. It mainly consists of uncoiler, leveling system, shearing system, slitting system, scrap handling system, recoiling system, unloading system and so on.

We can design and manufacture our slitting lines to suit your required specifications.

Coil loading car

It moves forward and backward, and can lift the coils. Max. capacity:20T

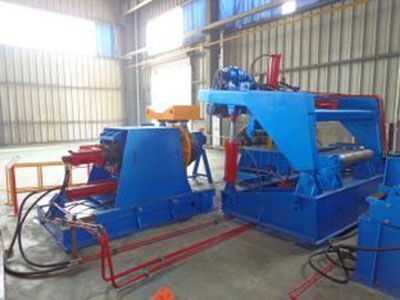

Decoiler

This decoiler is double drum shaft double bearing type

Suitable coil ID: Φ508/Φ610

Coil width: Max.1500mm

Max. capacity: 20T

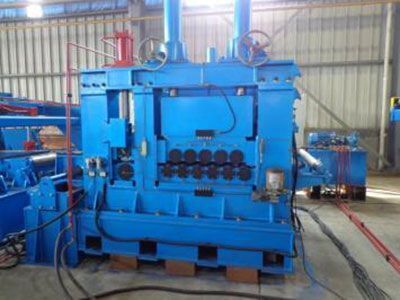

Leveler

The roller leveler is equipped with 5 leveling rollers and 2 pinching rollers.

Loop

The loop is used to adjust the coil speed when it enters the measuring device

Sheet feeding device

The hydraulic cylinder controls the lifting of pressing roller

Shearing system

Adopt hydraulic valve shear and it is used for cutting off the both ends of sheet.
