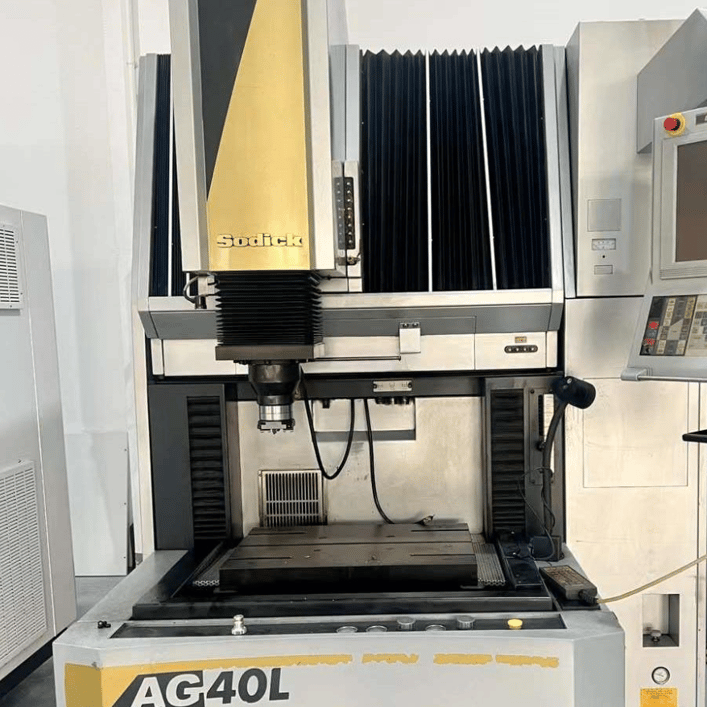

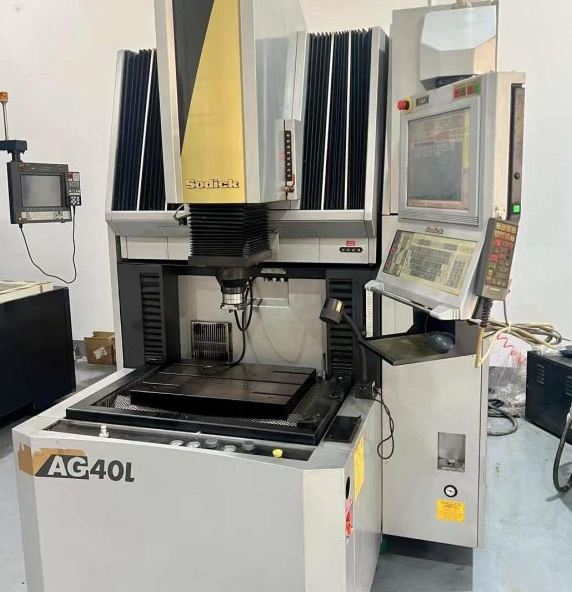

Used SODICK Spark Machining AG40L – High Precision EDM for Mold, Tool, and Die Applications

The Used SODICK Spark Machining AG40L is a premium electrical discharge machine (EDM) designed to meet the demanding requirements of modern manufacturing industries. Whether you operate in tool and die making, precision mold manufacturing, aerospace component development, or medical device fabrication, this machine delivers exceptional accuracy, smooth surface finishes, and dependable performance.

Manufactured by SODICK, a global leader in EDM technology, the AG40L model is part of the renowned AG series. Known for its innovation and cutting-edge technology, this series represents the highest standards in non-contact machining processes.

This specific unit is a used machine, offering exceptional value for businesses seeking high performance at a more accessible investment level.

Overview of the SODICK AG40L Spark Machining EDM

What Is Spark Machining?

Spark machining, or electrical discharge machining (EDM), is a non-traditional machining process that removes material using a series of rapid electrical discharges between an electrode and the workpiece. The AG40L uses graphite or copper electrodes to replicate the shape of the electrode onto the material with extreme precision. It is a preferred method for machining hard metals and intricate geometries that are difficult or impossible to achieve through conventional machining.

Key Features of the Used SODICK Spark Machining AG40L

1. Machine Type and Model

• Type: Spark Machining EDM (Electrical Discharge Machine)
• Model: AG40L – from the SODICK AG series
• Status: Used
• Location: China

The AG40L delivers advanced EDM performance for shops focused on mold making, tool production, and other complex component fabrication.

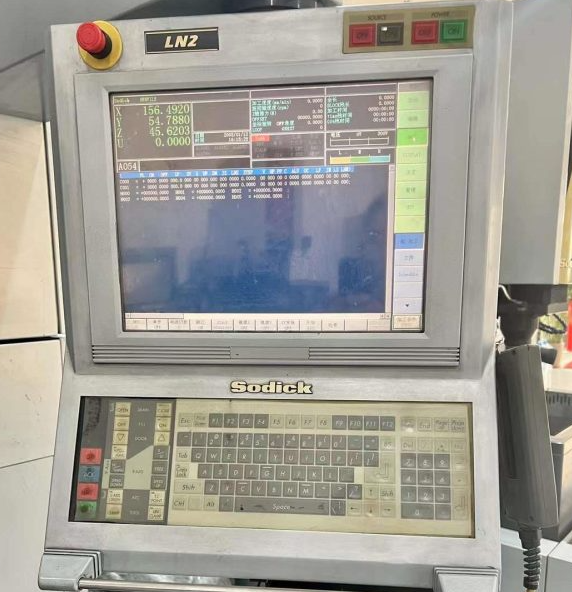

2. Advanced CNC Control System

Equipped with SODICK's state-of-the-art CNC control system, the AG40L allows users to program complex machining paths with ease and efficiency. This intuitive interface reduces programming time while delivering consistently high levels of accuracy.

The software is engineered to simplify operations without compromising the precision and flexibility required for high-end applications.

3. Multi-Axis Control Capabilities

The machine includes precise X, Y, and Z axis control, with potential for additional U and V axis movement depending on configuration. These multiple axes of movement allow the electrode to approach the workpiece at a variety of angles, enabling the creation of complex forms and undercuts with high dimensional fidelity.

4. Large Work Tank Dimensions

The work tank of the AG40L is designed to accommodate a wide variety of workpiece sizes. Whether producing small precision parts or larger molds and dies, the tank allows flexibility in part size and orientation during machining.

5. Electrode Compatibility

The machine works with graphite and copper electrodes, both of which can be finely shaped to match the required negative form of the desired cavity or profile. These materials are known for their ability to withstand the intense heat generated during EDM without degrading prematurely.

6. Material Capabilities

The AG40L is particularly effective at machining:

• Hardened Tool Steel
• Titanium
• Tungsten Carbide
• Inconel and other Superalloys

These materials are often used in high-value industries where traditional machining falls short due to hardness or complexity.

7. Precision and Surface Finish

One of the strongest attributes of the SODICK AG40L is its ultra-precision machining capabilities. The machine can consistently achieve tight tolerances and mirror-like surface finishes, which are crucial in applications like:

• Plastic injection molds
• Die casting tools
• Aerospace engine components
• High-precision medical instruments

8. Additional Features

• Automatic Electrode Changer: For operations requiring multiple electrodes or longer unattended machining runs.
• High-Efficiency Filtration System: Maintains the purity of the dielectric fluid, which is essential for quality discharge and finish.
• Thermal Compensation Systems: Ensures dimensional stability during extended operations or when working in fluctuating temperature environments.

9. Common Applications

This machine is widely used in:

• Tool and Die Manufacturing – for creating dies with intricate details or hardened steel.
• Mold Making – especially for producing high-precision molds with complex geometries.
• Aerospace – for critical parts with tight tolerances.
• Medical Industry – to manufacture small, precise, and complex surgical or diagnostic components.
• Automotive – for dies, engine parts, and detailed metal components.

Shipping and Delivery Times

Depending on the method of shipping, delivery time for the Used SODICK AG40L is as follows:

• Air Freight: Approximately 7–10 days
• Sea Freight: Typically 30–45 days, depending on the destination

All shipping logistics can be arranged by our team, with full documentation, inspection options, and support provided upon request.

Why Choose the Used SODICK AG40L?

• Cost-Effective Access to Advanced Technology: Purchasing a used machine offers significant savings while still delivering top-level performance.
• SODICK Reputation: A global leader in EDM technology, SODICK is synonymous with reliability, innovation, and precision.
• Versatility: Capable of handling a wide range of materials and part sizes.
• Durability: Built with premium components to withstand the rigors of high-precision manufacturing environments.

Question and Answer Section

What industries benefit most from the SODICK AG40L?

This machine is especially popular in industries such as:

• Mold and die manufacturing
• Aerospace
• Automotive
• Medical devices
• Precision engineering

Can the AG40L handle hardened steel?

Yes, the AG40L is specifically designed to machine hard-to-cut materials such as hardened tool steel, making it ideal for molds and dies that require long service life.

Is this machine still in good working condition?

Yes, the used SODICK AG40L is fully operational and maintained. Detailed inspection reports and videos can be provided upon request. We also offer in-person or third-party inspection options.

What type of electrode does this machine use?

It works best with graphite or copper electrodes, depending on the application and required surface finish.

Can I inspect the machine before purchasing?

Yes, we welcome inspections. You can either send a local agent or request a live video call demonstration.

What support do you offer after purchase?

We can assist with:

• Technical documentation
• Installation guidance
• Operator training (available on request)
• Sourcing of spare parts and consumables

Do you offer additional machines?

Yes. If you are looking for a specific model, brand, or machine configuration, we can use our international network to locate and secure the right equipment for your needs.

Contact Information

If you’re looking for a high-precision EDM machine at a competitive price, the Used SODICK Spark Machining AG40L is an ideal choice. For more information, inspection details, or to arrange a purchase, contact us today.
