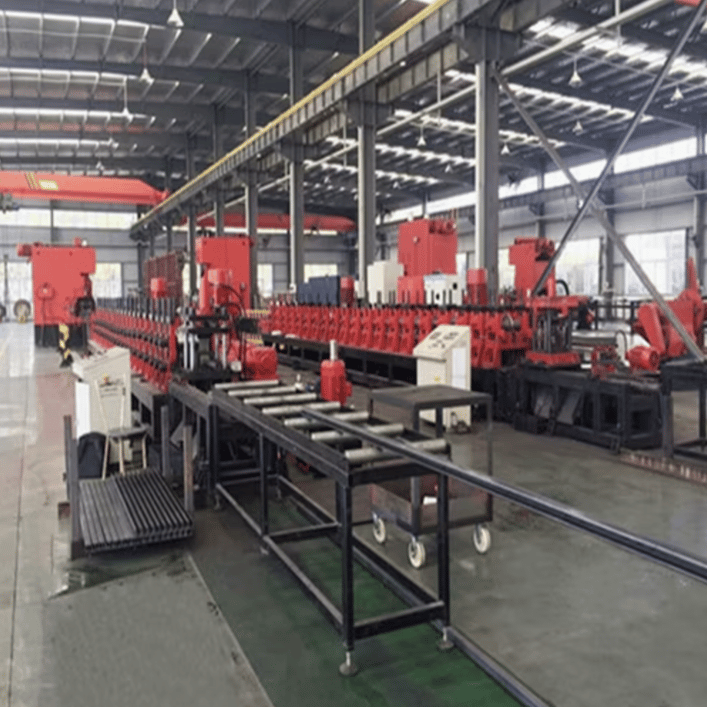

Solar Panel Structure Roll Forming Machine in Canada

Solar energy is becoming a dominant source of renewable energy, driving demand for innovative solutions like solar panel structure roll forming machines. These machines are specialized equipment designed to manufacture solar panel mounting structures with precision and efficiency. In Canada, with its growing focus on renewable energy, these machines play a crucial role in meeting the increasing demand for solar energy infrastructure.

Machine Description

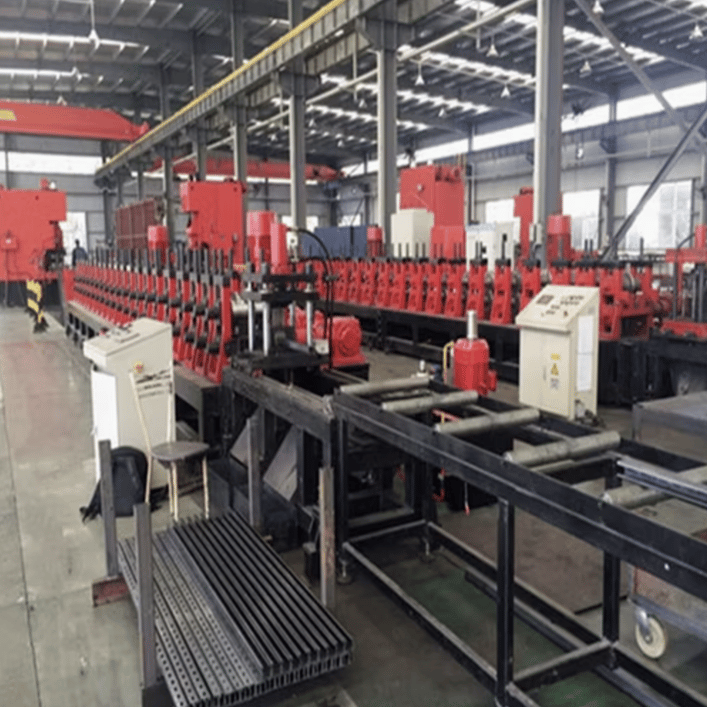

A solar panel structure roll forming machine is engineered to produce metal profiles used for mounting solar panels. These machines are built to handle various metals, including galvanized steel, aluminum, and stainless steel, offering high durability and weather resistance for outdoor applications. The machine ensures consistency in profile dimensions, strength, and alignment to support solar panels efficiently.

Machine Specifications

Below are the typical specifications of a solar panel structure roll forming machine designed for the Canadian market:

• Roller Materials: High-grade Cr12Mov steel with hard chrome plating for extended durability and precision.
• Frame Size: Heavy-duty steel structure, typically 350 H-beam for high stability.
• Motor System:
  • Main Motor Power: 7.5 kW to 15 kW.
  • Hydraulic Motor Power: 5.5 kW.
• Cutting System:
  • Hydraulic cutting with Cr12Mov steel blades.
  • Tolerance: ±0.5 mm for high precision.
• Profile Sizes:
  • Compatible with profiles ranging from 41x41 mm to 60x60 mm.
  • Thickness: 1.5 mm to 3.0 mm.
• Speed: 15–25 m/min (excluding punching and cutting time).
• Control System:
  • PLC system with touchscreen interface (Siemens or Mitsubishi).
  • Remote control capability for troubleshooting.
• Punching System:
  • Hydraulic punching with pre-programmable hole patterns.
  • High-speed servo feed ensures precise hole alignment.
• Safety Features:
  • Full enclosure with safety guards.
  • Emergency stop buttons.
• Optional Extras:
  • Automatic stacker.
  • Leveling system for coil preparation.
  • Remote PLC monitoring system.

Applications in Canada

Solar panel structure roll forming machines are vital in manufacturing mounting structures used in:

• Residential solar installations.
• Commercial and industrial solar power systems.
• Large-scale solar farms.

With Canada's adoption of solar energy, the demand for robust mounting structures is rapidly growing, making these machines an essential part of the supply chain.

Key Features

• Customizable Profiles: Adapts to different dimensions and gauges.
• Energy Efficiency: High-speed production reduces operational costs.
• Durable Construction: Designed for long-term use in harsh Canadian climates.
• Ease of Operation: User-friendly PLC interface minimizes learning curve.

Setup and Installation

1. Preparation: Unload the machine, check all parts, and ensure the power supply matches the machine's specifications.
2. Alignment: Align the machine with the production line.
3. Testing: Run a trial production to ensure proper calibration.
4. Training: Provide operational training to staff for efficient use.

Maintenance Requirements

• Regular lubrication of rollers and moving parts.
• Inspection of the hydraulic system for leaks.
• Cleaning of the PLC interface and sensors.
• Replacement of worn-out components like blades and punches.

Pricing

Prices for solar panel structure roll forming machines in Canada vary based on specifications, extras, and brand. Typical price ranges are:

• Basic Models: CAD 50,000–80,000.
• Advanced Models with Extras: CAD 100,000–150,000.

Question and Answer Section

Q1: What is the production speed of a solar panel structure roll forming machine?

A1: The production speed ranges from 15–25 m/min, depending on the profile complexity and additional processes like punching or cutting.

Q2: Can the machine handle different profile designs?

A2: Yes, the machine can be customized to produce various profiles by changing the roller sets and programming the PLC system.

Q3: What materials can be used with this machine?

A3: It is compatible with galvanized steel, aluminum, and stainless steel, making it versatile for different environmental conditions.

Q4: Is it suitable for Canadian weather conditions?

A4: Absolutely. The machine is designed to produce structures that are durable and resistant to extreme weather conditions commonly experienced in Canada.

Q5: How can I import a solar panel structure roll forming machine to Canada?

A5: Work with reliable suppliers who provide assistance with customs clearance, tariffs, and delivery logistics. Ensure compliance with Canadian electrical and safety standards.

Q6: What support is available post-purchase?

A6: Most manufacturers offer installation support, operational training, and remote troubleshooting through the PLC system.

This detailed overview of the solar panel structure roll forming machine highlights its relevance and adaptability to the growing renewable energy sector in Canada. Whether for small-scale residential projects or large solar farms, this machine is an indispensable tool for efficient and precise solar structure manufacturing.
