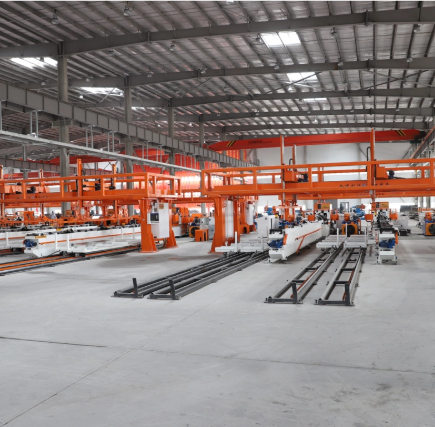

Jinbolida Solar Racking Production Line – Complete Racking Systems from One Coordinated Line

The Jinbolida Solar Racking Production Line is built for manufacturers who supply complete solar mounting systems rather than individual parts. Configured to produce the full set of racking components (rails, clamps, mid-clamps, end-clamps, footing supports and splice connectors), it keeps every part to the same tight tolerances, so hole alignment, rail straightness and fit are consistent across the whole kit. That means fewer fit-up problems and on-site modifications for installers, and lets racking manufacturers supply complete, kit-based systems to solar EPC contractors and installers.

Process

• Coil feeding and precision levelling: Prepares flat strip for forming
• Roll forming: A series of stations forms the structural rail profiles
• Punching, notching and embossing: Adds holes, notches and embossed features, synchronised with the line
• Cutting: Cuts parts to their final length
• Finished parts: Ready for coating, kitting and dispatch

Configurable Options (to be confirmed with Jinbolida)

• Robotic welding cells for assembling sub-components
• Automated quality inspection with laser scanners to check critical dimensions in real time
• Stations for clamps, footing supports and splice connectors

Key Features

• Designed to produce the full range of racking components, not just brackets
• Synchronised forming, punching, notching, embossing and cutting
• Tight tolerances on hole alignment, rail straightness and surface quality
• Consistent parts across the whole kit for trouble-free field assembly
• Supports just-in-time production of complete racking kits

Key Benefits

• Compatible components: All parts made to the same standards, avoiding the fit-up problems of mixed suppliers
• Consistent structural quality: Uniform parts with predictable performance under wind, snow and seismic loads
• Kit-based supply: Produce complete systems to order, reducing finished-goods inventory

Applications

• Racking manufacturers supplying complete systems to solar EPCs and installers
• Ground-mount and rooftop PV mounting systems
• Rails, clamps, footing supports and splice connectors

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China
• Configuration: Custom-built to the customer's racking system

Frequently Asked Questions

• How is this different from a bracket line? It's configured to make the full range of racking components, so the complete system is produced to matching tolerances.
• What operations are included? Coil feeding, levelling, roll forming, punching, notching, embossing and cutting. Welding and laser inspection can be discussed as options.
• Who is it for? Racking manufacturers supplying complete kits to EPC contractors and installers.
• What should I send for a quotation? Your racking system drawings and parts list, material grades and thicknesses, target output, and your local voltage and frequency.
