Steel Building Roll Forming Machine in Iran
- Condition
- New
- Supplier
- Roll Forming Machines Iran
- Country
- Iran
- Listing ID
- 9377
Request a Quote
To express an interest in this machine please submit the form below.

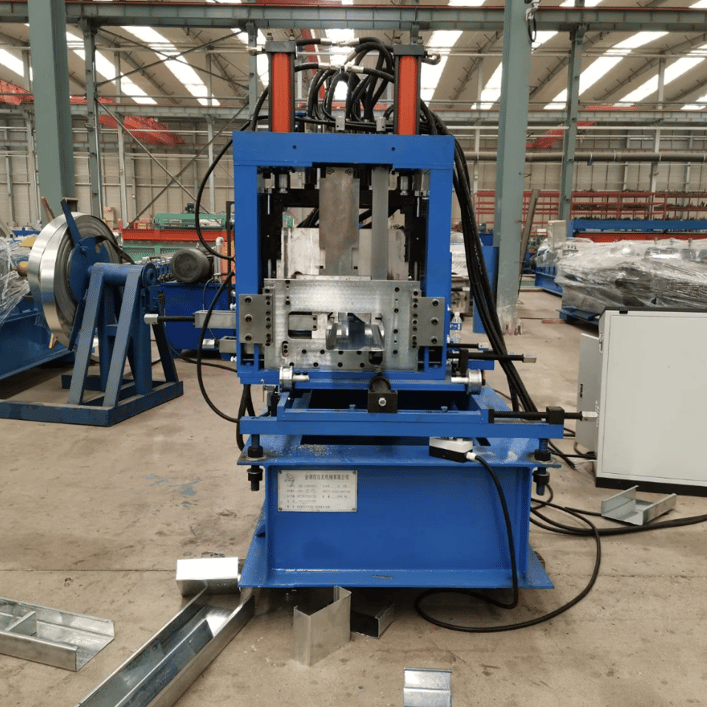

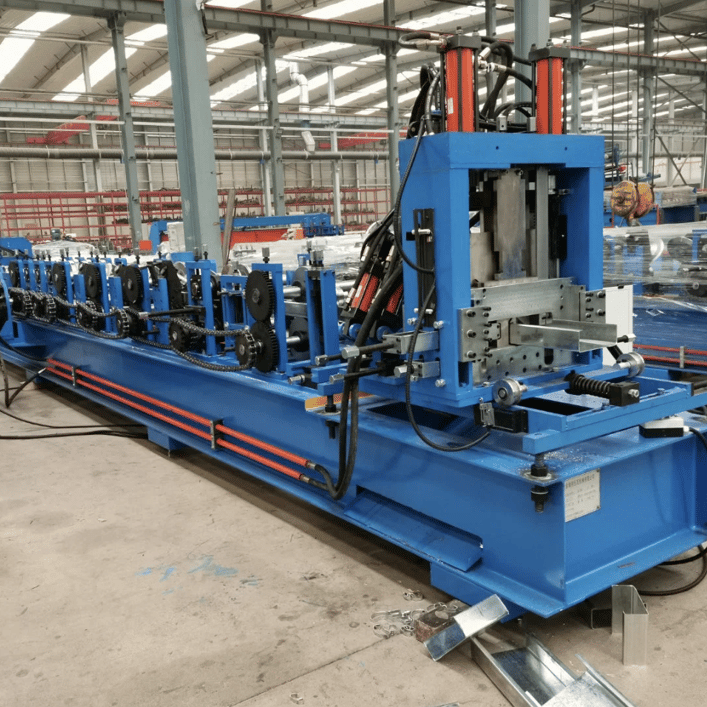

Building Construction Steel Frame Cuz Purlin Profile Roller Making Roll Forming Machine
This is Full auto C purlin Roll forming machine , can work C section from 80-300mm in many sizes . It has smart control system , can adjust the sizes from buttons . Customer only need to provide us the section drawing , we can design accordingly .
|
GI&PPGI |
|
|
0.3-3mm |
|
|
235Mpa to 350Mpa |
|
|
Operation |
Manual/ Hydraulic for option |
|
Weight Capacity |
5Tons |
|
Roller Station |
18 rows |
|
Diameter of Shaft |
80-90mm |
|
Material of Rollers |
Bearing steel |
|
Material of shaft |
45# steel with chrome 0.05mm |
|
Transmission |
Chain |
|
Operate |
Automatic Hydraulic |
|
Blade material |
Cr12MOV |
|
Pump motor for cutter |
7.5KW |
|
Main Motor |
11KW |
|
Voltage |
380V 50Hz 3 Phase |
|
Electric Box |
PLC control system , Inverter |
|
Language |
English / Chinese |
|
10-15M/min |
