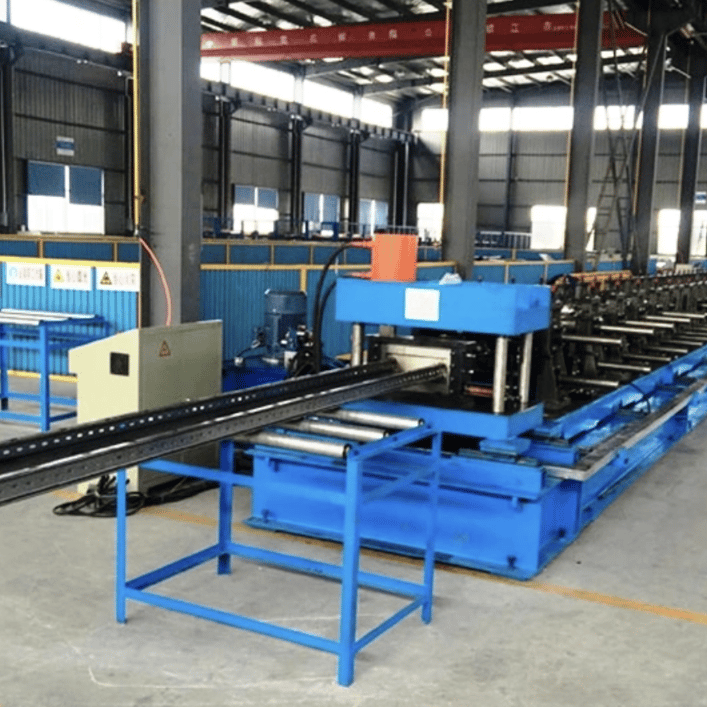

Steel Cable Tray Roll Forming Machine in Brazil
Perforated Trough Sheet Stainless Steel Galvanized Cable Tray cable pallet Track Trunking Roll Forming Machine
1. Hydraulic Decoiler with Breaking device is equipped for coil processing.
2. Loading Coil Car (Option)
3. Peeler Table And Pressure Pad

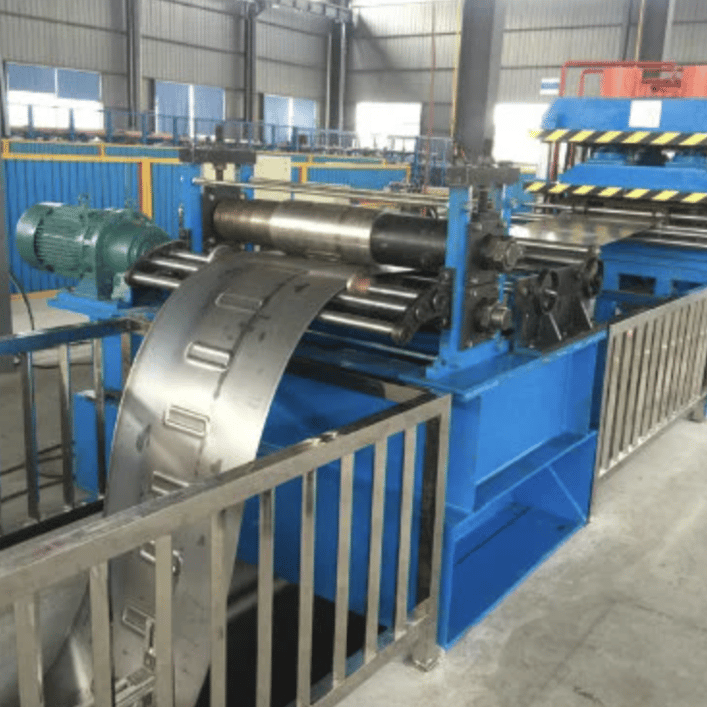

4. Leveler
5. Looping Pit
6. Servo Roll Feeder

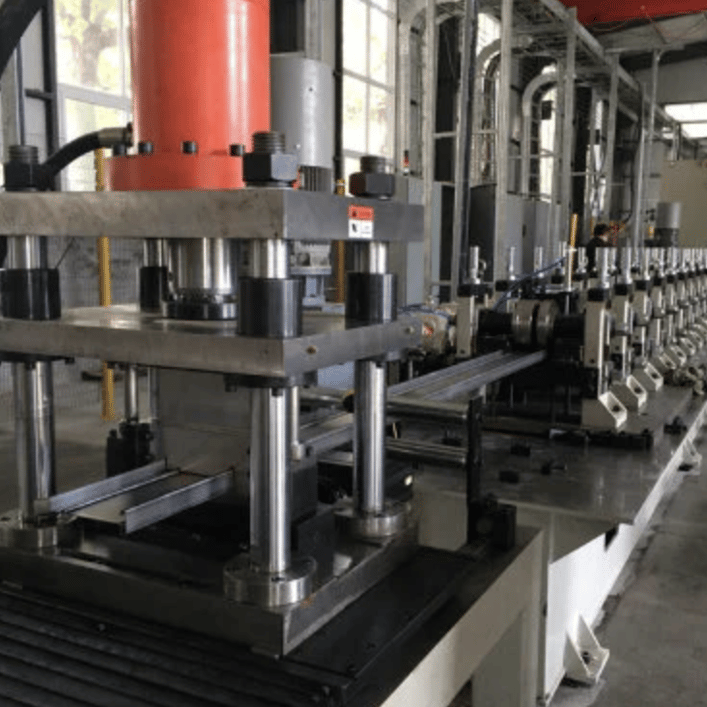

7. 400 Ton Mechanical Press
8. Mechanical Shearing Machine
9. Powered Conveyor Roller
10. Cantilevered Type Rollformer with tooling
11. Run Out Table or automatic stacking device
12. Mitsubishi (Japan) PLC and Touchable Screen are used for data processing and setting.
13. Line speed is 10– 15 meter / minute.
| Coil Width | 150-1100 mm |
| Coil Thickness | 1.0-2.0 mm |
| Power | 380 V, 50 Hz, 3 phase |
| Line Speed | 10 m/min |
| Electical Contral | PLC |
| Hydraulic Punching | As per customer drawing |
