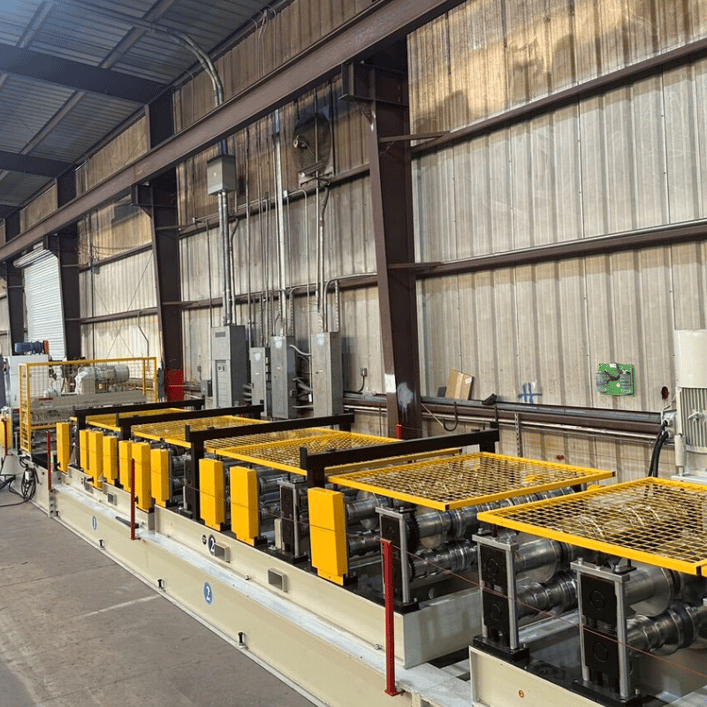

Steel Composite Decking Roll Forming Machine Alabama

The Steel Composite Decking Roll Forming Machine is designed to meet the demands of construction and industrial projects in Alabama, USA. This state-of-the-art machine specializes in creating a variety of steel decking profiles tailored for commercial, residential, and industrial applications. With its advanced capabilities, the machine is an excellent choice for producing high-quality, durable steel decks that meet industry standards.

Available Profiles

• 1.5-inch B Deck
• 3-inch N Deck
• Composite Metal Deck
• Steel Form Deck
• Custom Profiles: Machines can be tailored to produce custom profile sizes based on project requirements.

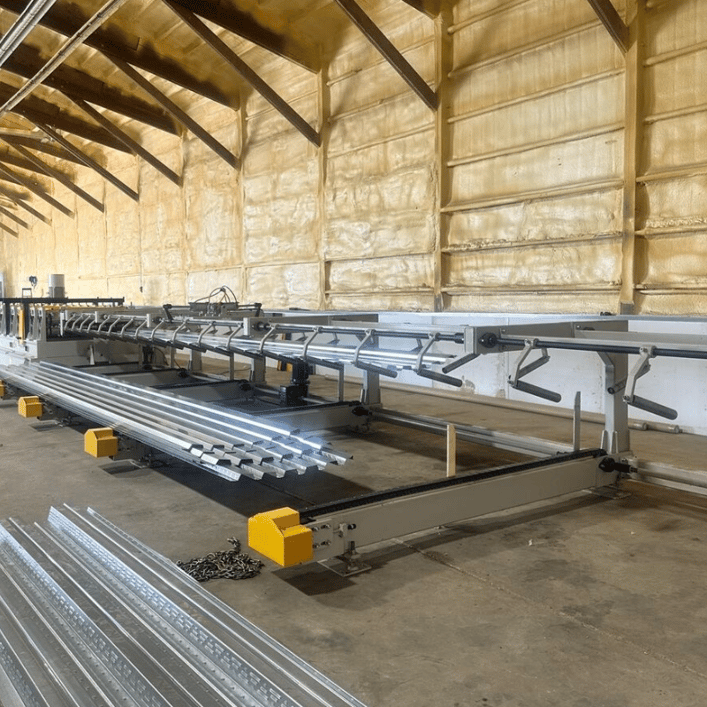

Both fixed-base machines and cassette-style machines are available to suit different production needs. Additionally, auto stackers can be integrated to streamline post-production handling.

Specifications

Machine Specifications

• Forming Speed: 60 feet per minute or more
• Material Thickness: 18-gauge to 22-gauge steel
• Machine Weight: 20 tons
• Machine Footprint: 85 feet
• Main Power Supply: 480V, 3-phase, 60Hz
• Motor Power: 32 HP
• Drive System: Gearbox and chain drive

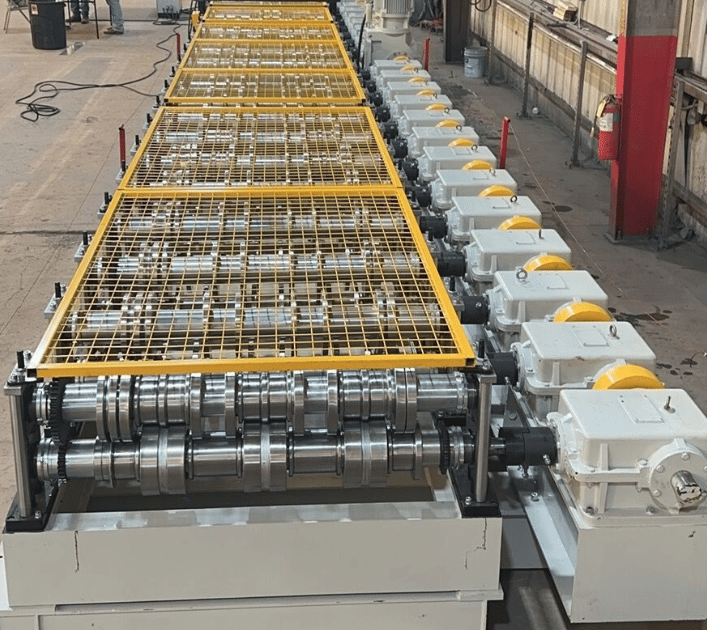

• Forming Stations: 28 stations

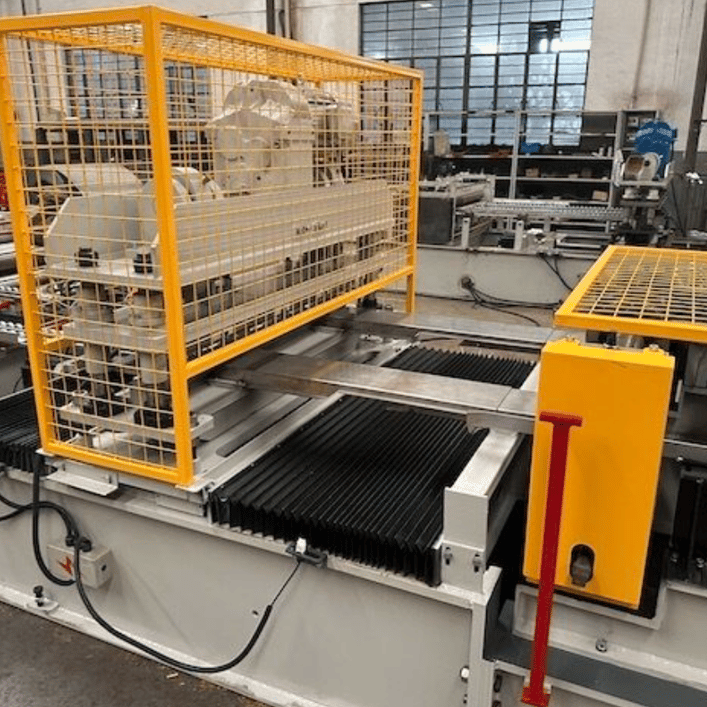

• Cutting Type: Pre-flying shear for precision cutting
• Safety Features: Optional safety covers, emergency stops (E-stops)

Uncoiler Specifications

• Uncoiler Type: Hydraulic with a car
• Capacity: 15,000 pounds
• Decoiling Speed: 60 feet per minute
• Coil Width: Up to 48 inches
• Machine Weight: 3.5 tons
• Machine Footprint: 14 feet x 6 feet x 6 feet
• Hydraulic Car Dimensions: 35 inches x 28 inches

Additional Features

• Controls: Equipped with jog controls and a proximity sensor for accuracy and efficiency.
• Air Brake System: Ensures controlled operation during high-speed processes.
• Optional Safety Features: Safety covers and E-stops enhance operational safety.

Applications

• Commercial and industrial flooring systems
• Steel structure frameworks
• High-rise building construction
• Bridge and infrastructure decking

Question and Answer Section

Q: What profiles can this machine produce?

A: The machine can produce 1.5-inch B deck, 3-inch N deck, composite metal deck, steel form deck, and custom profiles designed to your specifications.

Q: What material thickness can this machine handle?

A: It works with steel materials ranging from 18-gauge to 22-gauge thickness.

Q: What is the maximum speed of the roll forming machine?

A: The machine has a forming speed of over 60 feet per minute, ensuring high productivity.

Q: Is the machine customizable for specific project needs?

A: Yes, we can customize the machine to create specific profiles or include additional features like auto stackers and cassette systems.

Q: What safety features are available?

A: The machine includes optional safety covers and emergency stop buttons to ensure a secure working environment.

Q: Can this machine handle heavy-duty operations?

A: Yes, the machine is built to handle heavy-duty operations with a 15,000lb uncoiler capacity and robust construction weighing 20 tons.

Q: What type of cutting system does it use?

A: The machine features a pre-flying shear cutting system for precise and efficient cuts.

Q: What power requirements does this machine have?

A: It operates on 480V, 3-phase, 60Hz power supply, suitable for industrial facilities.

Q: Is on-site setup and installation available in Alabama?

A: Yes, professional setup and installation services are available to ensure seamless integration into your operations.

Q: Can the machine be used for custom profile production?

A: Absolutely! The machine is designed to handle custom profiles as per your project’s requirements.

This Steel Composite Decking Roll Forming Machine is an excellent investment for businesses in Alabama, ensuring efficiency, versatility, and durability for steel deck production. Whether you’re involved in large-scale construction or need specialized profiles, this machine delivers unparalleled performance.
