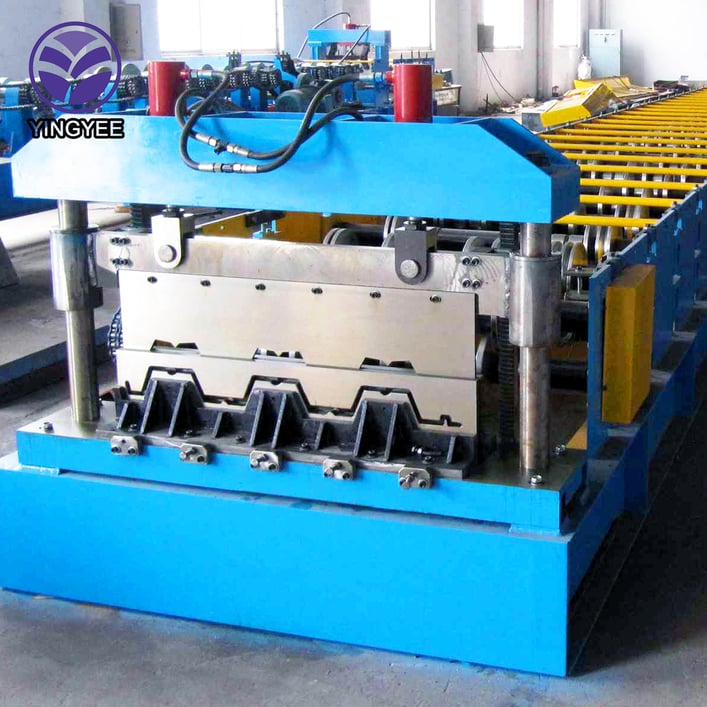

Steel Floor Deck Roll Forming Machine in China

Request a Quote

To express an interest in this machine please submit the form below.

Decoiler form：7 tons hydraulic decoiler
ID of feeding Coil：φ460mm-- φ510mm
Max width：1250mm
Max weight ：7T
Material:Aluminum and zinc plate galvanized plate color steel plate low carbon steel
main power is 5.5kw. Control by plc; Sensor sensing
Voltage, Frequency, Phase: 380 V, 50 Hz,3Phase
Included trolley move type.

1. Matching material: colored armor plate with the bending intensity of Q195-235 .Material thickness: 0.8--1.5 mm

2. Power: 18.5 kw

3. Forming speed: 10--15 m/min

4. The width of the plates:according to the drawings

5.the formed width:according to the drawings

6. Roll stations: 25

7. Shaft Material and diameter: 45# steel, ￠90mm

8. Tolerance: +-1.5mm

9. Way of drive: chain driven

10. Controlling system: PLC

11. Voltage: 380 V, 50 Hz,3Phase

12. Material of forming rollers: 45# heat treatment and chromed.
