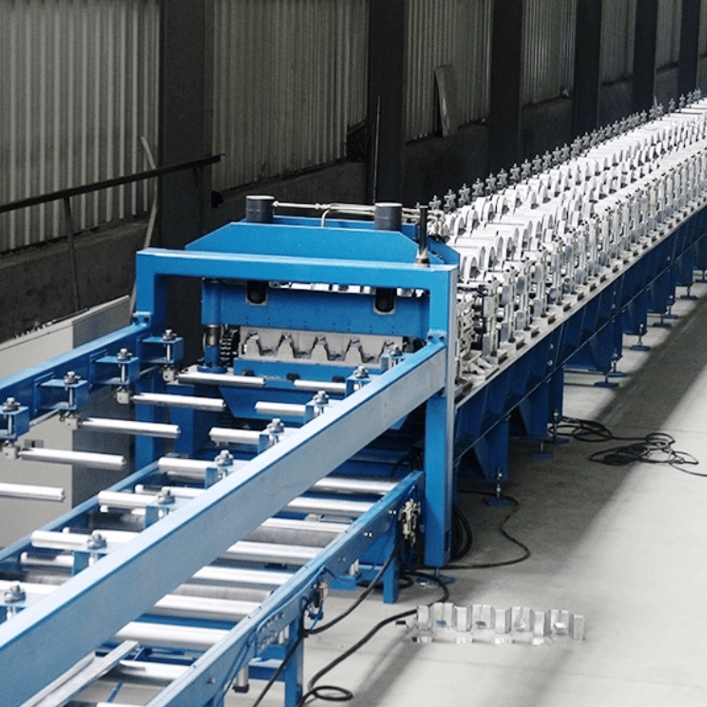

Steel Roof Deck Roll Forming Machine in Texas, USA

Steel Roof Deck Roll Forming Machine specifications available for delivery across Texas

1. Coil width: 1220mm, 1250mm, 1470mm (Material: galvanized coil)

2. Output speed: 12 - 15m/min

3. Coil thickness: 0.8 - 1.5mm

4. Tolerance: 3m±1.5mm

5. Roller station: 40 stations

6. Main motor power: 45kw (3 sets 15kw motors)

7. Hydraulic oil pump motor: 7.5kw, the pressure of hydraulic: 20Mpa

8. Frequency inverter: Panasonic

9. Computer control system, PLC control length, encoder: Omron

10. Diameter of roller: Ф110

11. Material of roller: 45# forge steel, coated with chrome

12. Material of cutter: Cr12Mov, heat treatment HRC 58-62

13. Material of main shaft: 45# advanced steel

14. Drive type: 1.2 inch double row chain

15. Dimension (L*W*H): 20000×2000×1200 (mm)
