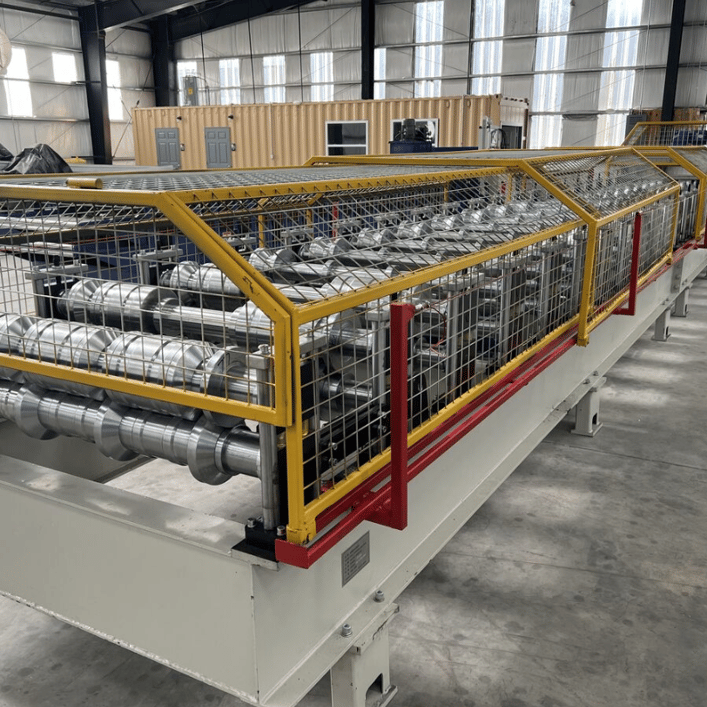

Steel Roof Roll Forming Machine in Canada

Steel roof roll forming machines are essential for producing high-quality roofing panels efficiently and cost-effectively. These machines are widely used in the construction industry to create durable roofing materials suitable for Canada's diverse climate, from snowy winters to rainy summers.

Machine Description

A steel roof roll forming machine is designed to produce metal roofing panels by continuously bending a long strip of metal sheet. These machines are automated systems capable of creating roofing profiles with precision and speed, ensuring consistency in production. The versatility of these machines allows manufacturers to produce various profiles, such as standing seam, corrugated, and ribbed panels, catering to the demands of the Canadian market.

Key Features

• Automation: Fully automated systems with PLC control for seamless operations.
• Durability: Built with heavy-duty steel frames and hardened rollers to ensure long-lasting performance.
• Precision: Advanced cutting and forming technologies to maintain consistent profile accuracy.
• Customization: Ability to create multiple roofing profiles based on customer requirements.
• Energy Efficiency: Designed to minimize energy consumption while maximizing output.

Specifications

1. Roller Material: High-grade chromium-plated steel (45# or GCr15), ensuring longevity and resistance to wear and tear.
2. Machine Frame: Heavy-duty steel with welded construction for stability and durability.
3. Cutting System: Hydraulic cutting system with high-precision blades made from Cr12MoV steel.
4. Control System: PLC control system (Siemens or Mitsubishi) for automation and easy operation.
5. Profile Width: Adjustable (typically 600mm–1200mm).
6. Material Thickness: 0.3mm–0.8mm (customizable for thicker materials).
7. Machine Speed: 12–20 meters per minute (can vary based on profile complexity).
8. Power Supply: 220V/380V/460V, 50Hz/60Hz, 3-phase (customized for Canadian standards).
9. Safety Features: Emergency stop button, protective enclosures, and safety guards.
10. Optional Features: Decoiler, stacker, remote PLC control, and embossing units.

Applications in Canada

• Residential Buildings: Metal roofing for houses to withstand harsh Canadian winters.
• Commercial Structures: Durable and lightweight roofing solutions for warehouses and retail spaces.
• Industrial Facilities: Corrosion-resistant panels for factories and storage units.

Question and Answer Section

Q1. What are the benefits of using a steel roof roll forming machine in Canada?

A: Steel roof roll forming machines offer durability, precision, and high efficiency, making them ideal for Canada's diverse climate. They allow for the production of custom roofing panels tailored to specific requirements, ensuring optimal performance.

Q2. How can I customize roofing profiles for the Canadian market?

A: The machine's PLC control system allows for easy customization. You can adjust the width, material thickness, and profile design based on local market demands.

Q3. What materials can the machine process?

A: The machine is designed to process various metals, including galvanized steel, aluminum, and pre-painted steel, suitable for Canadian weather conditions.

Q4. How do I ensure compliance with Canadian safety standards?

A: Ensure the machine comes with essential safety features like emergency stops, protective guards, and compliance certifications. Consult with local authorities for additional guidelines.

Q5. What is the typical cost of a steel roof roll forming machine in Canada?

A: Prices vary based on machine specifications and optional features but typically range from CAD 50,000 to CAD 150,000. Request a quote from manufacturers to get an accurate estimate.

Q6. What maintenance is required for these machines?

A: Regular maintenance includes lubricating moving parts, inspecting and replacing worn rollers, and checking the PLC system for updates. Proper maintenance ensures prolonged machine life and consistent output.

Q7. Can I import these machines to Canada?

A: Yes, you can import these machines, but ensure they meet Canadian electrical and safety standards. Factor in import duties, shipping costs, and installation expenses.

Conclusion

Investing in a steel roof roll forming machine is a strategic decision for businesses in Canada’s roofing industry. These machines enhance production efficiency, ensure high-quality output, and offer the versatility to adapt to market demands. With proper maintenance and customization, they are invaluable assets for creating durable and weather-resistant roofing solutions in Canada.
