Steel Sheet Roll Forming Machine in Nicaragua
- Condition
- New
- Supplier
- Roll Forming Machines Nicaragua
- Country
- Nicaragua
- Listing ID
- 9461
Request a Quote
To express an interest in this machine please submit the form below.

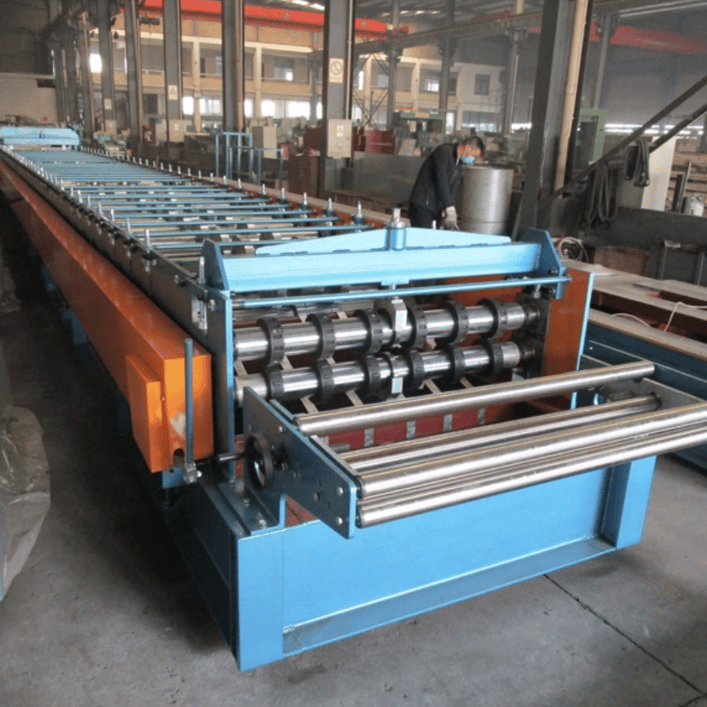

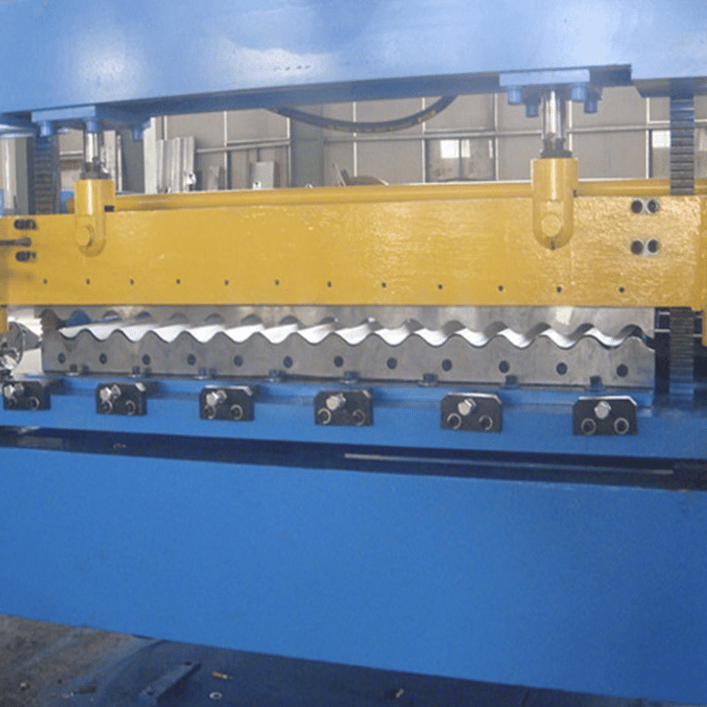

Floor Deck Iron Sheet Cold Roll Forming Making Machine for Building Material
|
Color steel sheet or galvanized steel sheet |
|
|
Material |
0. 8 -1.2 |
|
Yield strength(mpa) |
235 -345 |
|
Roller material |
45#Chrome steel |
|
Forming speed(m/min) |
About 15-20m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mov. |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor power(kw) |
11*2KW (Depend on final design) |
|
Hydraulic station power |
5.5K W (Depend on final design) |
|
Total power(kw) |
11KW |
|
Uncoiler's loading capacity |
Max. Capacity: 5000kgs (can be increased to be 10T) |
|
Machine`s size |
About 16*1.5*1.6m (Depend on final design) |
|
Machine weight |
About 16000kgs |
