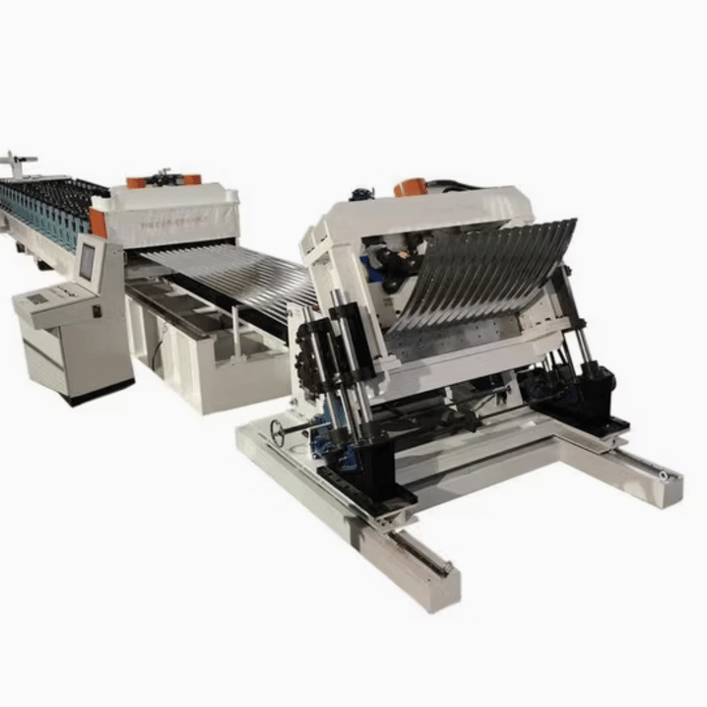

Steel Silo Roll Forming Machine in the USA

Steel silos are essential for bulk material storage, widely used in industries such as agriculture, construction, and manufacturing. A Steel Silo Roll Forming Machine is a specialized piece of equipment designed to manufacture silo panels with precision and efficiency. This machine ensures high-quality outputs, catering to the growing demand for steel silos in the USA and around the world.

Full Description of the Steel Silo Roll Forming Machine

The Steel Silo Roll Forming Machine is engineered to produce corrugated steel sheets or flat panels that can be assembled into silos for storing grain, cement, or other bulk materials. These machines are designed with durability, precision, and automation in mind, ensuring a streamlined production process.

• Automation: Most machines come with a fully automated PLC control system, minimizing manual intervention and ensuring consistent quality.
• Versatility: The machine can produce silo panels in various sizes and thicknesses to meet diverse requirements.
• High Efficiency: With advanced forming technology, the machine can produce large volumes of panels within a short time frame.

Specifications of the Steel Silo Roll Forming Machine

1. Material Capability:
   • Material: Galvanized steel, stainless steel, or carbon steel.
   • Thickness: 0.8 mm to 4.0 mm.
   • Width: Customizable based on silo requirements.
2. Machine Structure:
   • Frame: Heavy-duty steel construction for stability and durability.
   • Rollers: Chrome-plated steel rollers for long-lasting performance.
   • Cutting System: Hydraulic cutting for precise and burr-free edges.
3. Power and Speed:
   • Main Motor Power: 7.5 kW to 15 kW (depending on machine size).
   • Hydraulic Power: 5.5 kW to 11 kW.
   • Production Speed: 10-15 meters per minute.
4. Control System:
   • PLC (Programmable Logic Controller): Automated control for precise operations.
   • HMI (Human-Machine Interface): User-friendly touchscreen for easy operation.
5. Additional Features:
   • Decoiler: Automatic or manual decoilers for feeding raw material.
   • Leveling System: Ensures the steel coil is flat before forming.
   • Punching and Notching: For holes or notches as per design requirements.
6. Optional Extras:
   • Servo Feeder: Ensures smooth feeding of material.
   • Remote Monitoring: Allows operators to track production remotely.
   • Coil Handling Systems: For efficient material management.

Question and Answer Section

Q1: What types of silos can be manufactured with this machine?

A1: The machine is versatile and can produce panels for different types of silos, including grain silos, cement silos, and industrial silos used in construction or storage.

Q2: What is the average production capacity of the machine?

A2: Depending on the model and configuration, the machine can produce between 10-15 meters of panel per minute, allowing for the rapid assembly of large silos.

Q3: How is the machine maintained?

A3: Regular maintenance involves:

• Lubricating moving parts to prevent wear.
• Checking and tightening bolts and screws.
• Ensuring the hydraulic system is free of leaks.
• Cleaning the rollers to maintain surface quality.

Q4: Is the machine compatible with different power supplies in the USA?

A4: Yes, the machine is designed to operate on standard US power supplies (typically 220V or 480V, 60Hz). Customizations can be made for specific industrial setups.

Q5: Can the machine handle custom panel designs?

A5: Yes, the machine is equipped with a PLC system that allows for easy reprogramming to produce customized designs and profiles as per user requirements.

Q6: What is the average lifespan of the machine?

A6: With proper maintenance, the Steel Silo Roll Forming Machine can last 10-15 years, ensuring long-term productivity.

Q7: Are replacement parts readily available in the USA?

A7: Yes, most manufacturers provide spare parts and support for repairs. Ensure to source parts from authorized dealers for compatibility.
