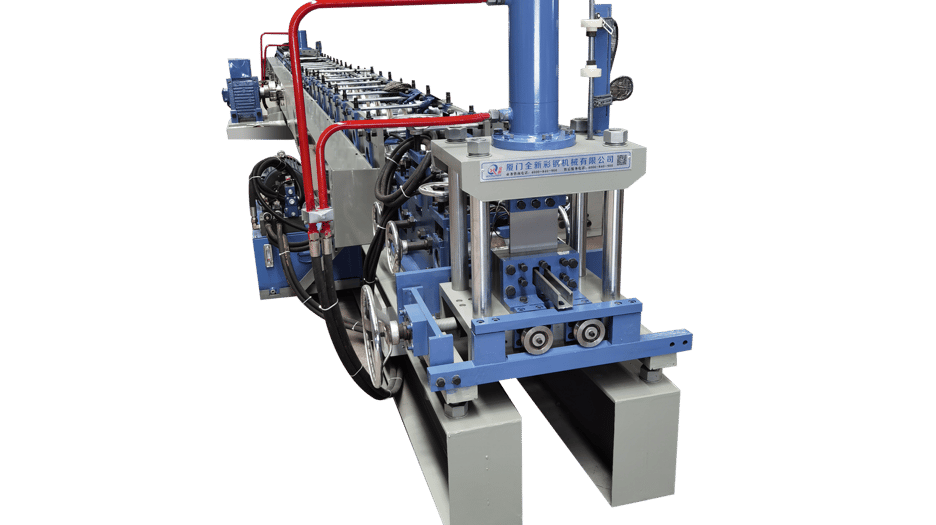

Steel Stud / Channel Roll Forming Machine 1.5–4 mm | Beenew, Xiamen, China

Beenew's Steel Stud Roll Forming Machine is a heavy-gauge line for studs, tracks, channels and C/U/T profiles, forming material from 1.5 to 4.0 mm. Web and flange sizes are adjustable, and the forming section keeps running while the hydraulic cutter works.

The profiles it makes are used as vertical framing in non-load-bearing walls, ceiling supports, plasterboard brackets and PV mounting rails. Beenew builds the machine to the customer's profile drawings, with high-speed forming, fast punching and fast cutting available.

Key Features

• Forms 1.5–4.0 mm material
• Adjustable web and flange sizes
• 24 forming stations, GCr15 rollers
• Cutting without stopping the forming section
• 20 length/quantity programmes on the touchscreen

Technical Specifications

• Uncoiler: 5 t manual; strip width 200–500 mm; ID 480–560 mm
• Feeding and levelling: Width 200–600 mm; 7 levelling rollers (3 upper, 4 lower); 45# steel HRC 48–52, chromed; 75 mm shafts
• Thickness: 1.5–4.0 mm
• Forming stations: 24
• Main motor: 22 kW
• Speed: 20 m/min (excluding cutting)
• Shafts: 45# steel, 75 mm
• Rollers: GCr15, tempered, chromed 0.05 mm
• Drive: 2" single chain
• Weight: About 10 t
• Cutting: Hydraulic, 11 kW, 16 MPa, Cr12 HRC 60–62, ±2 mm
• Control: Panasonic or Siemens PLC, Omron encoder, Yaskawa inverter

Applications

• Steel studs and tracks for drywall partitions
• Ceiling and plasterboard support systems
• Columns, supports and brackets
• Solar PV rails

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China

Frequently Asked Questions

• What thickness can it form? 1.5–4.0 mm.
• Can the size be changed? Yes. Web and flange sizes are adjustable.
• Does the line stop to cut? No. The forming section keeps running during cutting.
• What should I send for a quotation? Your profile drawings, material and thickness, lengths and output target.
