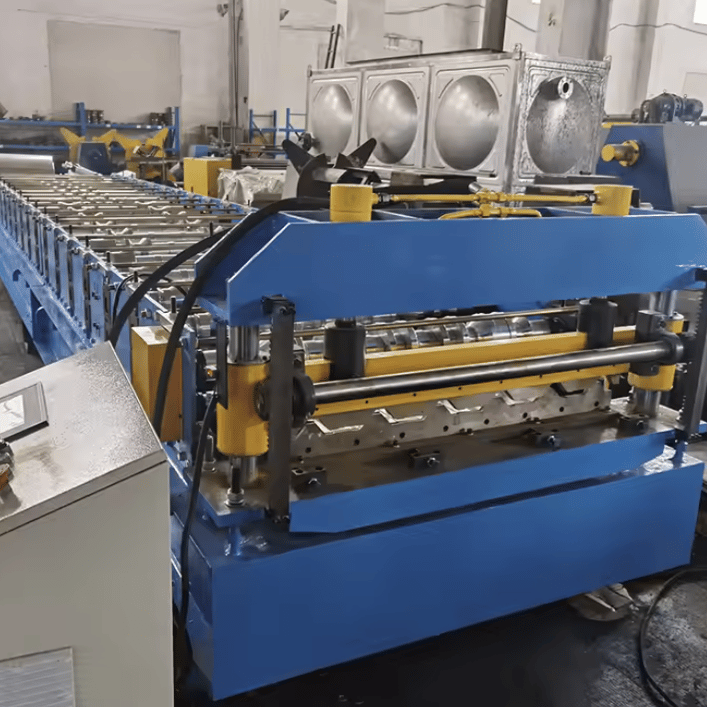

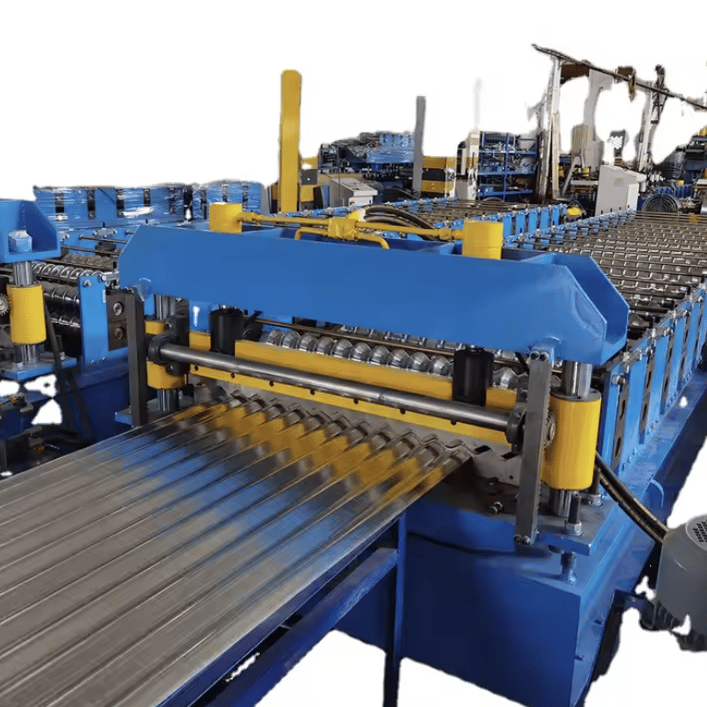

Step Tile Roll Forming Machine in the USA
- Condition
- New
- Supplier
- Roll Forming Machines United States
- Country
- United States
- Category
- Listing ID
- 10849
Request a Quote
To express an interest in this machine please submit the form below.
| Main power: | 11KW Siemens motor made in China |
| Machine Structure: | Separate stands tower,chromed on the surface of the stands ( see the picture) |
| Feeding form: | Side hand wheel adjustment manually |
| Roll forming stations: | 20 stations for upper layer |
| Way of drive: | single row 1.0 inch chain drive |
| Diameter of shaft: | ￠75mm |
| Material of shaft: | 40Cr refining (HB220-260) |
| Cutting system: | hydraulic flying shear( non-stop cutting)controlled by the servo motor |
| Roll forming stations: | 20 stations for upper layer |
| Way of drive: | single row 1.0 inch chain drive |
| Diameter of shaft: | ￠75mm |
| Material of shaft: | 40Cr refining (HB220-260) |
| Cutting system: | hydraulic flying shear( non-stop cutting)controlled by the servo motor |
