Step Tile Roll Forming Machine with Oiler and Coder | Beenew, Xiamen, China

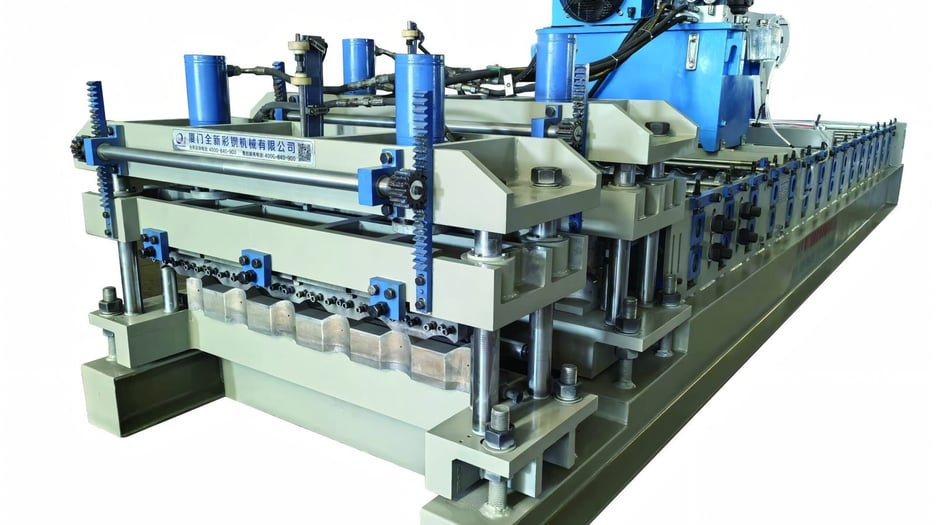

Beenew built this Step Tile Roll Forming Machine for a customer in Kazakhstan. It forms metal roof sheets with a stepped, tile-style profile, and adds two features specified by the customer.

An oil spraying unit lubricates the sheets during production, so they don't scratch each other in stacking and transport. A coder prints the customer's code on the back of each sheet, so the end buyer can trace where it was made.

Key Features

• Oil spraying unit to protect sheet surfaces
• Back-of-sheet coder for product traceability
• 20 forming stations on 80 mm forged shafts
• H-beam welded frame
• PLC with touchscreen and push-button operation

Technical Specifications

• Forming stations: 20
• Main motor: 11 kW, AC variable frequency; cycloid reducer, chain or gearbox drive
• Rollers: 45# steel, hard chrome plated and brushed
• Shafts: 45# forged steel, 80 mm
• Frame: Welded 346 × 174 mm H-section steel
• Pump motor: 3 kW
• Cutting: Hydraulic
• Control: PLC, touchscreen and buttons

Applications

• Tile-effect metal roofing for houses and villas
• Roofing for commercial and steel-structure buildings

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China
• Reference: Supplied to a customer in Kazakhstan

Frequently Asked Questions

• What does the oil sprayer do? It lubricates the sheets so they don't scratch when stacked and moved.
• What does the coder print? A code chosen by the customer, on the back of each sheet, for traceability.
• Can it be built without these options? Yes. Beenew configures each machine to order.
• What should I send for a quotation? Your step tile profile drawing, material and thickness, coil width and the options you need.
