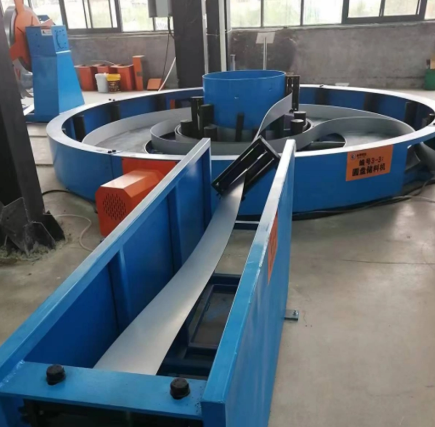

Jinbolida Strip Accumulator – Non-Stop Strip Feeding During Coil Changes

The Jinbolida Strip Accumulator stores a buffer of steel strip in a controlled loop between the uncoiler and the forming machine. When the uncoiler stops to change coils, or while the end of one coil is welded to the start of the next, the stored strip continues to feed the line, so the forming machine doesn't have to stop. The accumulator also provides constant-tension buffering that smooths out speed differences between the entry and exit of the line, helping prevent tension variation and surface scratches caused by frequent stopping and starting. PLC control manages feeding, storage, discharge and loop level automatically.

How It Works

• Strip from the uncoiler is fed into the accumulator and stored in a loop
• During normal running, the loop level is monitored and maintained by the PLC
• When the coil is changed or joined, stored strip continues to feed the line
• Once the new coil is running, the accumulator refills

Key Features

• Keeps the downstream line running during coil changes and strip joining
• Constant-tension buffering between entry and exit sections
• Smooths speed fluctuations to protect strip quality and surface finish
• PLC control of feeding, storage, discharge and loop level
• Reduces manual intervention during coil changes
• Improves overall equipment effectiveness (OEE) of the line

Applications

• Roll forming lines for purlins, channels and solar brackets
• Tube and pipe mills
• Cut-to-length and slitting lines
• Other continuous strip processing lines

Commercial Details

• Brand: Jinbolida
• Manufacturer: Shandong Jinbolida Precision Machinery Co., Ltd.
• Place of origin: Heze, Shandong, China

Frequently Asked Questions

• What does a strip accumulator do? It stores strip so the line can keep running while coils are changed or joined.
• Does it help strip quality? Yes. Constant-tension buffering reduces tension variation and surface scratches.
• How is it controlled? By a PLC that manages feeding, storage, discharge and loop level.
• Is there a model with published specifications? Yes. See Jinbolida's Vertical Strip Looper, which stores 500–800 m of 100–400 mm strip at up to 80–100 m/min.
• What should I send for a quotation? Strip width and thickness range, material grade, line speed, coil weights and coil change time.
