Suspended Ceiling U Channel Roll Forming Machine – UAE
Suspended Ceiling U Channel Roll Forming Machine – UAE Market Edition
High-Precision Forming Equipment for Lightweight Steel Framing
Product Overview
The Suspended Ceiling U Channel Roll Forming Machine is a precision-engineered solution designed for the fast, efficient production of U-shaped ceiling support channels, widely used in lightweight ceiling framing systems across commercial, residential, and industrial construction projects in the United Arab Emirates (UAE). Built to meet the performance expectations of UAE’s booming construction and interior fit-out sectors, this roll forming machine is fully automated, energy-efficient, and capable of continuous, high-speed production with excellent dimensional accuracy.
Whether you’re producing U channels for suspended ceiling grids in office buildings in Dubai, hospitality spaces in Abu Dhabi, or residential developments in Sharjah, this machine ensures consistent output, reduced labor, and long-term reliability.
Machine Technical Specifications
| Feature | Specification |
|---|---|
| Machine Type | Suspended Ceiling U Channel Roll Forming Machine |
| Production Speed | 30–45 meters per minute |
| Material Thickness Range | 0.3 mm – 0.7 mm |
| Material Width Range | 80 mm – 160 mm |
| Material Types | Galvanized Steel, Aluminum, Pre-painted Steel |
| Material Yield Strength | Up to 350 MPa (51 ksi) |
| Roller Material | High-grade GCr15 (chromium bearing steel) |
| Roller Surface Treatment | Hard chrome-plated |
| Number of Forming Stations | 10–16 (customizable) |
| Roller Shaft Diameter | 40–50 mm |
| Shaft Material | Solid 45# steel, precision-ground |
| Main Drive Type | Chain or Gear Drive |
| Power (UAE specific) | 380V, 3-Phase, 50Hz |
| Motor Power | 4–5.5 kW (depending on design) |

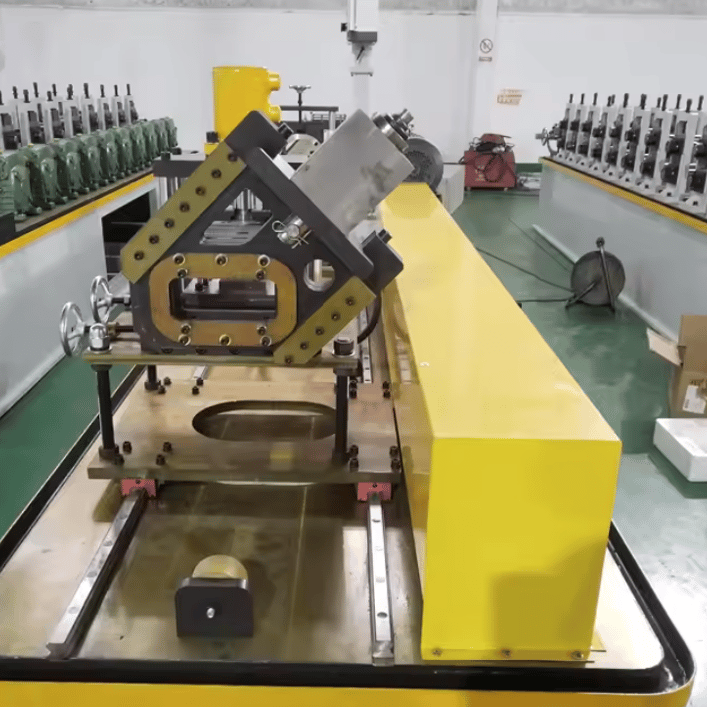

| Cutting Method | Hydraulic post-cut system |
| Blade Material | Cr12Mov (heat treated, HRC 58–62) |
| Control Type | PLC (Panasonic/Siemens optional) |
| Operating Mode | Fully Automatic with Touchscreen HMI |
| De-coiling System | Manual or hydraulic de-coiler (3T–5T optional) |
| Punching/Notching System | Optional hydraulic or servo punching |
| Machine Frame | Welded 300H steel structure |
| Thickness of Frame Steel | 16–20 mm |
| Profile Shape | U Channel |
| Profile Width and Depth | Customizable (e.g., 38x25 mm, 50x19 mm, etc.) |
| Length Tolerance | ±1.0 mm |
| Safety Features | Protective Covers, Emergency Stop, Overload Protection |
Industries Served
This machine is essential for companies involved in:
- Interior Fit-Out & Partitioning
- Drywall & Ceiling Contractors
- Commercial Building Construction
- Prefab Building Fabrication
- Warehouse & Retail Construction
Applications in Industry
- Producing U main channels and furring carriers for T-grid suspended ceiling systems
- Lightweight steel ceiling grid framing
- Hidden ceiling support channels in MEP installations
Material Gauge & Strength
Most commonly used materials include:
- Galvanized Steel (G90 or G60)
- Pre-painted GI or Aluminum Coils
- Standard Gauge: 0.35 mm to 0.6 mm
- Yield Strength Range: 230–350 MPa (33–51 ksi)
Pricing Information
- Prices start from: $36,000 USD depending on:
- Required punching units
- Number of forming stations
- Motor and control brand
- Coil handling equipment
Note: Final pricing is determined by customizations, profile sizes, and optional systems. Please contact us with profile drawings and requirements for a tailored quote.
Email drawings and specifications to: [email protected]
UAE Delivery & Customization
All machines are new and custom-built, based on your specific profile and output needs, with delivery available throughout the UAE, including Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, and beyond.
Highlighted Advantages & Unique Selling Points (USPs)
| USP | Buyer Benefit |
|---|---|
| Custom Profile Molds | Match any U channel ceiling spec without costly tooling changes |
| High-Speed Output | Increases daily productivity and reduces labor costs |
| Chrome-Plated Rollers | Reduces maintenance and ensures smooth finish on output profile |
| Fully Automated PLC Control | Minimizes operator error and enables easy length adjustments |
| Precision Hydraulic Cutting | Clean, burr-free cuts and reduced wastage |
| Energy-Efficient Motor Design | Lower operating costs for UAE industrial environments |
| Optional Servo Punching | Add slots or notches in-line without secondary processing |
Customization Options
- Variable U profile sizing sets
- Servo punching modules (for custom holes or slots)
- Automatic stacking systems
- Coil car + hydraulic uncoilers
- Remote monitoring and PLC upgrades
- Color-coded and branded panel exteriors
Warranty & Support
- 1-Year Warranty from date of dispatch
- Spare parts and repair support available
- Installation and training packages optional
Frequently Asked Questions (FAQ)
Q1: What is the lead time for this machine in the UAE?
A: Standard production and shipping time is 45–60 days, depending on customization.
Q2: Can I run different U channel sizes on one machine?
A: Yes, with interchangeable tooling sets or an adjustable design.
Q3: Is the machine easy to operate for first-time users?
A: Absolutely. It includes touchscreen PLC control with multi-language support and a full operator manual.
Q4: What kind of maintenance is required?
A: Regular lubrication, bolt tightening, and checking roller alignment monthly. We provide full documentation and remote support.
Q5: Does Machine Matcher offer on-site setup in the UAE?
A: Yes, installation and operator training are available across all Emirates.
For more information or a personalized quote, email your requirements and profile drawings to
[email protected]
Machine Matcher – Your trusted source for ceiling grid roll forming machines, precision-engineered for performance in the UAE.
