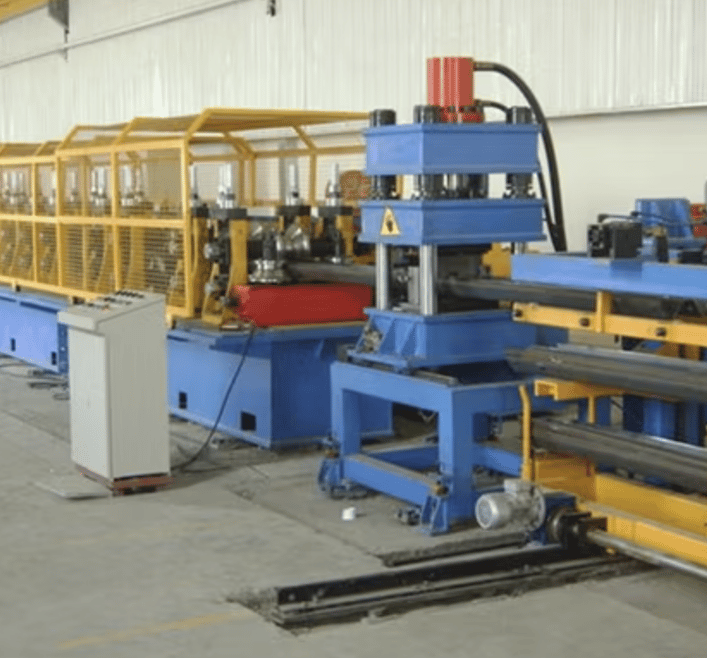

Trailer Side Board Roll Forming Machine in Canada

The trailer side board roll forming machine is a specialized piece of equipment designed for producing high-quality, durable trailer side boards. These side boards are used in trailers for agricultural, industrial, and transportation applications. The machine can handle various metal materials and is highly versatile, offering precision and efficiency for Canadian manufacturers.

This roll forming machine automates the production of trailer side board profiles, reducing labor costs and increasing production efficiency. With its advanced control system and robust construction, it is an essential investment for businesses in Canada seeking reliable and consistent manufacturing solutions.

Machine Specifications

1. Roller Materials:
   • High-grade GCr15 steel with hard chrome plating for wear resistance and longevity.
2. Material Capability:
   • Steel, aluminum, and galvanized sheets.
   • Material thickness: 0.8mm to 3.0mm.
   • Material width: Up to 1250mm.
3. Machine Speed:
   • Standard speed: 10-15m/min.
   • High-speed options available up to 25m/min.
4. Cutting System:
   • Hydraulic cutting system with precision tolerances of ±0.5mm.
   • Material: Cr12 steel blade with heat treatment.
5. Frame Size:
   • Heavy-duty steel frame for stability and durability.
   • Dimensions: Customizable based on requirements.
6. Power Supply:
   • Voltage: 380V/50Hz/3Phase (customizable for Canadian standards).
   • Motor Power: 7.5kW to 15kW, depending on the configuration.
7. PLC Control System:
   • Advanced PLC system with touchscreen interface.
   • Brands: Siemens or Mitsubishi for reliability.
8. Punching and Notching:

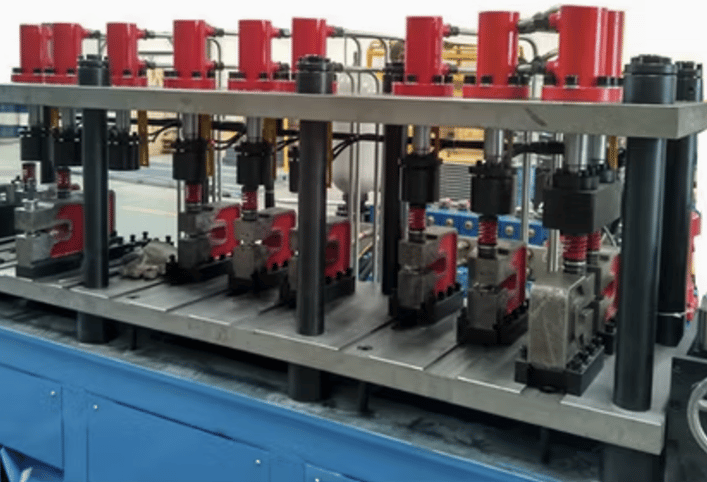

   • Servo-driven punching system for precise holes and slots.
   • Adjustable punch patterns based on the side board design.
9. Safety Features:
   • Emergency stop buttons.
   • Safety guards and enclosures for operator protection.
10. Optional Features:
    • Automatic stacker for efficient product handling.
    • Uncoilers and recoilers for streamlined material management.
    • Remote monitoring and troubleshooting capabilities.

Applications

• Agricultural trailers.
• Industrial transport vehicles.
• Utility trailers for cargo.

Question and Answer Section

Q1: What materials can the trailer side board roll forming machine process?

The machine can process steel, aluminum, and galvanized sheets with thicknesses ranging from 0.8mm to 3.0mm. This versatility makes it suitable for different trailer manufacturing needs in Canada.

Q2: Is the machine compatible with Canadian electrical standards?

Yes, the machine can be customized to operate on Canadian electrical standards, typically 380V/50Hz/3Phase. Other voltage configurations are also available upon request.

Q3: How is the machine maintained?

Regular maintenance includes cleaning the rollers, checking the hydraulic system, and lubricating moving parts. The PLC system also provides alerts for maintenance schedules, ensuring optimal performance.

Q4: Can the machine produce multiple trailer side board designs?

Yes, the machine is highly versatile and can be configured to produce various side board designs by adjusting the rollers and punches.

Q5: What is the delivery time for the machine in Canada?

Delivery times depend on the configuration and optional features selected. Typically, it ranges from 8 to 12 weeks.

Q6: What industries benefit most from this machine in Canada?

Industries that manufacture agricultural trailers, cargo transport vehicles, and utility trailers benefit significantly from this machine. It ensures precise and efficient production tailored to industry needs.

Q7: Is training available for Canadian operators?

Yes, training sessions are available for Canadian operators, either on-site or remotely. Detailed user manuals and instructional videos are also provided.

Q8: How does the machine ensure product quality?

The advanced PLC control system ensures precise measurements and consistent output. High-quality rollers and cutting blades maintain the accuracy and finish of the side boards.

Conclusion

The trailer side board roll forming machine is a vital asset for Canadian manufacturers looking to enhance production efficiency and product quality. Its robust design, customizable options, and advanced features make it a reliable choice for trailer side board production. Whether for agricultural, industrial, or transportation needs, this machine delivers outstanding performance and value.
