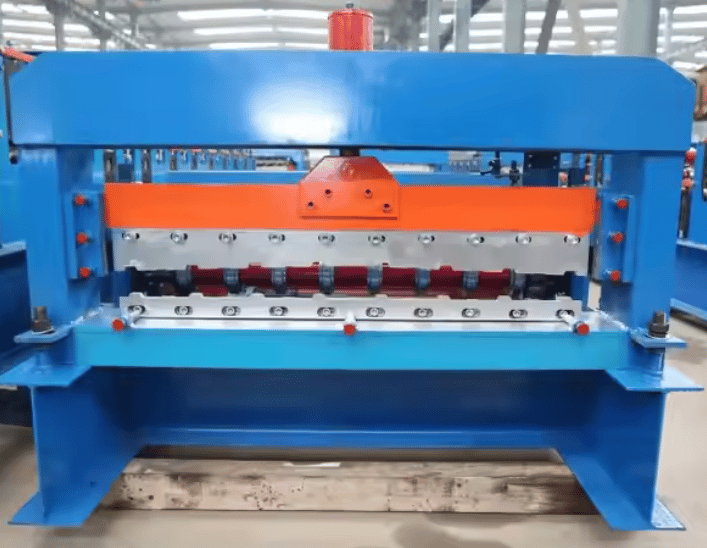

Type B Roof Deck Roll Forming Machine – United Arab Emirates
Type B Roof Deck Roll Forming Machine – United Arab Emirates (UAE)
Custom-Built for High-Performance Roofing Applications Across Abu Dhabi, Dubai, Sharjah & All Emirates
Product Description
The Type B Roof Deck Roll Forming Machine is engineered for producing high-strength steel decking panels with a characteristic B-profile rib, widely used in commercial, industrial, and institutional roofing applications throughout the UAE. Known for its durability and versatility, the Type B roof deck provides excellent structural performance and serves as a superior substrate for waterproofing membranes and insulation systems.
This advanced roll forming machine is designed to meet the growing demand for localized, precision-formed metal roof decking. It offers high-speed continuous production, tight length tolerances, and customized profile dimensions, making it the ideal solution for UAE-based manufacturers, roofing contractors, and construction material suppliers.
Machine Matcher supplies this machine fully configured and tested, with delivery available anywhere in the UAE. All machines are new, custom-built to match your profile requirements, and supported by a 1-year warranty and technical maintenance program.
Industries That Use Type B Roof Deck Machines in UAE
- Commercial Construction (office buildings, malls, warehouses)
- Industrial Infrastructure (factories, steel buildings, hangars)
- Institutional Projects (hospitals, schools, stadiums)
- Modular & Pre-engineered Building Systems
- Roofing Contractors & Steel Decking Fabricators
Type B deck is favored in the UAE for its 1.5” deep ribs, 36” coverage, and compatibility with both steel trusses and concrete roofing systems.
Machine Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | Type B Roof Deck Roll Forming Machine |
| Production Speed | 12–20 meters/min (standard), up to 30m/min with high-speed configuration |
| Material Thickness Range | 0.75 mm to 1.5 mm |
| Material Width Range | 914 mm to 1220 mm |
| Material Types | Galvanized Steel (GI), Cold Rolled Steel (CR), Galvalume, PPGI |
| Material Yield Strength | Up to 550 MPa |
| Roller Material | GCr15 (high-grade bearing steel) |
| Roller Surface Treatment | Hard chrome plating for anti-rust and wear resistance |
| Number of Forming Stations | 20–26 stations (customizable) |
| Roller Shaft Diameter | 80 mm (standard) |
| Shaft Material | 45# steel, quenched and tempered |
| Main Drive Type | Gearbox-driven (for precision and power) |
| Power Supply (UAE Compatible) | 380V, 50Hz, 3-phase |
| Motor Power | 15–22 kW depending on configuration |
| Cutting Method | Hydraulic post-cut system |
| Blade Material | Cr12MoV, heat-treated |
| Control Type | PLC with HMI touchscreen (Siemens, Delta, or Mitsubishi) |
| Operating Mode | Fully automatic (feeding–forming–cutting) |
| De-coiling System | Hydraulic or manual decoiler (3–10 ton optional) |
| Punching/Notching System | Optional hydraulic pre-punching system |
| Machine Frame | Welded steel base with annealed structure |
| Thickness of Frame Steel | 20–25 mm sidewall thickness |
| Profile Shape | Type B Rib Roof Deck |
| Profile Width and Depth | 36” width, 1.5” rib depth (customizable) |
| Length Tolerance | ±1.0 mm |
| Safety Features | Fully enclosed safety guards, warning lights |
| Emergency Stop Button, Overload Protection System |
Prices Start From
USD $85,000
(FOB price range based on standard configuration)
What Affects the Final Price?
- Profile customization (rib design, coverage width)
- Speed and automation level
- Brand of control system (Siemens, Mitsubishi, Delta, etc.)
- Type of decoiler (manual vs. hydraulic)
- Punching or notching systems
- Coil handling and stacker systems
- Country-specific compliance or certifications
To receive an accurate quotation tailored to your specifications, send your profile drawing and requirements to [email protected].
Location
All machines are new and custom-built, shipped directly from our certified partner factories. Delivery and setup are available across the UAE, including:
- Abu Dhabi
- Dubai
- Sharjah
- Ajman
- Ras Al Khaimah
- Fujairah
- Al Ain
Warranty & Support
- 1-Year Warranty from dispatch date
- Remote technical support, spare parts availability
- Optional setup and training packages in the UAE
Frequently Asked Questions (FAQ)
Q1: What is the maximum material thickness this machine can handle?
A: The machine can handle material from 0.75 mm up to 1.5 mm, depending on your profile design and project needs.
Q2: Can I order a machine that produces a different width or rib height?
A: Yes. This machine is custom-built and we can adjust profile dimensions based on your drawing or sample.
Q3: Does the machine include a decoiler?
A: A manual or hydraulic decoiler is optional. Most clients in the UAE opt for a 5-ton hydraulic decoiler with speed control.
Q4: Is operator training provided?
A: Yes, remote training is included. On-site training and setup assistance in the UAE can be arranged upon request.
Q5: How long does it take to manufacture and ship to the UAE?
A: Standard production time is 40–60 days, followed by shipping and customs clearance. We offer full support throughout.
Q6: What is the difference between Type B and Type N deck?
A: Type B has 1.5” ribs and 36” coverage, making it ideal for roofs. Type N has 3” ribs for longer spans and heavier loads.
Summary
The Type B Roof Deck Roll Forming Machine is the perfect solution for UAE-based metal deck manufacturers, roofing system suppliers, and construction material companies. With high-speed precision forming, localized power compatibility, and profile customization, it provides a complete solution for producing durable and standardized B-deck roofing panels.
For the best quote, email your profile drawing, thickness, material type, and target output to:
[email protected]
Request a quote
We’ll respond within one business day
