U Channel Roll Forming Machine | Beenew, Xiamen, China

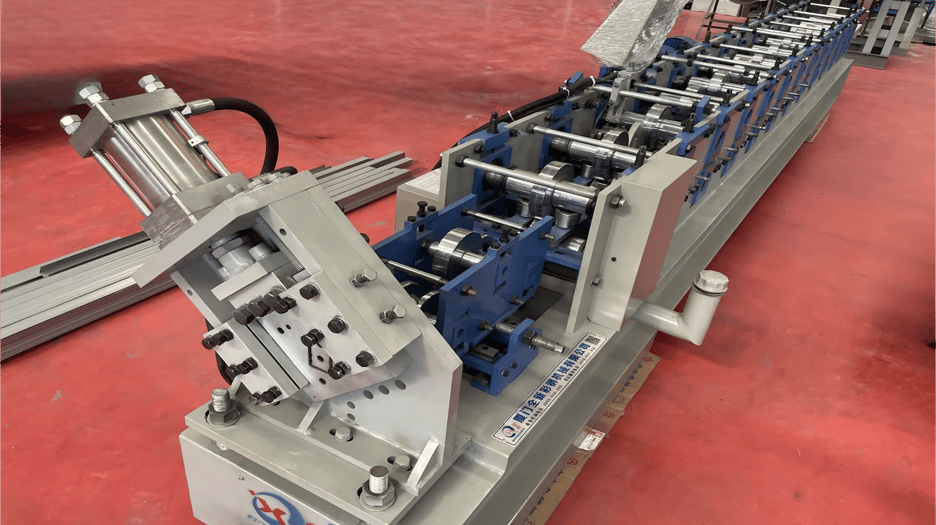

Beenew's U Channel Roll Forming Machine forms U-shaped channels from galvanised steel coil. This machine was built for a customer in Japan, who uses the channels as ceiling keel and decorative building profiles.

U channels are also used for structural support, as edge protection for panels, and as cable trunking. Beenew builds U channel machines in a range of sizes to the customer's drawing.

Key Features

• 20 m/min forming speed for high-output lines
• GCr15 bearing steel rollers, CNC-machined, heat-treated and hard-chromed
• Heat-treated Cr12 post cutter on a 30 mm steel frame
• Frequency-controlled main drive

Technical Specifications

• Material thickness: 0.8–1.5 mm
• Forming stations: 12
• Speed: 20 m/min
• Main motor: 15 kW, frequency speed control
• Shafts: 45# steel, 80 mm
• Rollers: GCr15, CNC-machined, heat-treated, hard chrome
• Decoiler: Manual, 3 t, feed width up to 500 mm, coil ID 470 ±30 mm
• Cutting: Hydraulic post-cut, Cr12, 5.5 kW, 0–16 MPa

Applications

• Ceiling keels and suspended ceiling channels
• Decorative building profiles
• Edge protection and cable trunking

Commercial Details

• Brand: Beenew
• Manufacturer: Xiamen Beenew Machinery Co., Ltd.
• Place of origin: Xiamen, Fujian, China
• Warranty: 2 years, parts and machine
• Reference: Supplied to a customer in Japan

Frequently Asked Questions

• What thickness can it form? 0.8–1.5 mm.
• How fast is it? 20 m/min.
• Can it be built for other U sizes? Yes. Beenew builds U channel machines to your drawing.
• What should I send for a quotation? Your channel drawing, material and thickness, lengths and output target.
