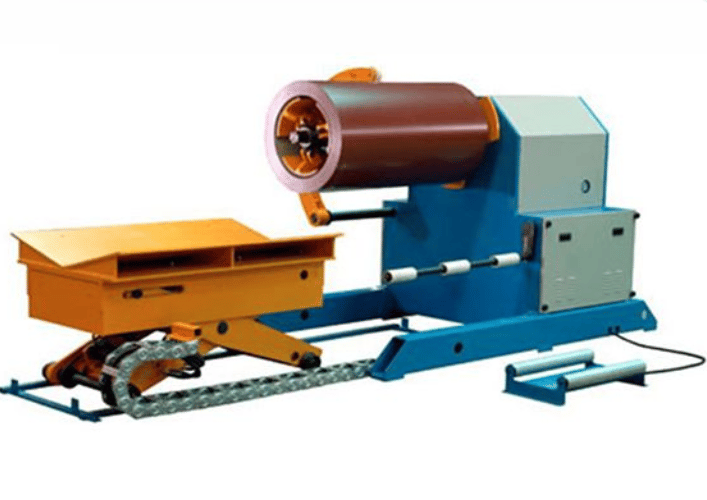

Uncoiler in Shaoxing City, China
Uncoiler JK
Our uncoiler is suitable for the uncoiling and conveying of thin metal sheets. It primarily consists of the main machine, tension device, arm hold down device, ultrasonic control device, electric control system and independent hydraulic system. Our stacker is innovative in design, and has received 2 patents of utility model. Automatic material loading and hydraulic tensioning are available.
Technical Specifications for Uncoiler
| Item | Parameter | Remark |
| Uncoiling motor power | 2.2 kW | |
| Hydraulic station power | 3 kW | |
| Uncoiling speed | Less than 50 m/min | |
| Suitable coil inside diameter | φ508/φ610 mm | |
| Suitable coil width | 1000~1250 mm | |
| Suitable coil outside diameter | Less than φ1300 mm | In case of any contradictory, performance parameter is put in the first place. |
| Rated load capacity | Less than 6 t | |
| Outline dimensions (LXWXH) | 2600×1400×1700 mm |
