Used 5A352PF2 Spline Milling Machine | A.K. Machine Traders, Navi Mumbai, India

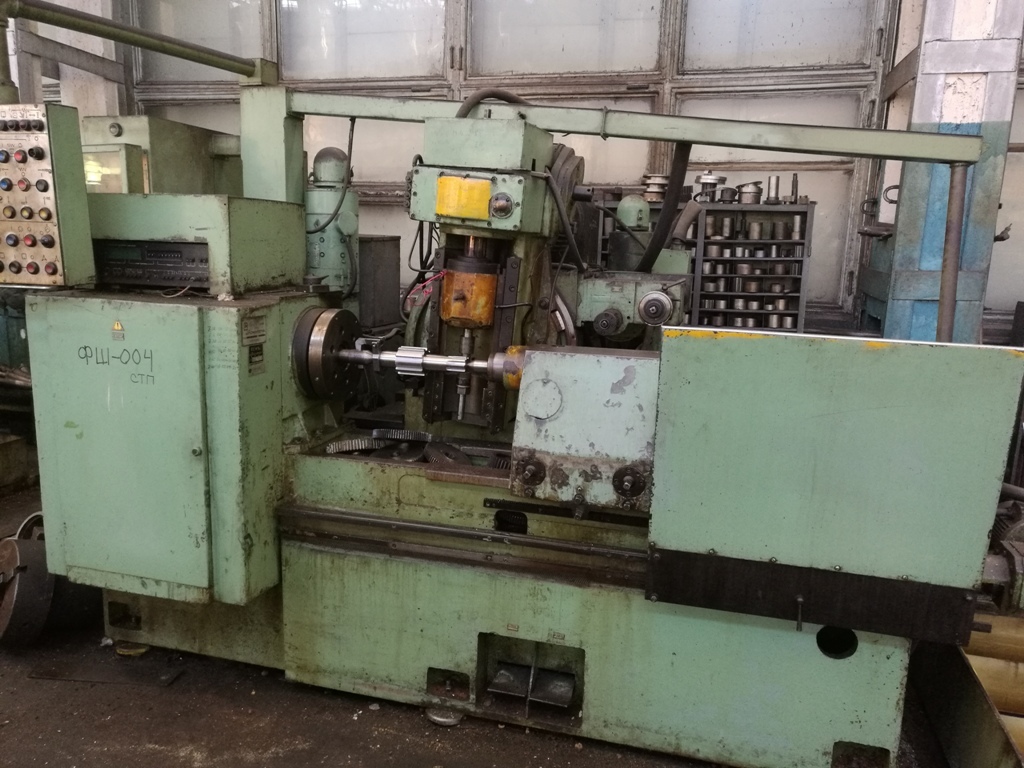

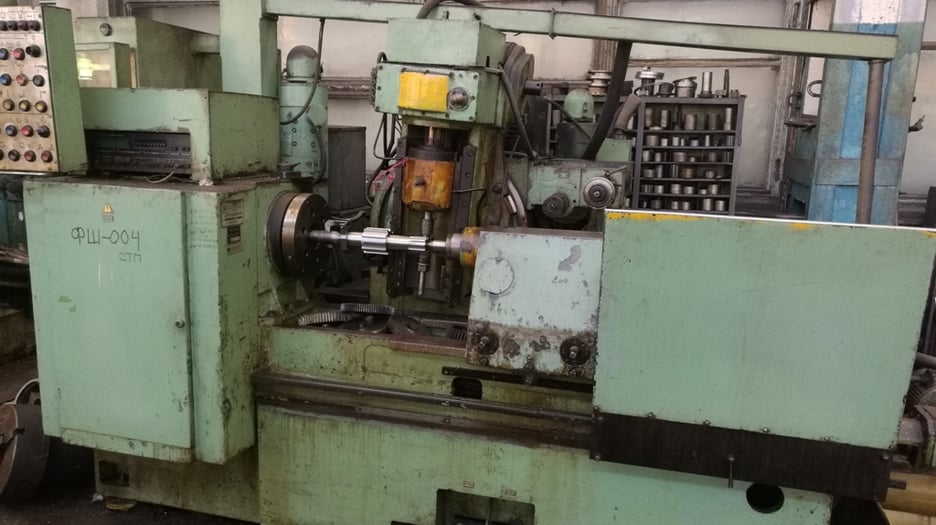

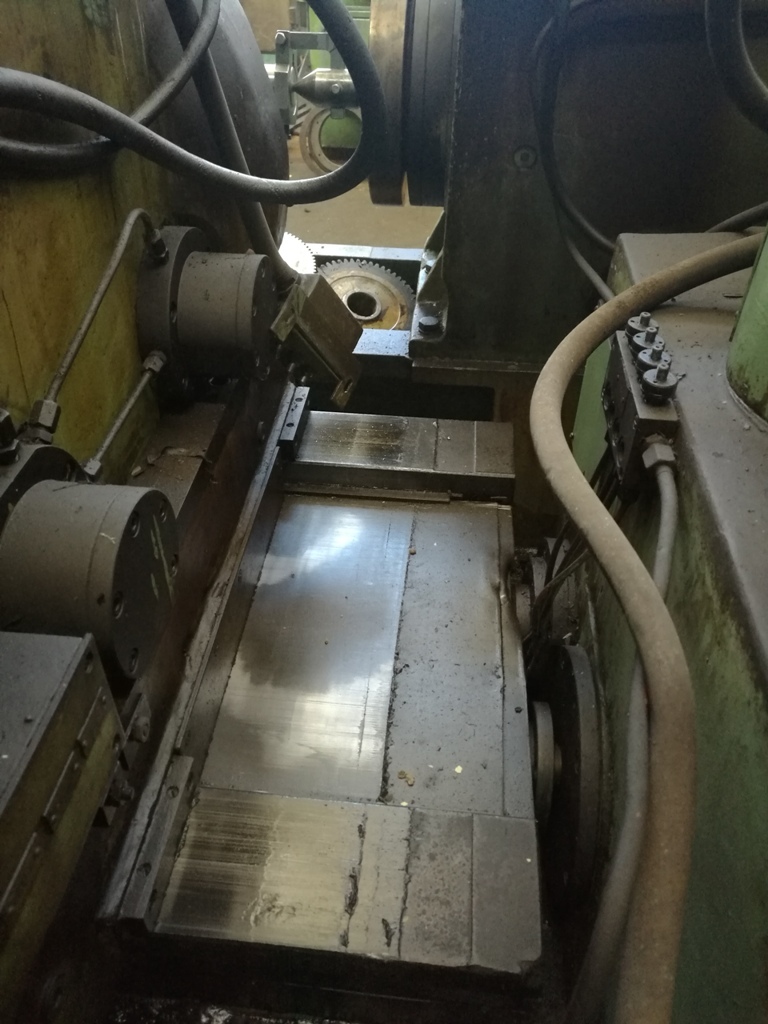

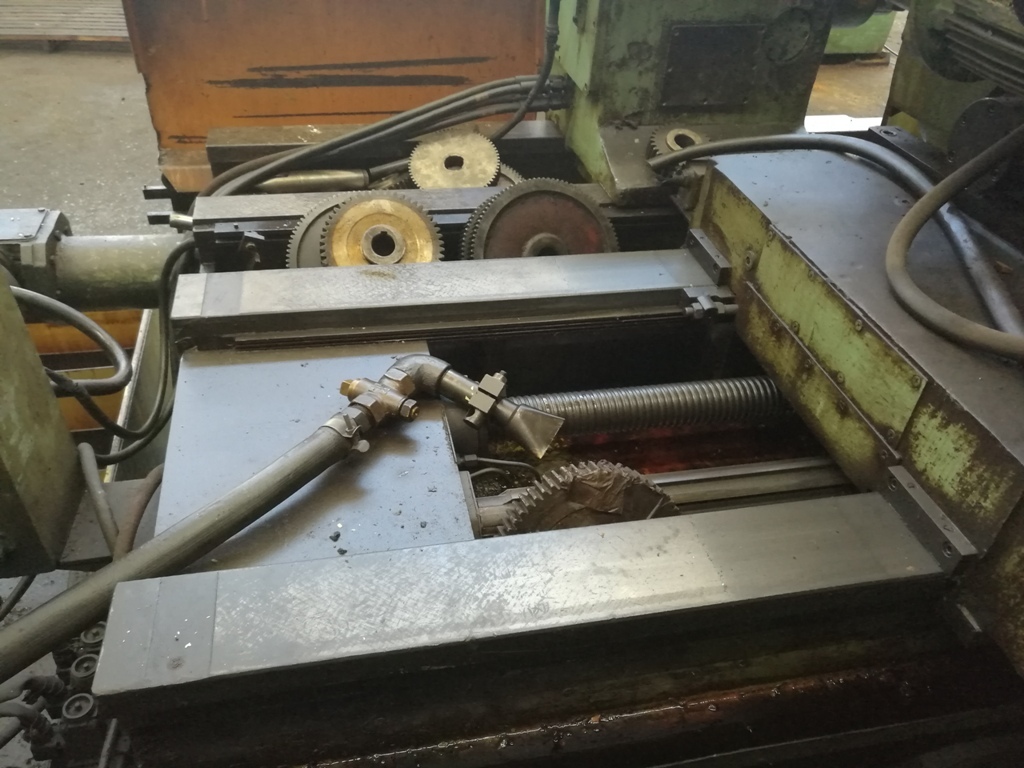

This used 5A352PF2 spline milling machine is available from A.K. Machine Traders in Navi Mumbai, India. It cuts splines and gear teeth on shafts and similar workpieces using a worm cutter.

It takes workpieces up to 500 mm in diameter, with 1,080 mm between centres and a maximum spline cutting length of 880 mm. It cuts teeth up to module 8 and can be set to a tooth inclination of up to 30 degrees.

Key Features

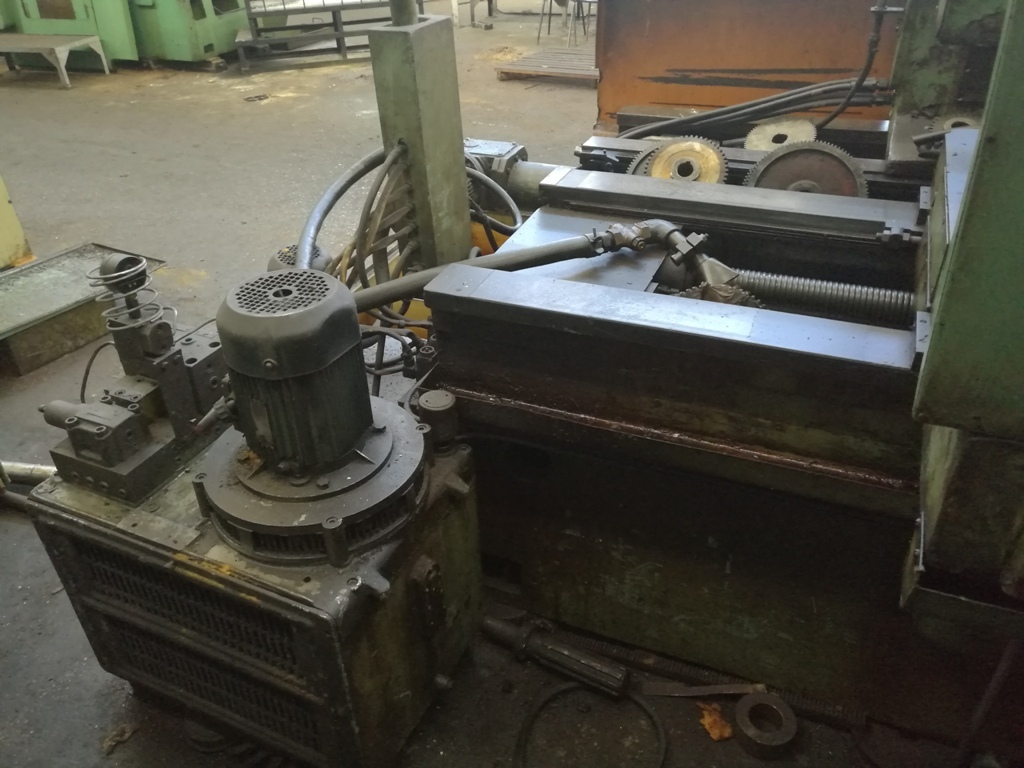

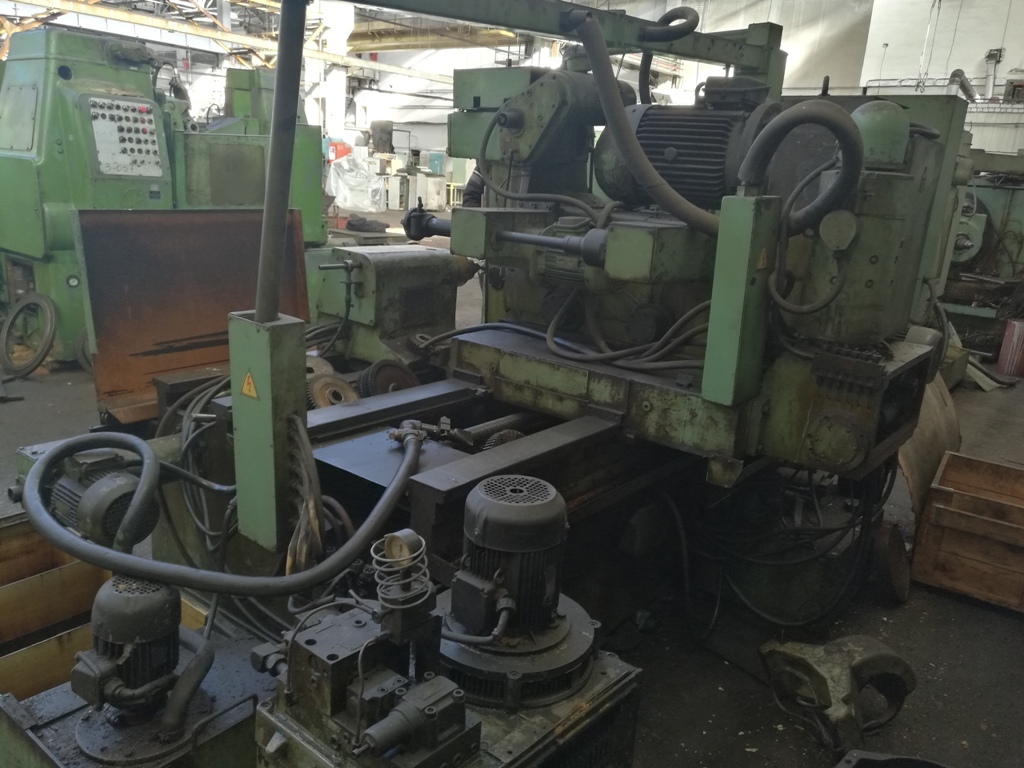

• Remote equipment: separate electrical cabinet, cooling tank and hydroelectric unit
• Separate motors for main drive, slide, support turning, radial and longitudinal feed, cutter axial movement, screw drive, hydraulics, lubrication and cooling
• Axial positioning accuracy of ±0.01 mm

Technical Specifications

• Model: 5A352PF2
• Height of centres above guides: 300 mm
• Distance between centres: 1,080 mm
• Max. workpiece diameter: 500 mm
• Workpiece length: 165–1,000 mm
• Max. diameter of processed billets: 200 mm
• Max. length of cut splines: 880 mm
• Largest module of cut teeth: 8
• Max. tooth inclination angle: 30°
• Workpiece spindle bore: 90 mm
• Face plate: 315

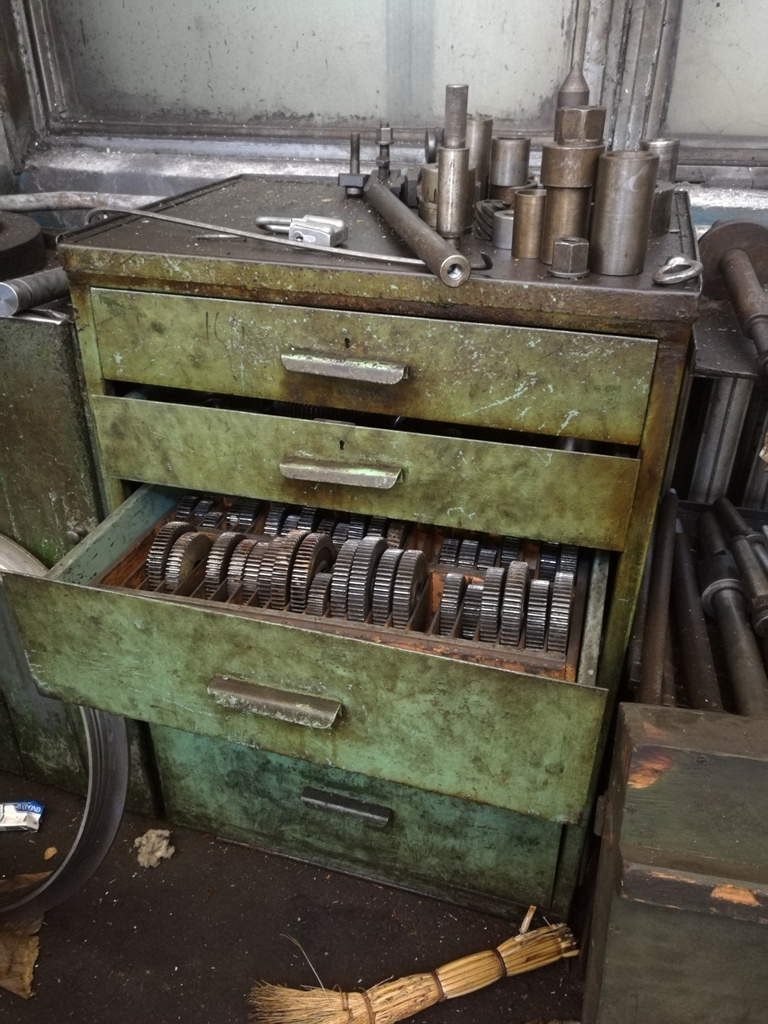

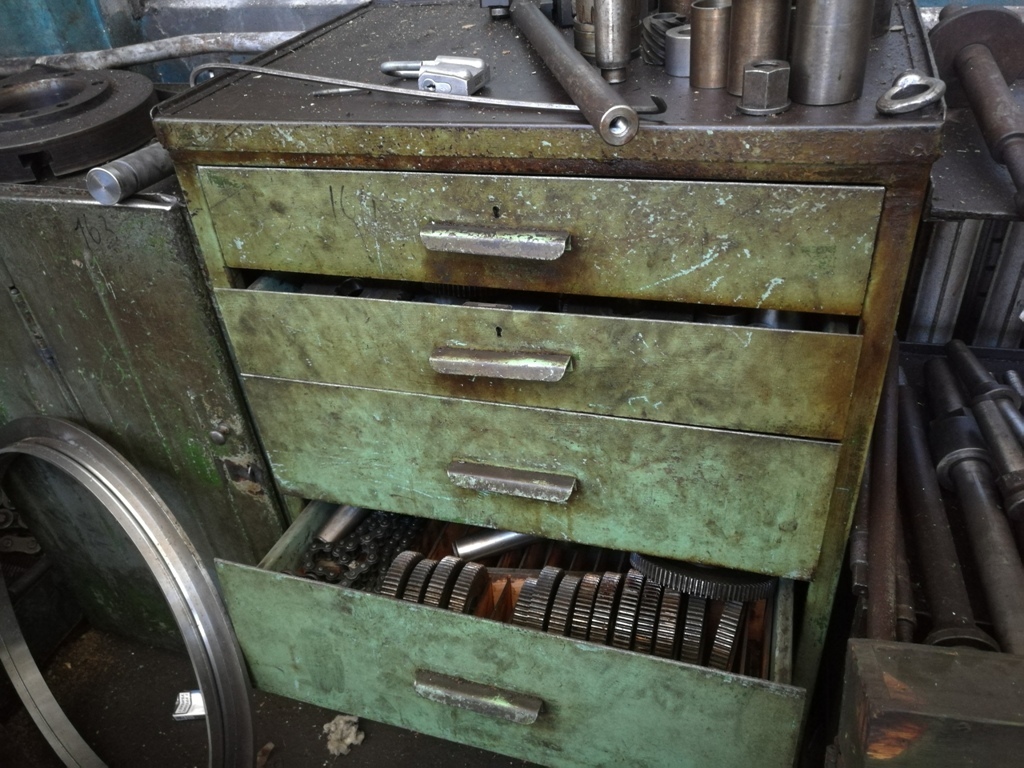

• Max. worm cutter size: Ø160 mm × 200 mm long
• Axial feed: 2–100 mm/min
• Radial feed: 2–50 mm/min
• Axial positioning accuracy: ±0.01 mm
• Main drive motor: 5 / 6.3 / 10 kW
• Accelerated slide movement motor: 4 kW
• Support turning motor: 1.1 kW
• Radial feed and rapid rack movement motor: 2 kW
• Longitudinal feed motor: 2 kW
• Cutter axial movement motor: 0.53 kW
• Screw drive motor: 0.75 kW
• Hydraulic drive motor: 2.2 kW
• Lubrication pump: 0.27 kW
• Cooling pump: 0.7 kW
• Dimensions without remote equipment: 3,100 × 2,270 × 2,100 mm
• Dimensions with remote equipment: 3,540 × 2,515 × 2,100 mm
• Electrical cabinet: 1,150 × 300 × 1,600 mm
• Cooling tank: 1,675 × 575 × 652 mm
• Hydroelectric unit: 700 × 430 × 1,200 mm
• Total weight: 8,500 kg

Applications

• Splined shafts
• Gear shafts and pinions
• Worm-cut gear teeth up to module 8
• Helical teeth up to 30° inclination

Commercial Details

• Model: 5A352PF2
• Year: 1986
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it take? It takes workpieces up to 500 mm in diameter and 165–1,000 mm long, with 1,080 mm between centres.
• What is the largest tooth it can cut? It cuts teeth up to module 8, with an inclination of up to 30 degrees.
• How heavy is the machine and what space does it need? It weighs 8,500 kg and measures 3,100 × 2,270 × 2,100 mm, or 3,540 × 2,515 × 2,100 mm with the remote equipment.

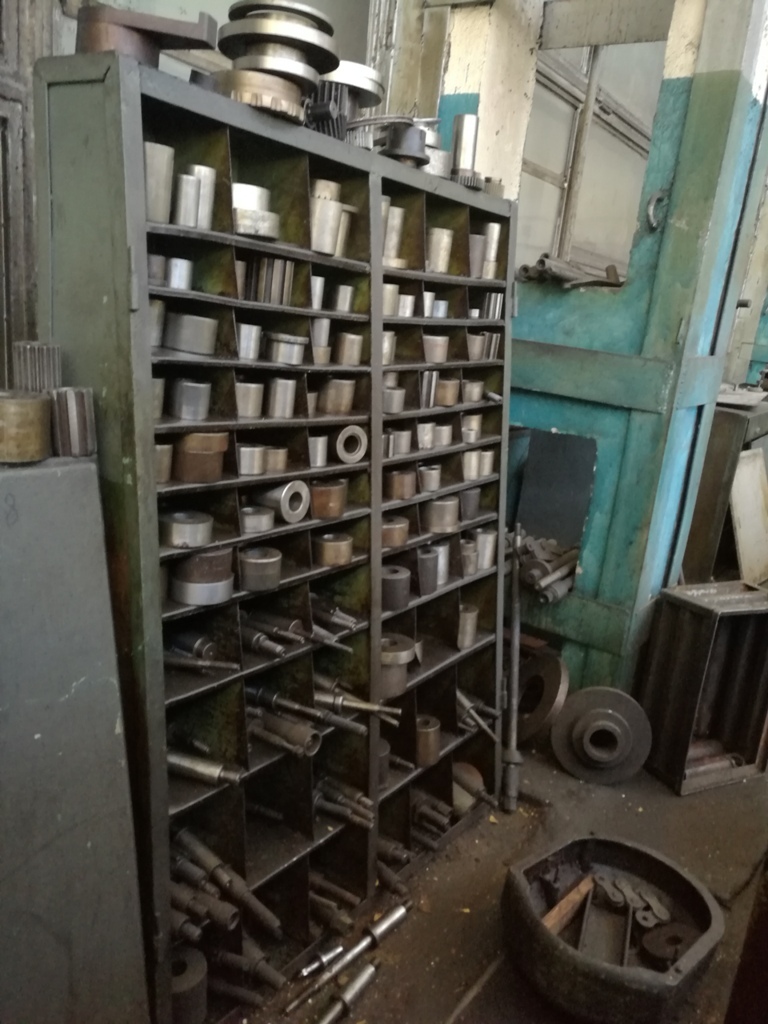

• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which cutters, fixtures and accessories are included, the condition of the electrics and hydraulics, and loading and shipping arrangements.
