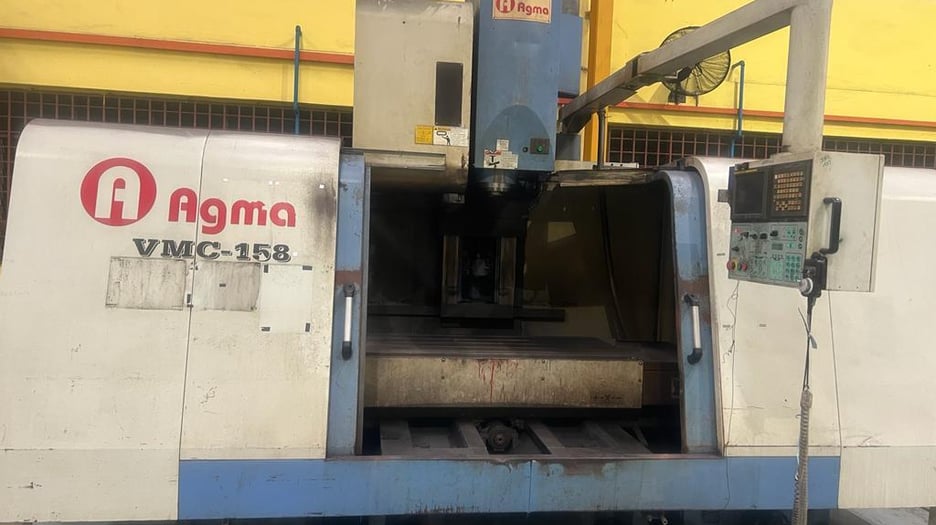

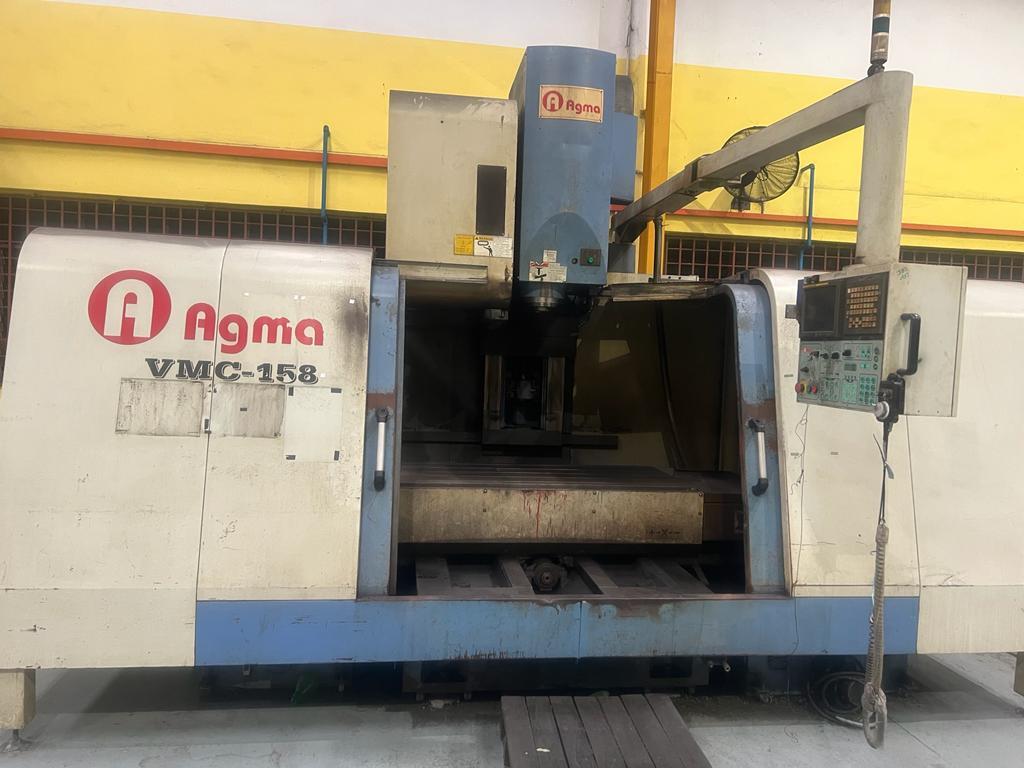

Used AGMA 158 CNC Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

This used AGMA 158 CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It is a vertical machining centre, which cuts metal parts with a rotating tool on a spindle above a table.

It has travels of 1,500 mm in X, 800 mm in Y and 700 mm in Z, with a 1,700 x 815 mm table that carries up to 2,000 kg. The Fanuc 21i MB control is fitted, along with a 32-position chain tool magazine, a 6,000 r/min two-stage gear spindle and an 18.5 kW drive.

Key Features

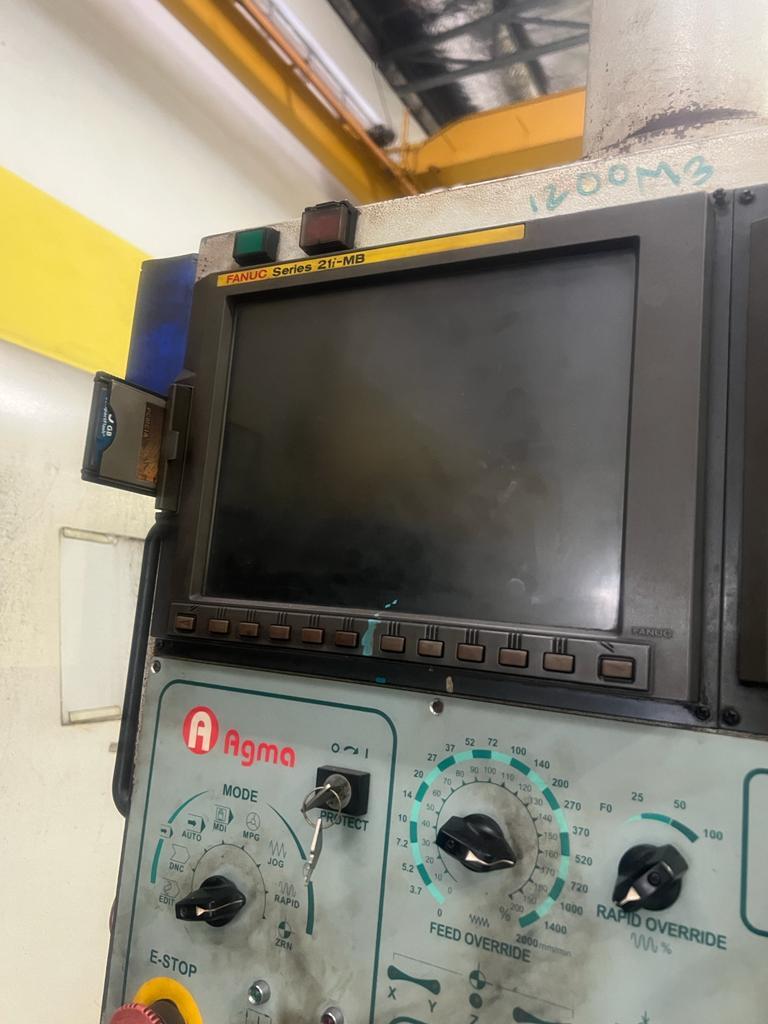

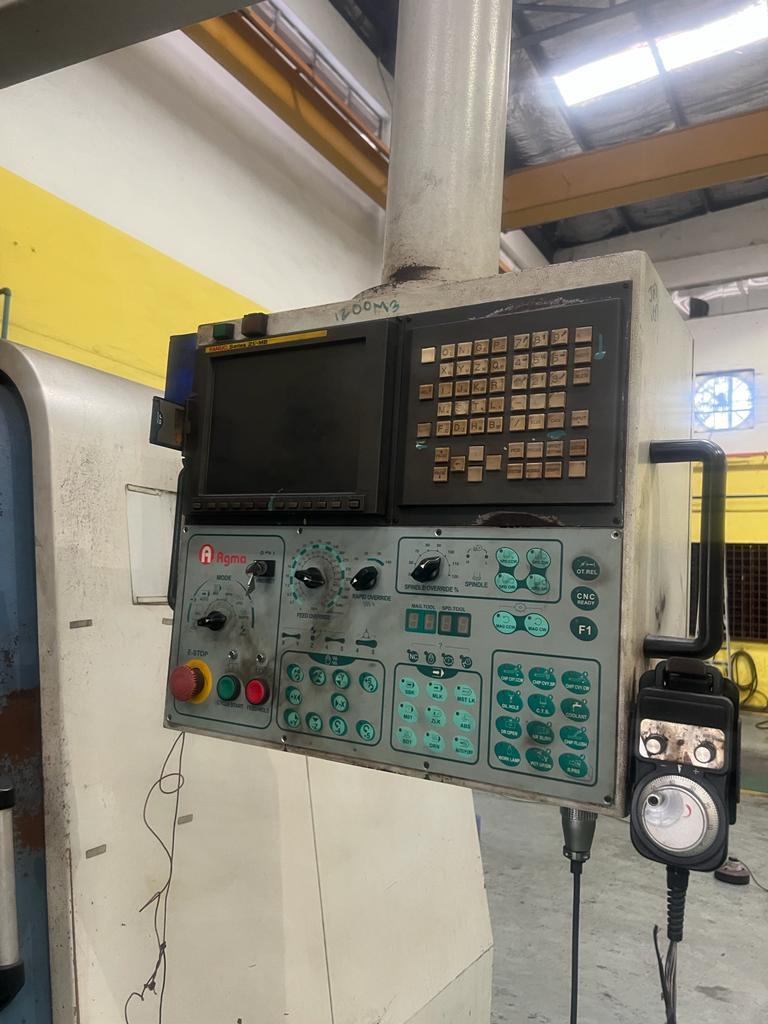

• Fanuc 21i MB CNC control
• 32-place chain-type automatic tool changer
• Internal coolant supply at 70 bar plus external coolant supply
• Chip conveyor with two screw sections and one hinge section
• Two-stage gear spindle drive

Technical Specifications

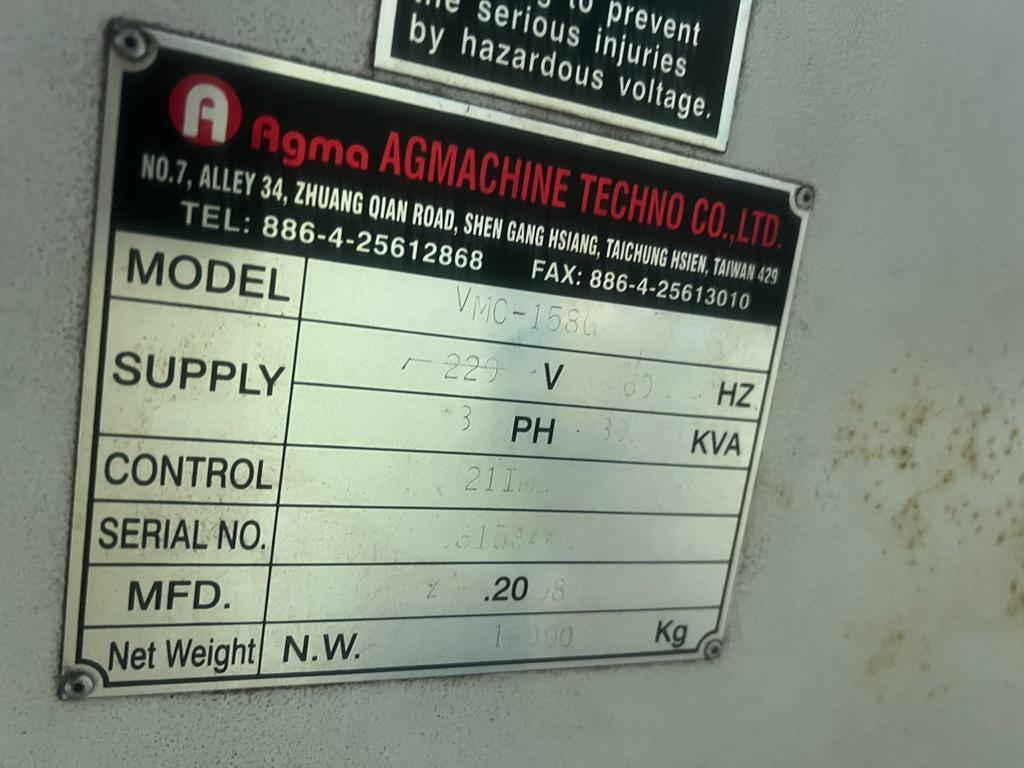

• Model: AGMA 158 CNC VMC
• Control: Fanuc 21i MB
• X travel: 1,500 mm
• Y travel: 800 mm
• Z travel: 700 mm
• Table size: 1,700 x 815 mm
• Table load: 2,000 kg
• T-slots: 5 slots, 18 mm wide, 150 mm spacing
• Spindle nose to table: 200–900 mm
• Spindle centre to Z guide: 855 mm
• Rapid traverse X / Y / Z: 15 / 15 / 12 m/min
• Maximum feed rate: 10,000 mm/min
• Tool taper: BAT 50

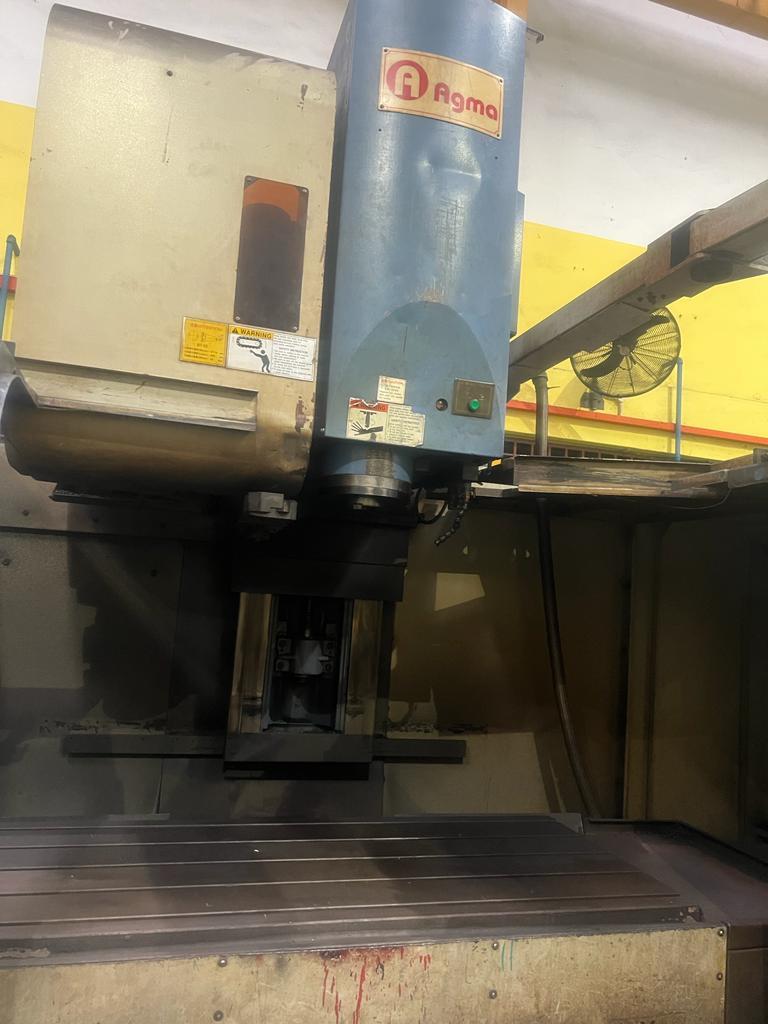

• Spindle speed: 6,000 r/min, 2-stage gear
• Power: 18.5 kW
• Internal coolant supply: 70 bar
• Tool magazine: 32-place chain ATC
• Maximum tool diameter: 130 / 250 mm
• Chip conveyor: 2 screw / 1 hinge
• Floor space L x W x H: 4,540 x 3,800 x 3,320 mm
• Weight: 15,000 kg

Applications

• Machining large metal components and plates
• Mould, die and tooling work
• Milling, drilling and tapping of engineering parts
• General job-shop and production machining

Commercial Details

• Make: AGMA
• Model: 158 CNC VMC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels? The travels are 1,500 mm in X, 800 mm in Y and 700 mm in Z.
• How many tools does the magazine hold? The chain-type automatic tool changer holds 32 tools.
• What control does it use? It is fitted with a Fanuc 21i MB CNC control.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the condition of the control and electrics, and loading and shipping arrangements for a machine weighing 15,000 kg.
