Used Awea AV 610 CNC Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

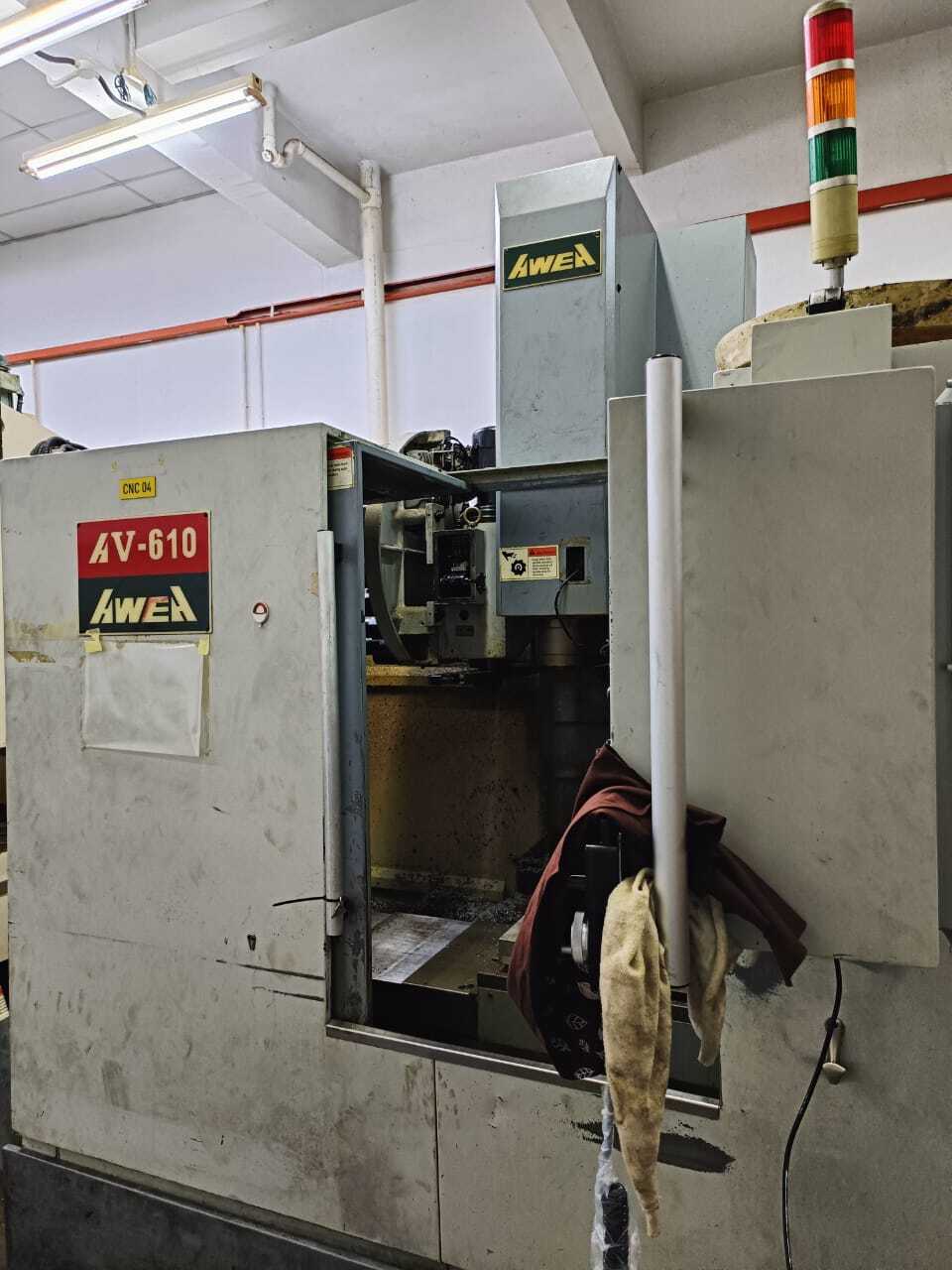

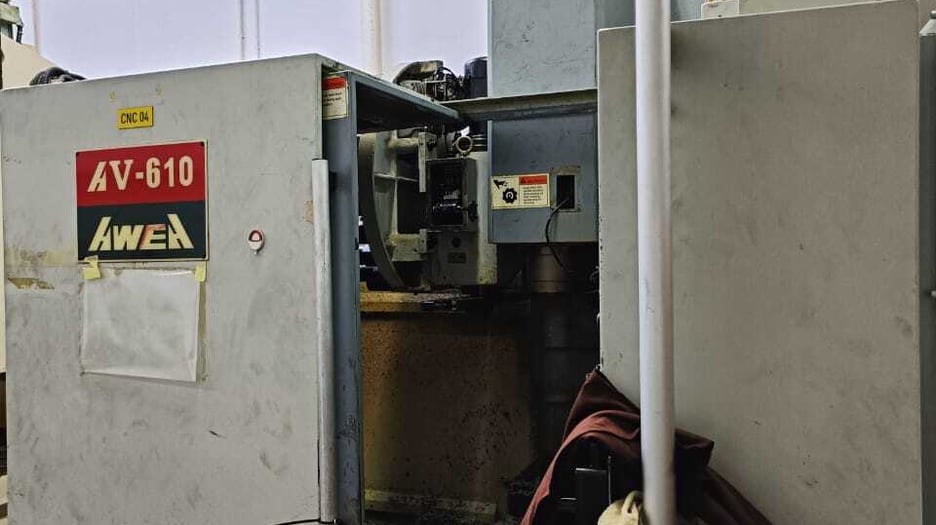

This used Awea AV 610 CNC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. A vertical machining centre cuts parts from solid material under CNC control.

It offers 610 mm of X-axis travel, 450 mm of Y-axis travel and 450 mm of Z-axis travel. The spindle runs at up to 10,000 RPM and the side-mount tool changer holds 24 tools. The table takes loads up to 450 kg.

Key Features

• 24-tool side-mount automatic tool changer
• 10,000 RPM spindle
• Rapid traverse of 32 m/min on X and Y axes and 24 m/min on the Z axis

Technical Specifications

• Model: Awea AV 610
• X-axis travel: 610 mm
• Y-axis travel: 450 mm
• Z-axis travel: 450 mm
• Spindle speed: 10,000 RPM
• Table size: 700 x 450
• Table load capacity: 450 kg
• Tool changer: 24-tool side-mount ATC
• Maximum tool length: 11.8
• Spindle nose to column: 560
• Spindle nose to table top: 150–600
• Cutting feed rate: 10 m/min (394 IPM)
• X/Y rapid feed rate: 32 m/min (1,260 IPM)
• Z rapid feed rate: 24 m/min (945 IPM)

Applications

• Machining of small to medium parts from solid stock
• Milling, drilling and tapping of components
• Mould, die and tooling work
• General engineering and job-shop machining

Commercial Details

• Make: Awea
• Model: AV 610
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels? The travels are 610 mm on X, 450 mm on Y and 450 mm on Z.
• How many tools does the tool changer hold? It is a side-mount automatic tool changer holding 24 tools.
• What is the maximum table load? The table load capacity is 450 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm the control system and electrics, the tooling and accessories included, and arrangements for loading and shipping.
