Used Bahmueller ASP 650 CNC Cylindrical Grinder | A.K. Machine Traders, Navi Mumbai, India

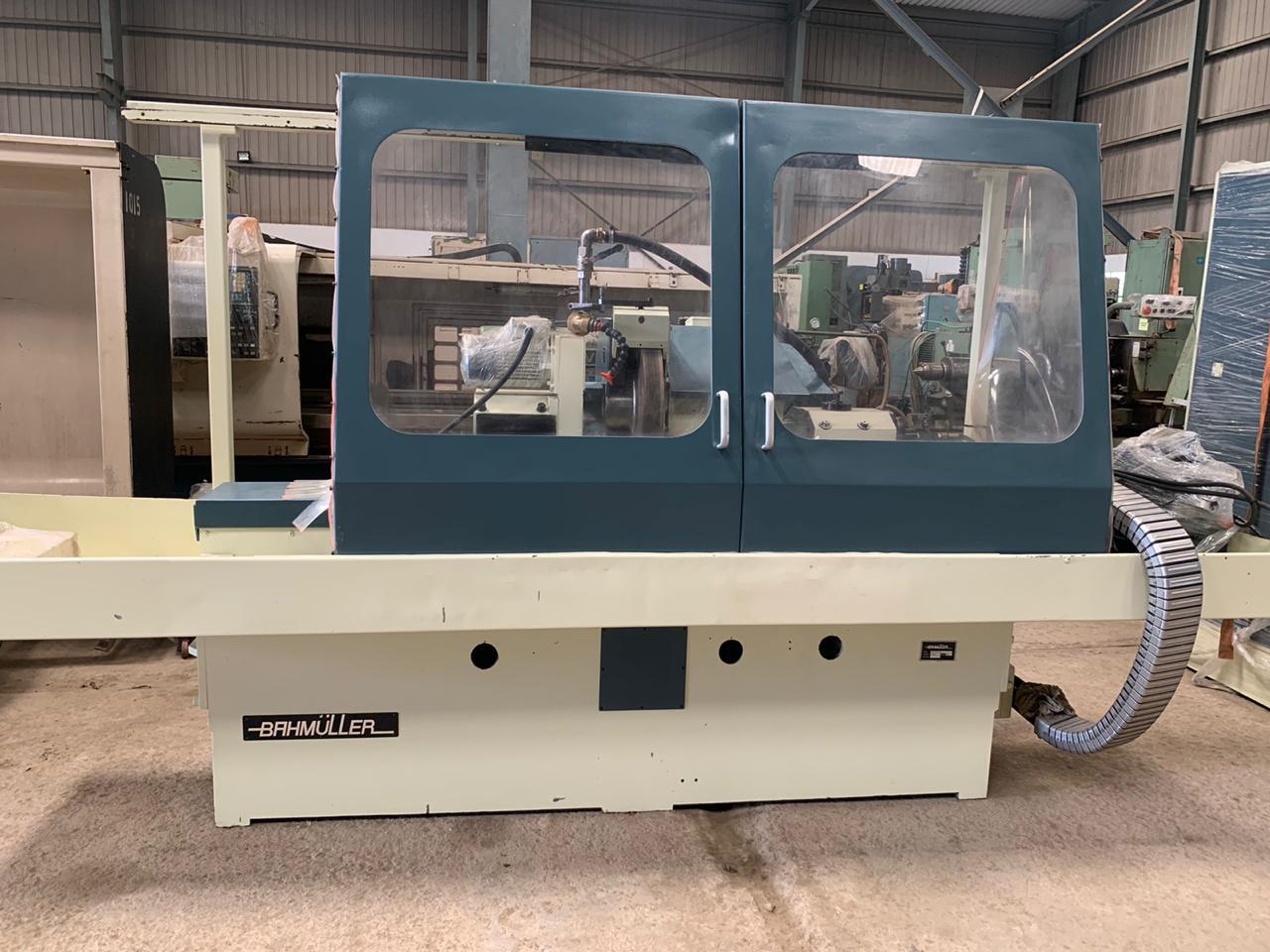

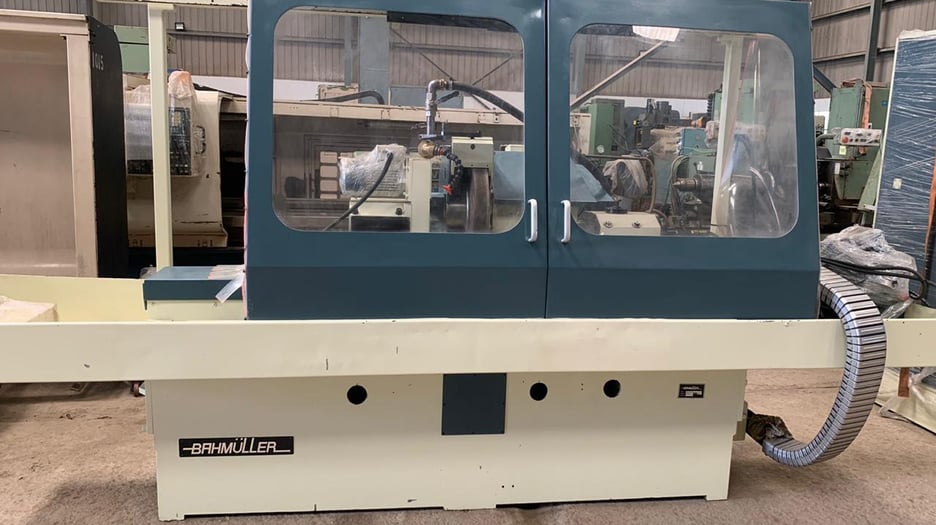

This used Bahmueller ASP 650 CNC cylindrical grinder is available from A.K. Machine Traders in Navi Mumbai, India. It grinds round workpieces held between centres, with a distance between centres of 650 mm and a maximum grinding length of 650 mm.

It is listed as CNC retrofitted in 2020 and is controlled by a Mitsubishi E80. The grinding wheel is 500 mm in diameter and driven by a 7.5 kW motor, and the workpiece headstock swivels from 0–90 degrees.

Key Features

• Mitsubishi E80 CNC control
• CNC retrofitted in 2020
• Upper table swivels 8 degrees
• Grinding head infeed angle of 0 or 30 degrees
• Workpiece headstock swivels 0–90 degrees

Technical Specifications

• Model: Bahmueller ASP 650
• Control: Mitsubishi E80
• Distance between centres: 650 mm
• Centre height: 125 mm
• Maximum grinding length: 650 mm
• Load between centres: max. 50 daN
• Maximum load: 3,000 Nm
• X-axis usable slide path: 230 mm
• X-axis speed: 0–6 m/min
• X-axis step increment: 0.0002 mm
• Infeed angle: 0 or 30 degrees
• Z-axis usable table travel: 880 mm
• Z-axis speed: 0–6 m/min
• Z-axis step increment: 0.00005 mm
• Display step: 0.001 mm
• Upper table swivel range: 8 degrees
• Grinding wheel diameter: 500 mm
• Grinding wheel bore: 203.2 mm
• Maximum wheel width: 80 mm
• Grinding wheel drive power: 7.5 kW
• Maximum peripheral speed: 45 m/sec
• Workpiece headstock swivel range: 0–90 degrees
• Workpiece headstock drive power: 1 kW
• Workpiece headstock speeds: 50–850 (stepless)
• Mounting cone: 4 MK
• Tailstock: 3 MK
• Quill cone: 30 mm
• Power requirement: 12 kW
• Weight: approx. 3,200 kg

Applications

• Grinding shafts and spindles between centres
• Finishing round parts to close tolerances
• Grinding tapered and stepped cylindrical components
• Toolroom and general engineering work

Commercial Details

• Make: Bahmueller
• Model: ASP 650
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum grinding length? The maximum grinding length is 650 mm, matching the 650 mm distance between centres.
• What control does it have? It has a Mitsubishi E80 CNC control and is listed as CNC retrofitted in 2020.
• What size grinding wheel does it take? The wheel is 500 mm in diameter with a 203.2 mm bore and a maximum width of 80 mm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which wheels, centres and accessories are included, the condition of the control and electrics, and loading and shipping arrangements for its approx. 3,200 kg weight.
