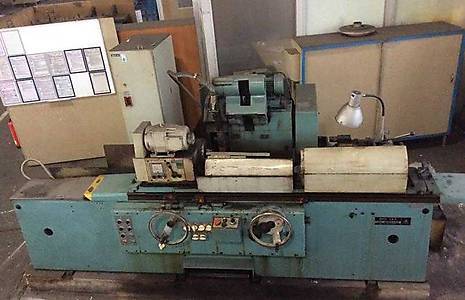

Used BHU 32/1000 Cylindrical Grinding Machine | A.K. Machine Traders, Navi Mumbai, India

This used BHU 32/1000 cylindrical grinding machine is available from A.K. Machine Traders in Navi Mumbai, India. It grinds the outer surfaces of round workpieces held between centres.

It takes workpieces up to 1,000 mm between centres and up to 250 kg in weight. The grinding wheel measures 500 x 203 x 80 mm, and the machine is driven by a 7.5 (12) kW motor.

Technical Specifications

• Model: BHU 32/1000
• Distance between centres: 1,000 mm
• Grinding wheel (diameter x hole x width): 500 x 203 x 80 mm
• Max. grinding wheel width: 200 mm
• Spindle taper: Morse 5
• Grinding spindle speed: 1230/1470 rpm
• Min. longitudinal table motion: 1 mm
• Cross motion of grinding spindle: 415 mm
• Motor output: 7.5 (12) kW
• Total input: 16 (20.5) kVA
• Max. workpiece weight between centres: 250 kg
• Machine length: 4,887 mm
• Machine width: 2,320 mm
• Machine weight: 5,300 kg

Applications

• Shafts and spindles
• Rollers and sleeves
• Pins and journals
• Round components in general engineering and toolroom work

Commercial Details

• Model: BHU 32/1000
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum workpiece length and weight? It has 1,000 mm between centres and takes workpieces up to 250 kg between centres.
• What size grinding wheel does it use? The wheel is 500 mm in diameter with a 203 mm hole and 80 mm width, and the maximum wheel width is 200 mm.
• How big and heavy is the machine? It is 4,887 mm long and 2,320 mm wide, and weighs 5,300 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which wheels, accessories and tooling are included, the condition of the control and electrics, and loading and shipping arrangements.
