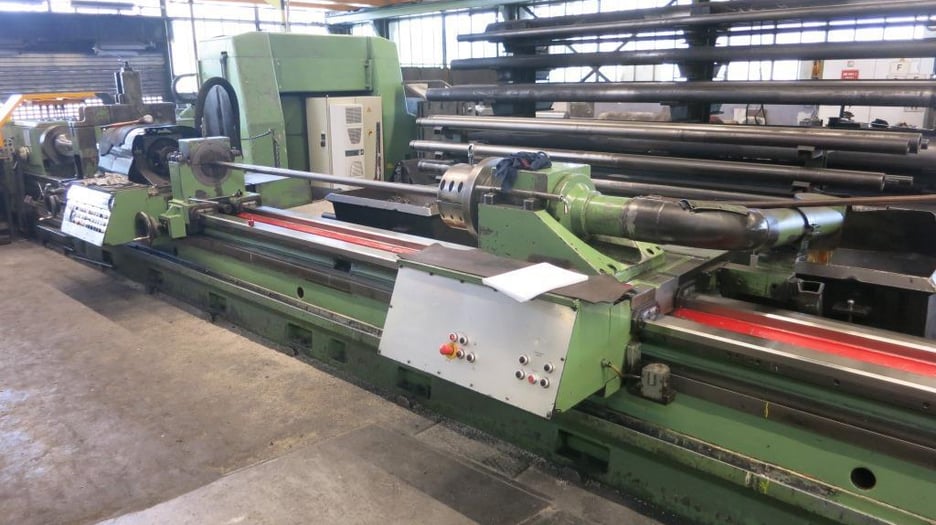

Used Boehringer 1747.0028-18 Deep Hole Borer | A.K. Machine Traders, Navi Mumbai, India

This used Boehringer 1747.0028-18 deep hole borer is available from A.K. Machine Traders in Navi Mumbai, India. A deep hole borer machines long, accurate bores in workpieces that are held and rotated on a bed.

It offers a maximum boring depth of 2,300 mm and a drilling depth of 4,000 mm in one stroke, on an 8,200 mm bed. Spindle speeds run from 35.5 to 1,800 rpm.

Technical Specifications

• Model: Boehringer 1747.0028-18
• Greatest pass round over bed: 660 mm
• Swing diameter over bed slide: 420 mm
• Maximum boring depth: 2,300 mm
• Drilling depth in one stroke: 4,000 mm
• Bed length: 8,200 mm
• Bed width: 450 mm
• Turning speeds: 35.5–1,800 rpm

Applications

• Long hydraulic cylinder barrels
• Long shafts and spindles with deep central bores
• Oil and gas drill collars and tubular components
• Heavy engineering and general machining of long bored parts

Commercial Details

• Make: Boehringer
• Model: 1747.0028-18
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum boring depth? The maximum boring depth is 2,300 mm, with a drilling depth of 4,000 mm in one stroke.
• What spindle speeds does it offer? Turning speeds range from 35.5 to 1,800 rpm.
• How large a workpiece can it swing? It passes 660 mm over the bed and swings 420 mm over the bed slide.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection can be arranged, which tooling and accessories are included, the condition of the control and electrics, and how loading and shipping will be handled.
