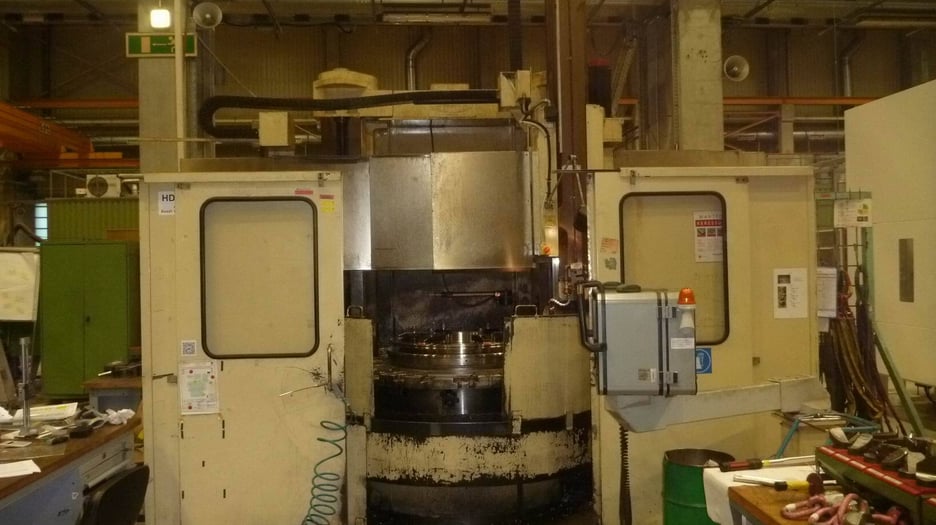

Used Bullard Dynatrol 56 CNC Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

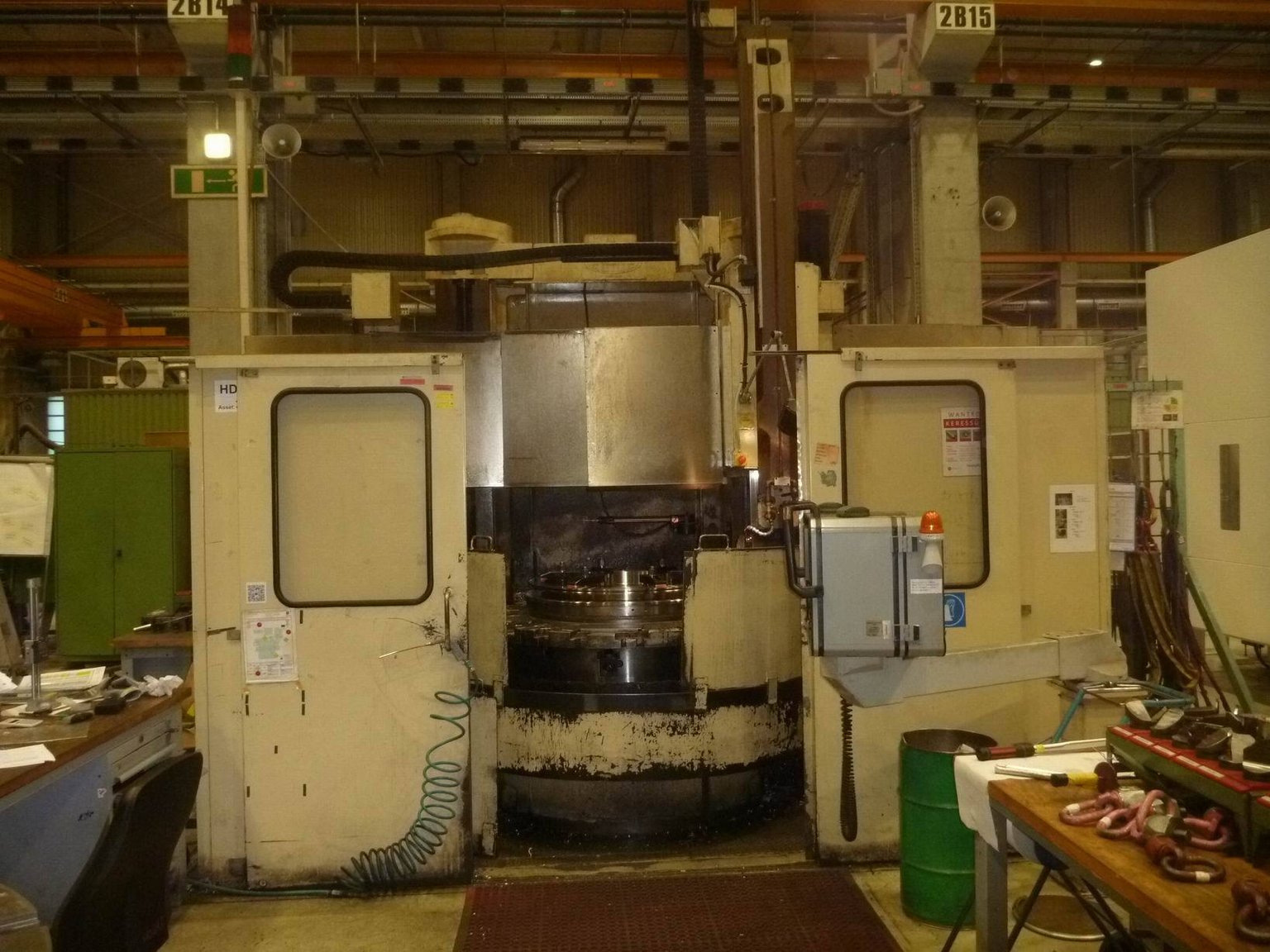

This used Bullard Dynatrol 56 CNC vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. A vertical turret lathe turns large, heavy workpieces on a horizontal rotating table.

It has a 56 inch (1,422 mm) table, a single head and a Fanuc Series 15-T control. It takes workpieces up to 900 mm high and has a maximum swing of approximately 1,800 mm. Tooling is held in Capto 6 clamps, and a Renishaw touch probe is fitted for tool usage measuring.

The machine has no C axis and no driven tools, so it is set up for conventional turning work.

Key Features

• Renishaw tool usage measuring touch probe
• Capto 6 tool clamping, plus-shaped, 290 × 270 mm
• Single head
• Control panel on a 1,600 mm arm at the right front of the machine
• Simple to operate

Technical Specifications

• Make and model: Bullard Dynatrol 56
• Control: Fanuc Series 15-T
• Table diameter: 56 inch (1,422 mm)
• Maximum swing: Approx. 1,800 mm
• Table axis to column: 900 mm
• Maximum workpiece height: 900 mm
• Heads: 1
• Tool clamping: Capto 6, plus shape, 290 × 270 mm
• C axis / driven tools: None
• Probe: Renishaw tool usage measuring / touch probe
• Working hours: 28,000
• Required floor area: 5,000 mm wide × 5,500 mm deep, plus control panel arm of 1,600 mm at right front

Applications

• Turning large, heavy round components
• Machining wheels, flanges and discs
• Machining rings, housings and casings
• General heavy engineering and job-shop turning

Commercial Details

• Make: Bullard
• Model: Dynatrol 56
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it take? It has a 1,422 mm (56 inch) table, a maximum swing of approximately 1,800 mm and takes workpieces up to 900 mm high.
• What control does it use? It uses a Fanuc Series 15-T CNC control.
• Does it have a C axis or driven tools? No, it has neither a C axis nor driven tools.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection can be arranged. Confirm the accuracy, the condition of the Fanuc control and electrics, which tooling and Capto holders are included, and the loading and shipping arrangements.
