Used Butler CS10 Elgamill Manual Bed Milling Machine | A.K. Machine Traders, Navi Mumbai, India

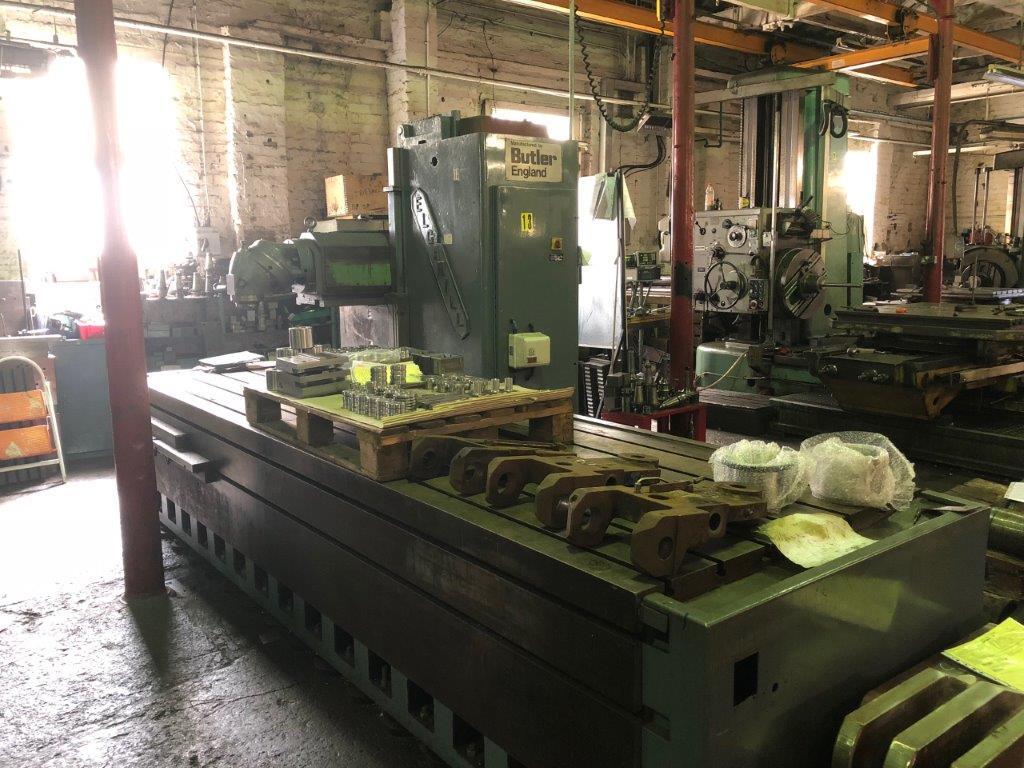

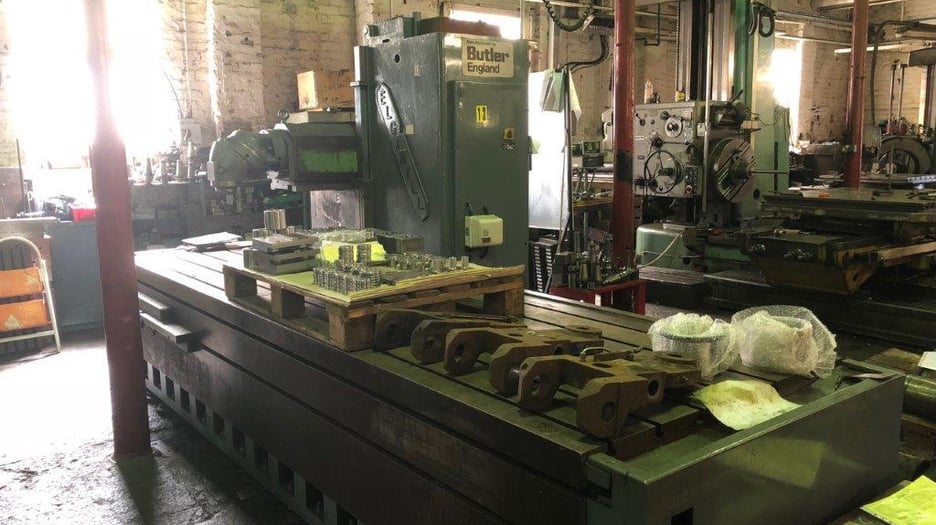

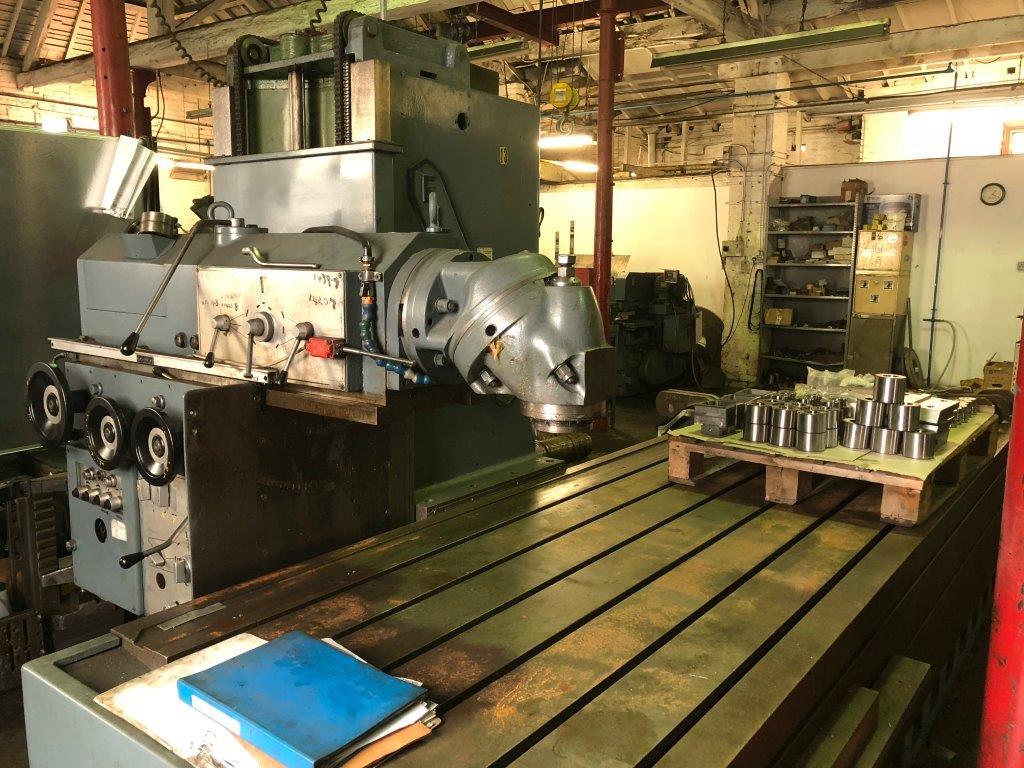

This used Butler Model CS10 Elgamill manual bed milling machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a bed-type mill with a 4,030 mm x 1,030 mm table, suited to long and heavy workpieces.

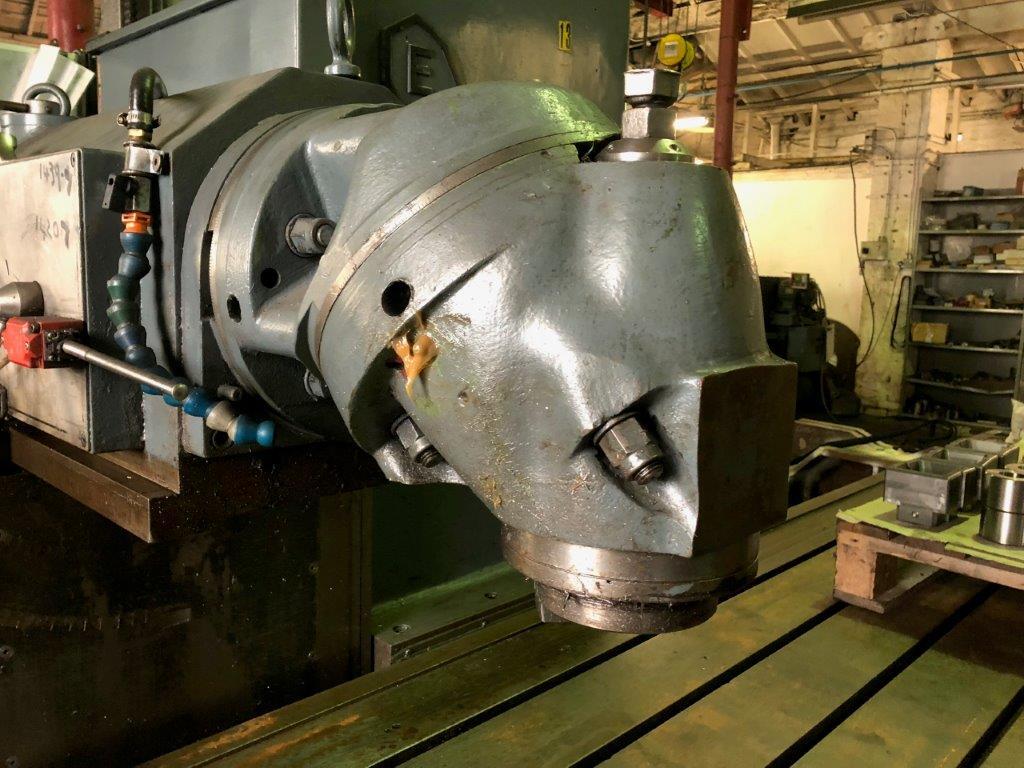

The column traverses 2,200 mm along the bed and the ram travels 900 mm. The spindle runs at 30–2,080 rpm and has a 50 INT taper. A double swivel universal milling head and a digital readout (DRO) are fitted.

Key Features

• Double swivel universal milling head

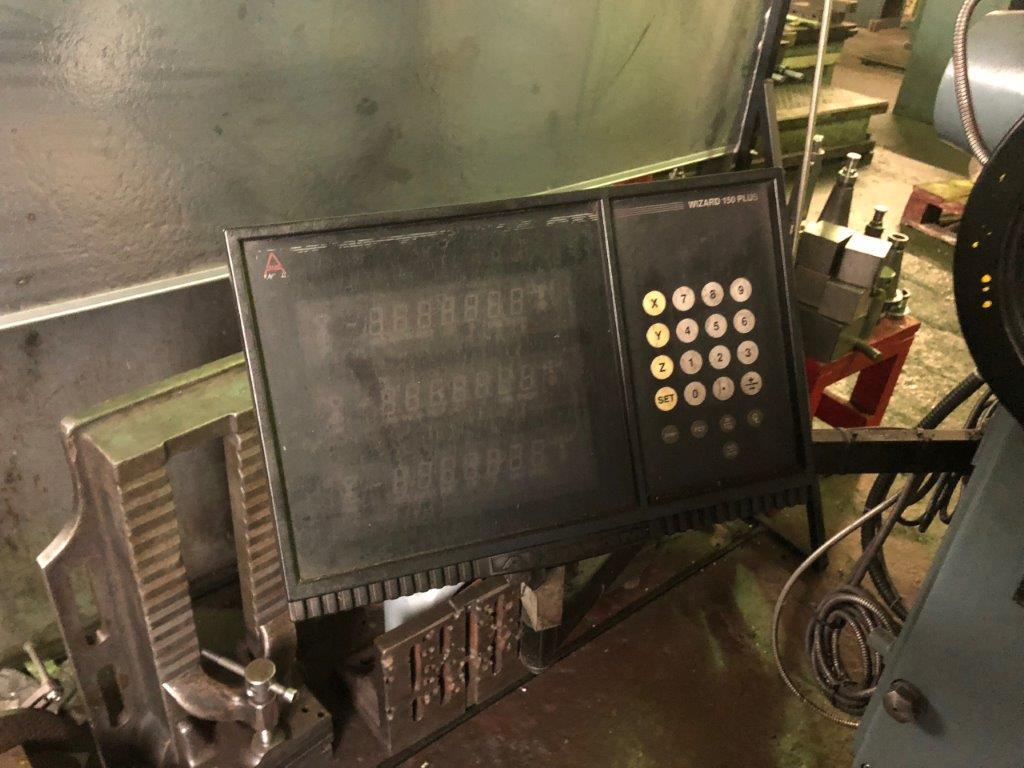

• Digital readout (DRO) fitted
• Manually operated bed-type design

Technical Specifications

• Make: Butler
• Model: CS10 Elgamill
• Type: Manual bed milling machine
• Table size: 4,030 mm x 1,030 mm
• Longitudinal traverse (column): 2,200 mm
• Ram travel: 900 mm
• Spindle speeds: 30–2,080 rpm
• Spindle taper: 50 INT

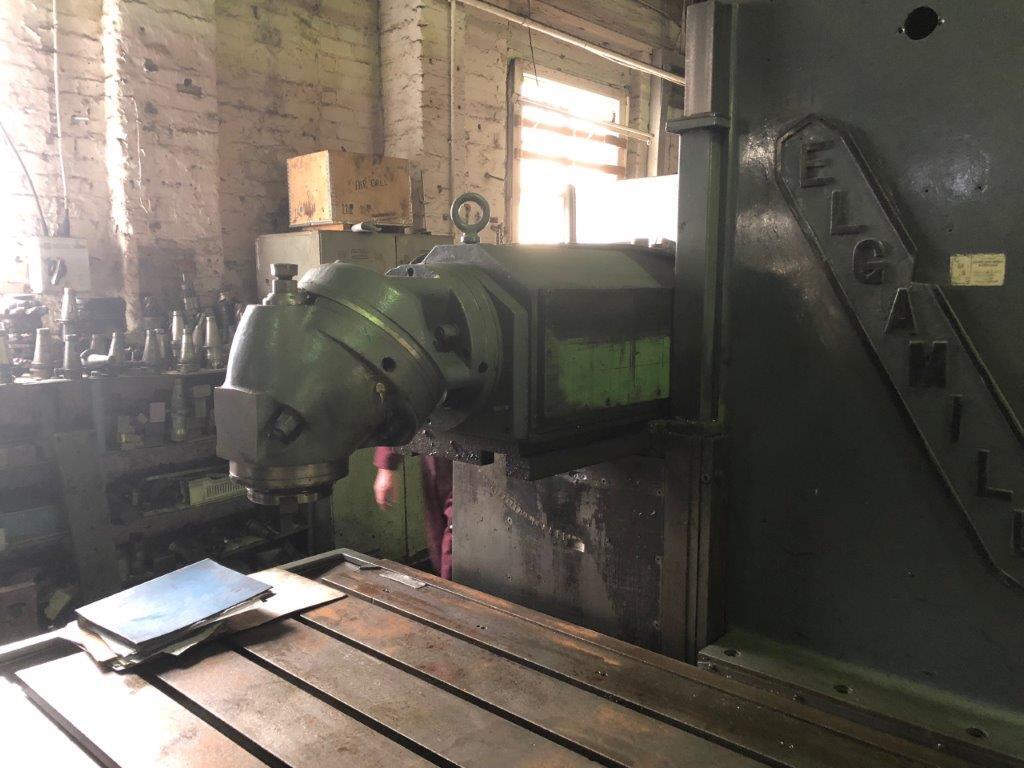

• Milling head: Double swivel universal
• Readout: DRO

Applications

• Milling large and long fabricated components
• Machining heavy machine bases and frames
• Face and profile milling of large plates and castings
• General heavy engineering and toolroom work

Commercial Details

• Make: Butler
• Model: CS10 Elgamill
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size? The table measures 4,030 mm x 1,030 mm.
• What spindle speeds and taper does it have? The spindle runs at 30–2,080 rpm and has a 50 INT taper.
• Does it have a digital readout? Yes, it is fitted with a DRO.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories, milling heads and tooling are included, the condition of the DRO and electrics, and loading and shipping arrangements.
