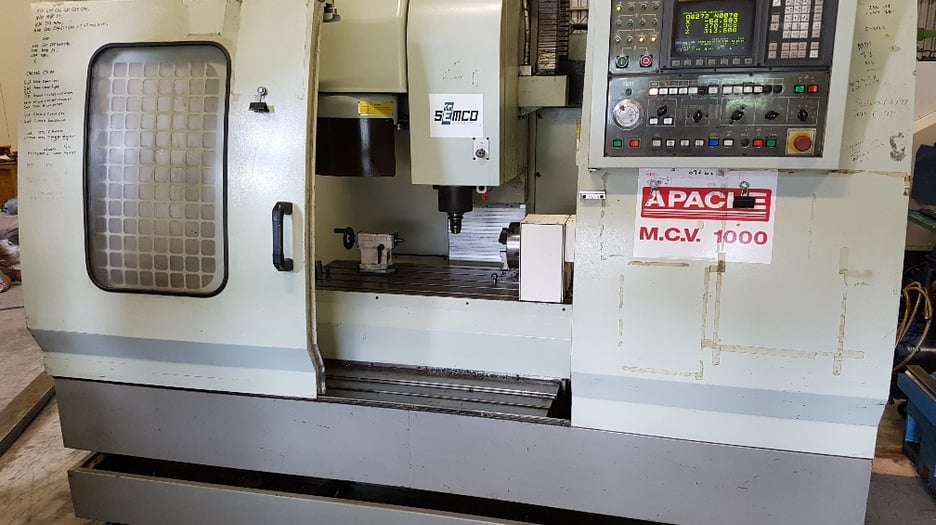

Used Centro FIRST MCV 1000 Vertical Machining Center | A.K. Machine Traders, Navi Mumbai, India

This used Centro FIRST MCV 1000 vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. A vertical machining centre cuts metal parts with a rotating tool held in a vertical spindle.

It is a 4-axis machine with a Fanuc 0-MD CNC control. Travels are 1,020 mm in X, 510 mm in Y and 510 mm in Z, and the table takes loads of up to 800 kg. The spindle has an ISO 40 connection, a 10 kW motor and a speed range of 120–8,000 rpm.

Key Features

4-axis configuration
Fanuc 0-MD CNC control
T-slotted table for workholding

Technical Specifications

Model: FIRST MCV 1000
Axes: 4
Control: Fanuc 0-MD CNC
Table support surface: 1,150 x 500 mm
T-slots: 5 x 18 x 100 mm
Table capacity: Up to 800 kg
X travel: 1,020 mm
Y travel: 510 mm
Z travel: 510 mm
Rapid feed X/Y/Z: 20/20/18 m/min
Table to spindle distance: 100–610 mm
Spindle connection: ISO 40
Spindle motor: 10 kW
Spindle speed: 120–8,000 rpm
Spindle torque: 190 Nm
Weight: 5,000 kg
Overall dimensions: 3,000 x 2,800 mm

Applications

Machining of mould and die components
Milling, drilling and tapping of steel and cast iron parts
Prototype and small-batch production parts
General engineering and job-shop components

Commercial Details

Make: Centro
Model: FIRST MCV 1000
Condition: Used
Location: Navi Mumbai, Maharashtra, India
Seller: A.K. Machine Traders

Frequently Asked Questions

What control does it have? It has a Fanuc 0-MD CNC control.
What are the axis travels? Travels are 1,020 mm in X, 510 mm in Y and 510 mm in Z.
How much can the table carry? The table capacity is up to 800 kg on a 1,150 x 500 mm support surface.
What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection can be arranged, which accessories, tooling and the fourth-axis unit are included, the condition of the control and electrics, and how loading and shipping will be handled.
