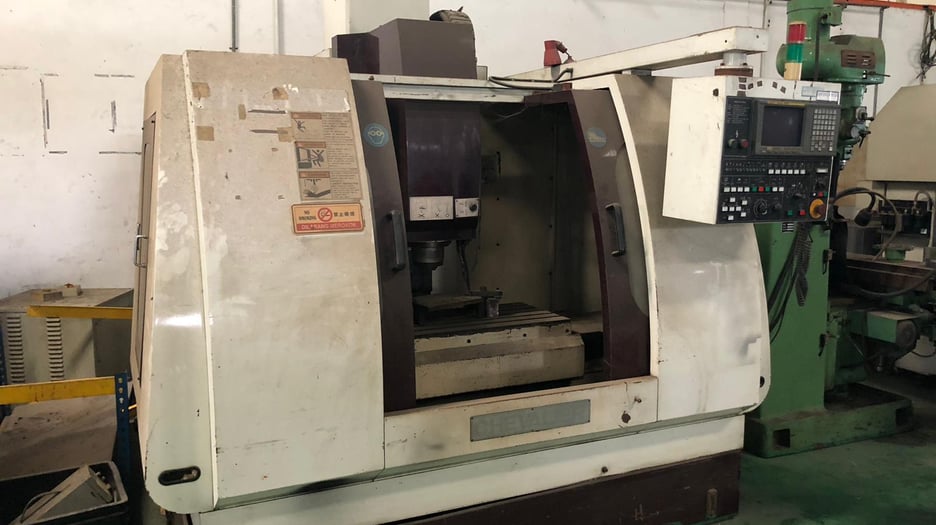

Used Chevalier 2033 VMC Vertical Machining Centre | A.K. Machine Traders, Navi Mumbai, India

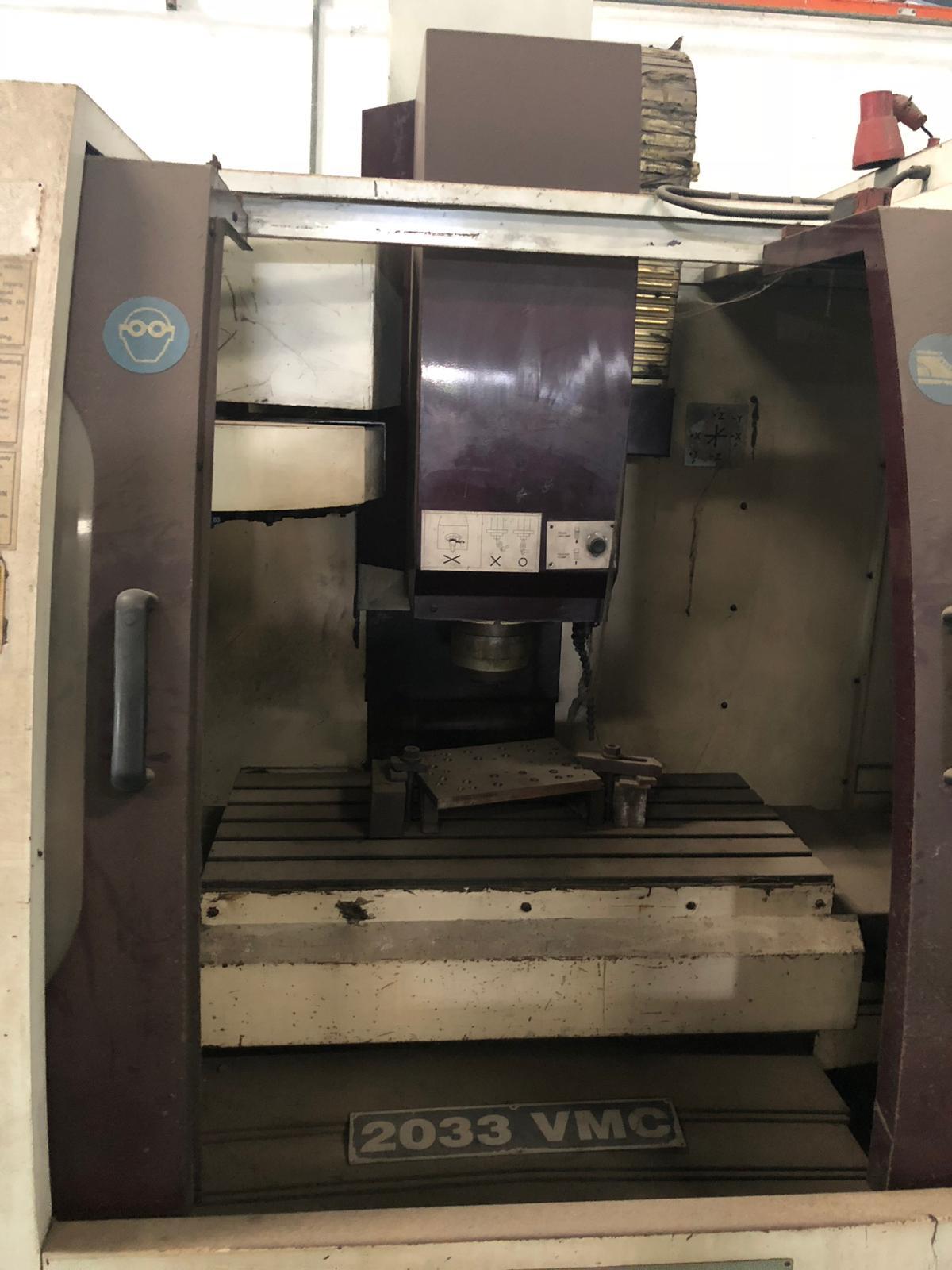

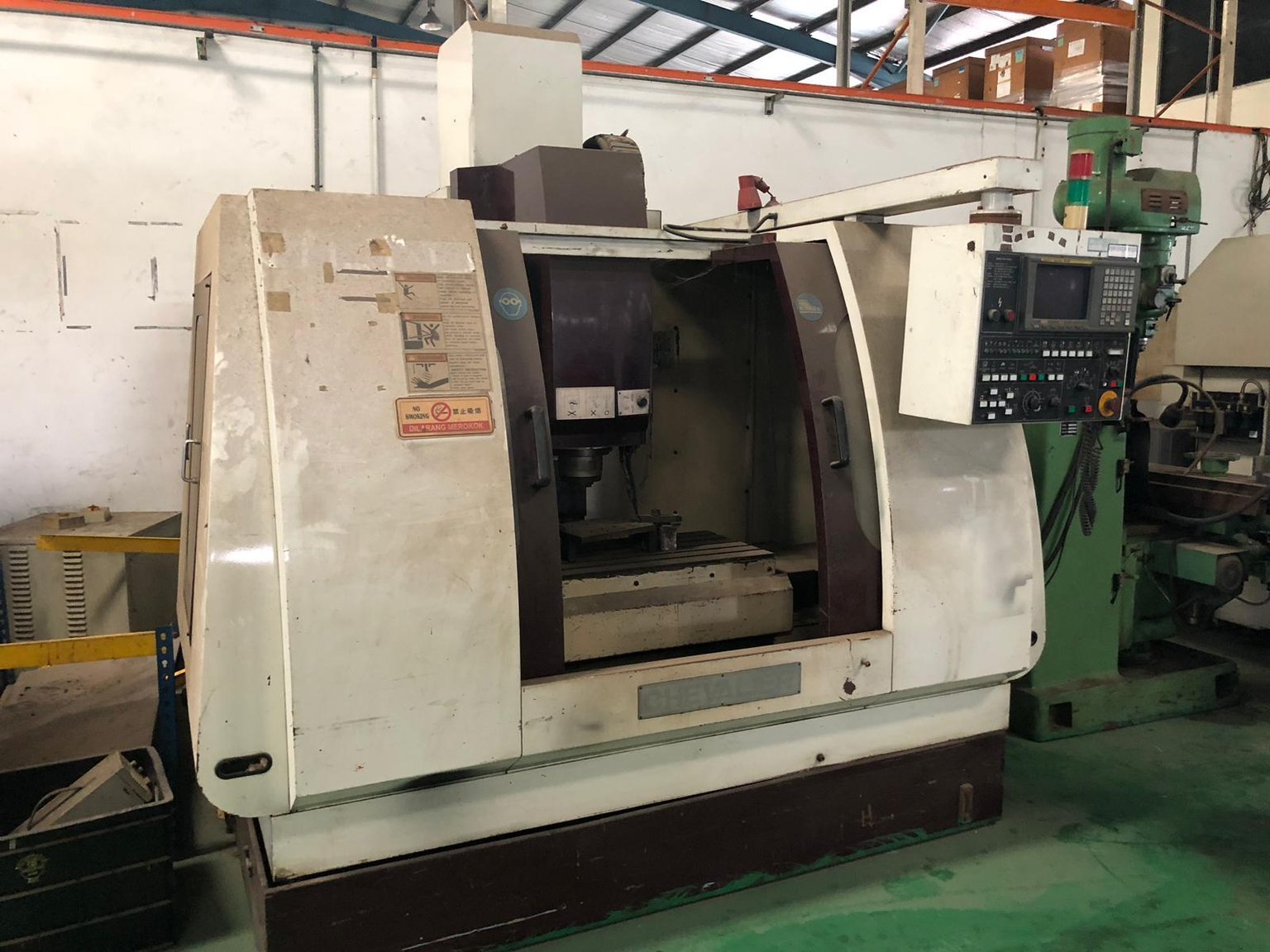

This used Chevalier 2033 VMC vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. It cuts and drills metal parts clamped on its table, with the spindle working from above.

It offers 850 mm of X travel, 500 mm of Y travel and 500 mm of Z travel. The table measures 1,000 x 450 mm and carries up to 500 kg. A 7.5 kW spindle turns at 60–6,000 rpm, and a 20-position tool changer takes SK 40 tool holders. Control is Fanuc 18M.

Key Features

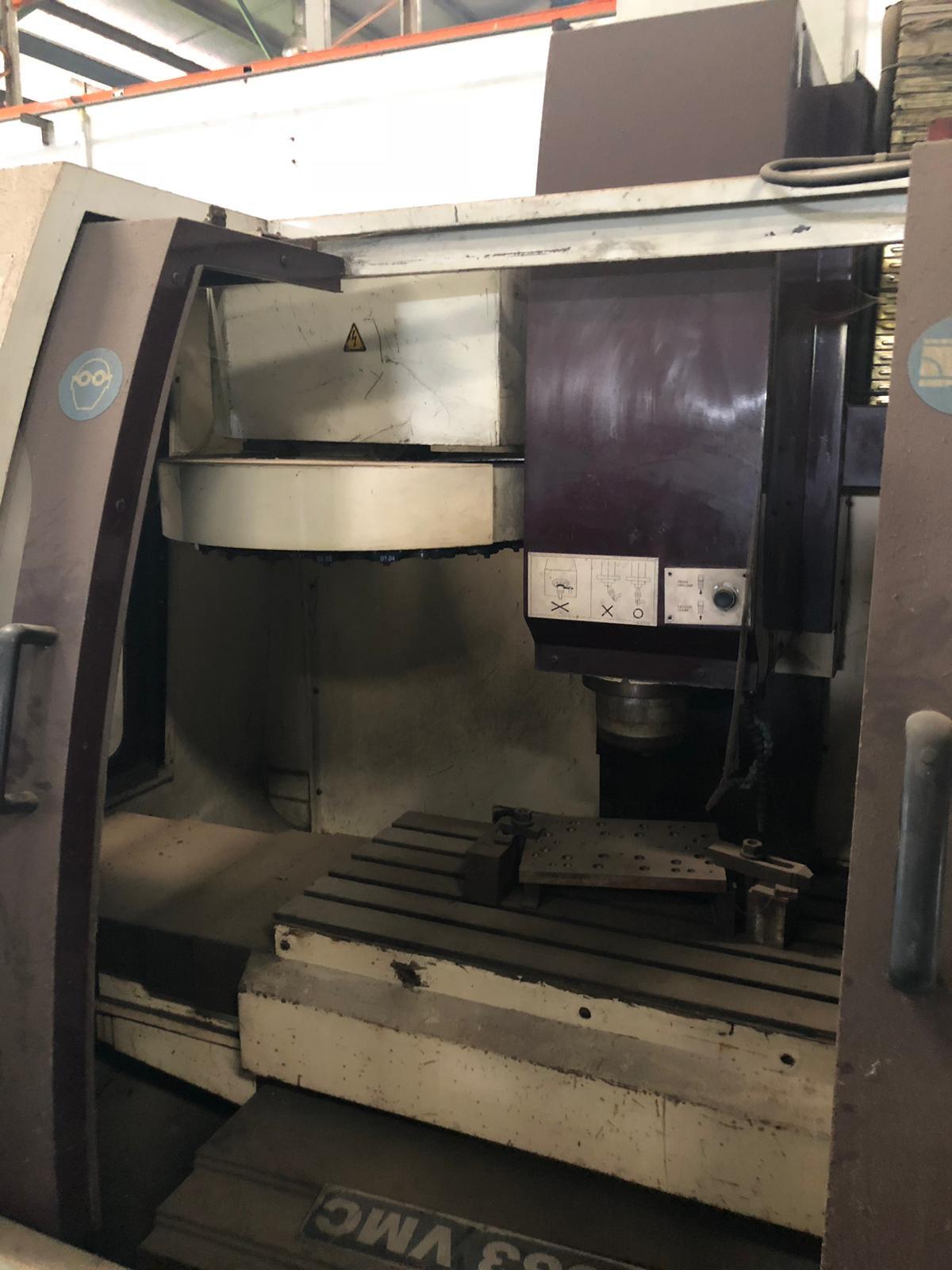

• 20-position automatic tool changer
• SK 40 tool adaptor
• Fanuc 18M control

Technical Specifications

• Model: Chevalier 2033 VMC
• X-axis travel: 850 mm
• Y-axis travel: 500 mm
• Z-axis travel: 500 mm
• Table surface area: 1,000 x 450 mm
• Table load: 500 kg
• Spindle speed: 60–6,000 rpm
• Spindle power: 7.5 kW
• Tool changer capacity: 20 tools
• Tool adaptor: SK 40

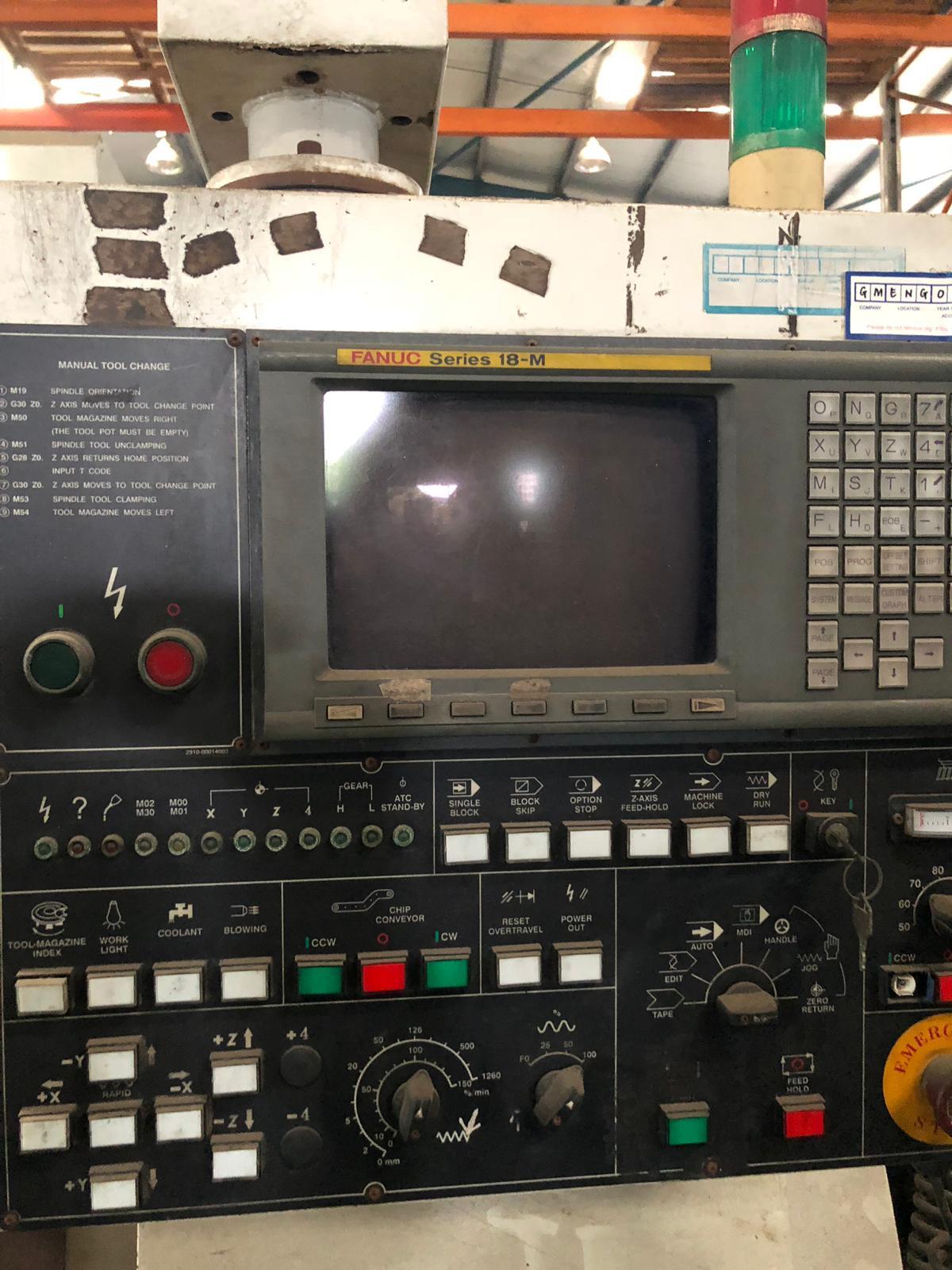

• Control: Fanuc 18M
• Total power requirement: 15 kVA
• Machine dimensions: approx. 2.8 x 2.8 x 2.7 m
• Machine weight: approx. 4.5 t

Applications

• Machining of metal components in workshops and tool rooms
• Milling and drilling of plates, housings and brackets
• Mould, die and fixture work within the table size
• Batch and prototype parts production

Commercial Details

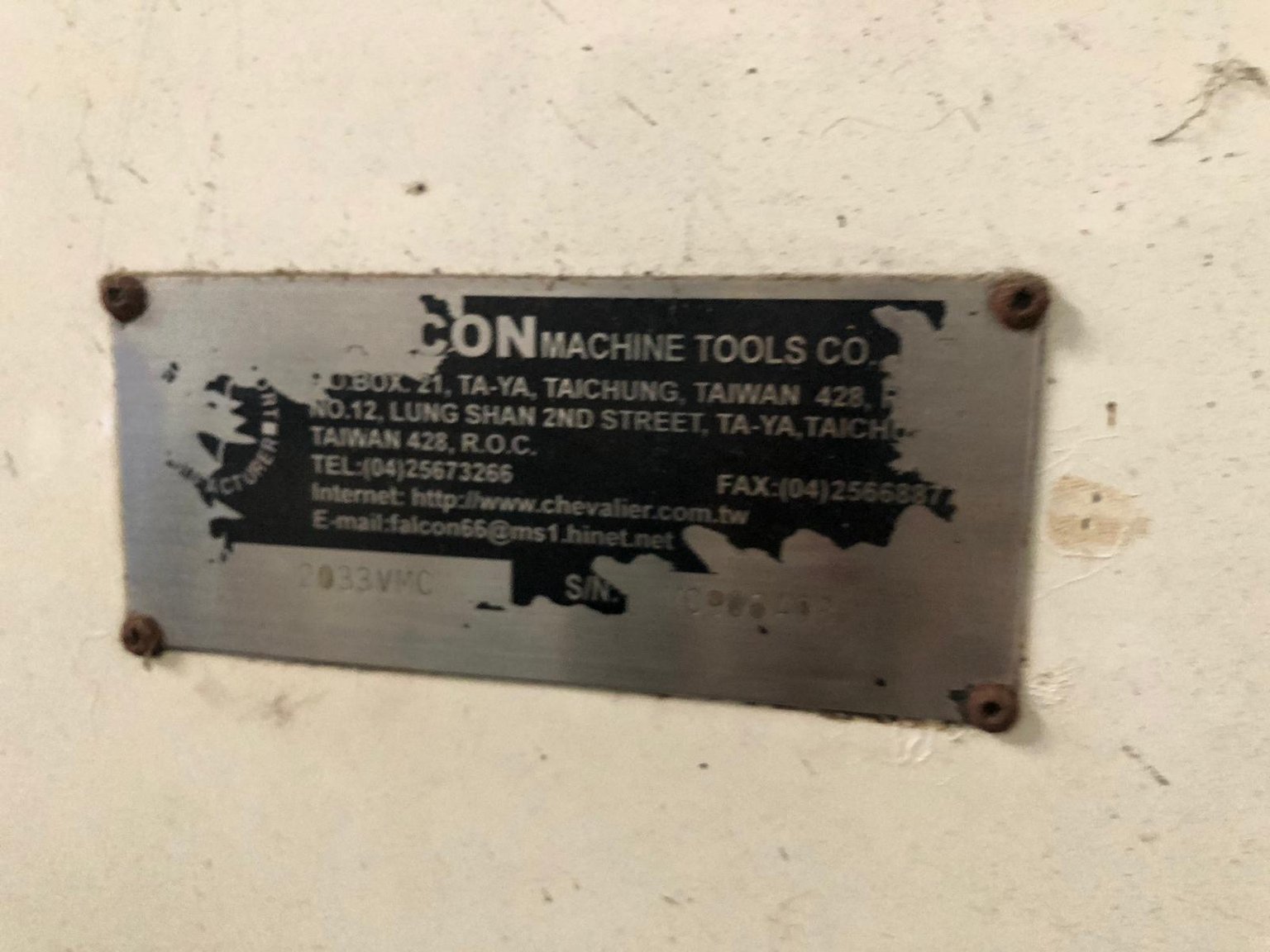

• Make: Chevalier
• Model: 2033 VMC
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the working travel of this machine? It has 850 mm in X, 500 mm in Y and 500 mm in Z.
• What control and tool changer does it have? It has a Fanuc 18M control and a 20-position tool changer with SK 40 tool adaptors.
• What are the table size and load capacity? The table surface is 1,000 x 450 mm and it carries up to 500 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, tool holders and accessories are included, the condition of the Fanuc 18M control and electrics, and the loading and shipping arrangements.
