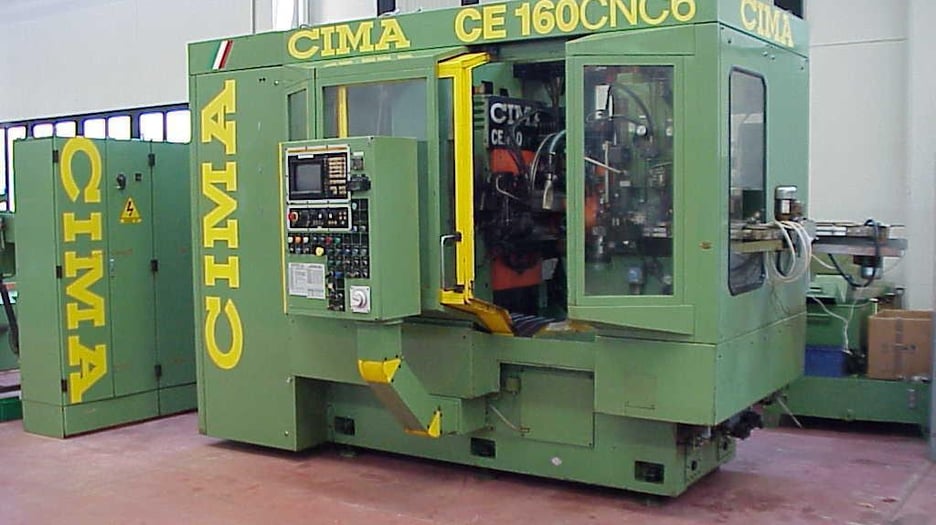

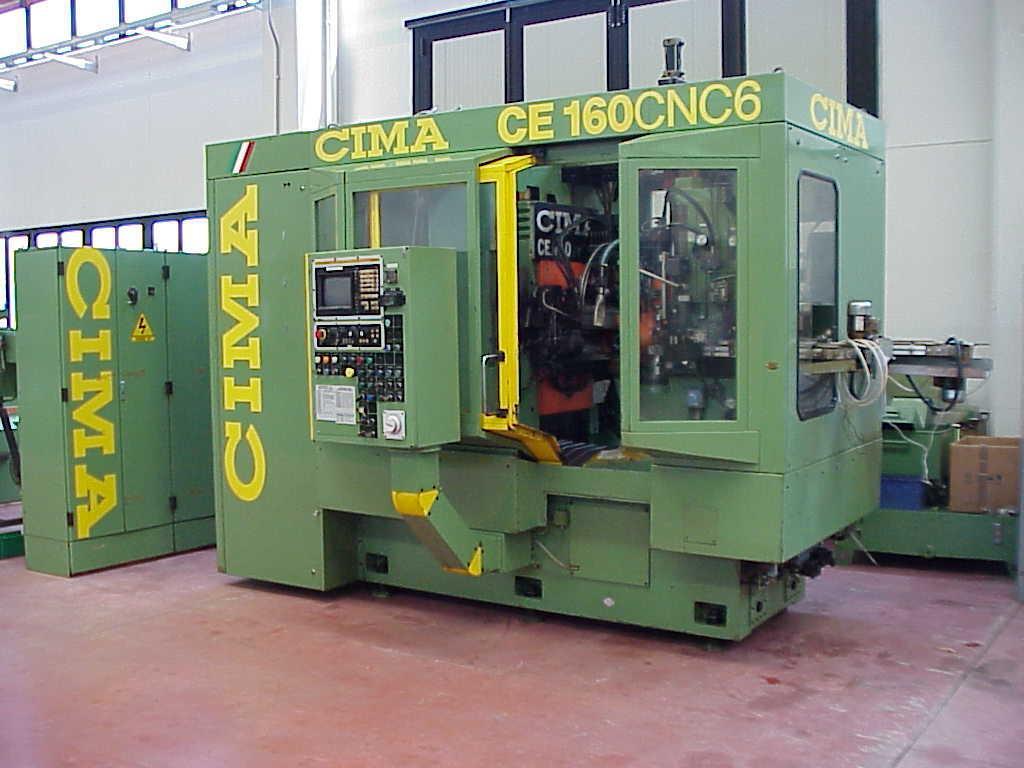

Used CIMA CE 160 CNC 6 CNC Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used CIMA CE 160 CNC 6 CNC gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts teeth into gear blanks.

It handles workpieces up to 160 mm in diameter, module 0–4, with a face width of up to 250 mm and helix angles of ±45°. Control is by Siemens CNC.

Key Features

• Siemens CNC control

Technical Specifications

• Model: CIMA CE 160 CNC 6
• Control: Siemens CNC
• Max workpiece diameter: 160 mm
• Module range: 0–4
• Table diameter: 160 mm
• Max face width: 250 mm
• Helix angle: ±45°
• Approx. dimensions (L x W x H): 6 x 3 x 2.8 m

Applications

• Spur and helical gears for machinery and gearboxes
• Small-to-medium gears up to module 4
• Gear shafts and pinions within the 250 mm face width

Commercial Details

• Make: CIMA
• Model: CE 160 CNC 6
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size gears can it cut? It cuts workpieces up to 160 mm in diameter, module 0–4, with a maximum face width of 250 mm.
• Can it cut helical gears? Yes, it handles helix angles of ±45°.
• What control does it use? It has a Siemens CNC control.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, inspection arrangements, which hobbing arbors, fixtures and tooling are included, the condition of the Siemens control and electrics, and loading and shipping details.
